Freshwater supply hose to the pump
Inlet opening (26) for the freshwater supply hose
Hose connection (24) of the freshwater can
with wastewater recycling (chap. 21.9.3)

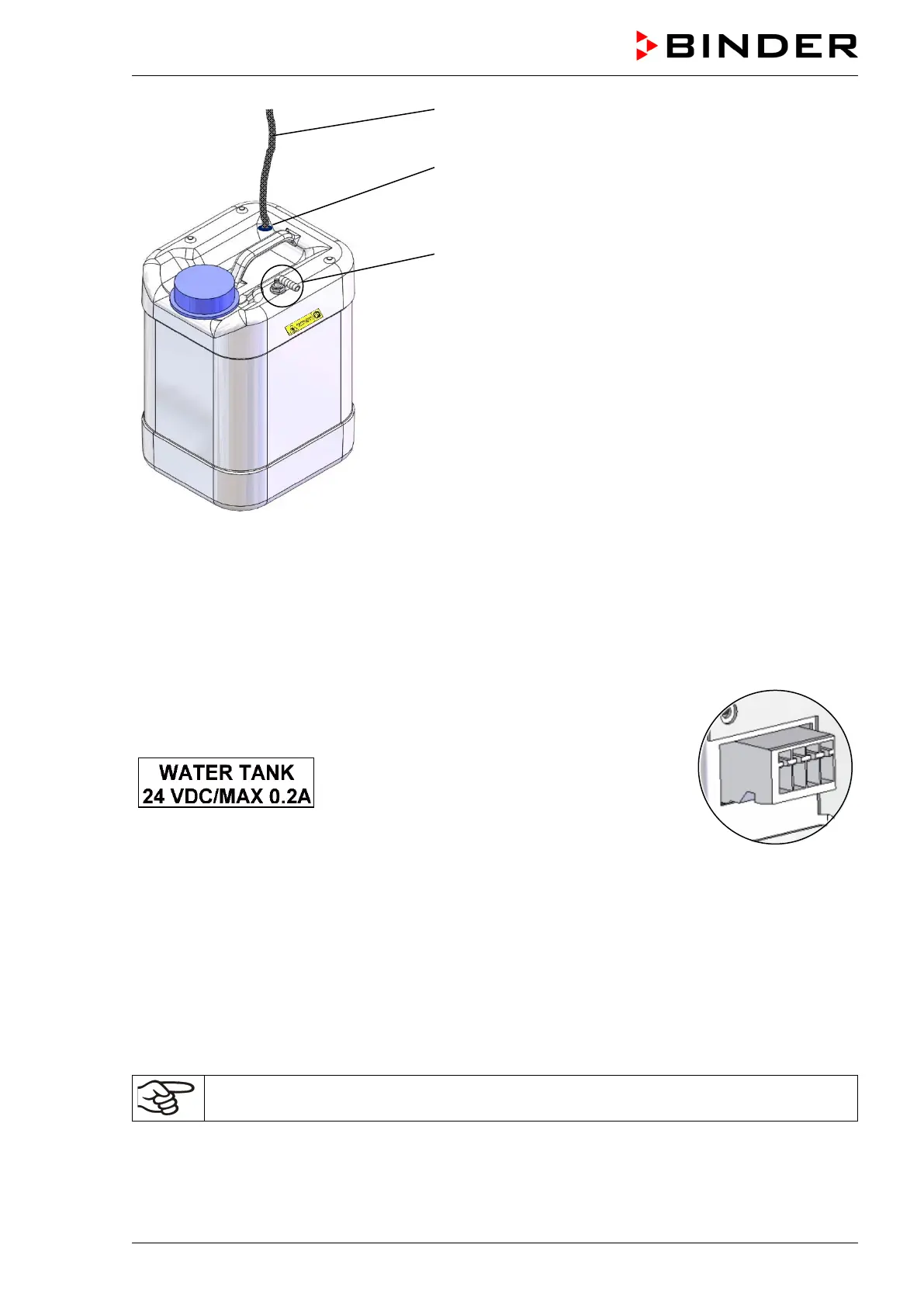

Figure 25: Freshwater can
Hose between the pump and the freshwater can
The freshwater supply hose is located at the bottom of the pump. Lead it through the inlet opening (26) into
the freshwater can. The end of the hose must be placed at the bottom of the can.
Cable connection between the pump and the climatic chamber
Connect the cable plug from the cable connection (21) on the pump to the socket
(18) at the rear of the chamber.
The socket (18) is marked with a sticker:
Socket (18)
Hose connections between the pump and the climatic chamber
Plug the freshwater hose into the hose connection (22) on the pump and secure it with a hose clamp. You
can use a part of the standard supplied water hose.
Screw the hose nozzle (brass) to the free edge of the hose and screw it directly onto the freshwater con-
nection “IN” (15) at the rear of the chamber.
When the freshwater can is empty, the message “Freshwater supply” will be displayed on the controller
(chap. 11.1.3), the buzzer sounds, and the humidification module turns off. After acknowledging the alarm,
the humidification module tries to fill up and start operating.
To guarantee humidification during 24 hours even at high humidity set-points with manual
water supply, we recommend filling the freshwater can (option) at the end of each day.
