MKF / MKFT (E5) 04/2022 page 25/176
(15)
(14)
(12)
(19)
(20)
(16)
(17)

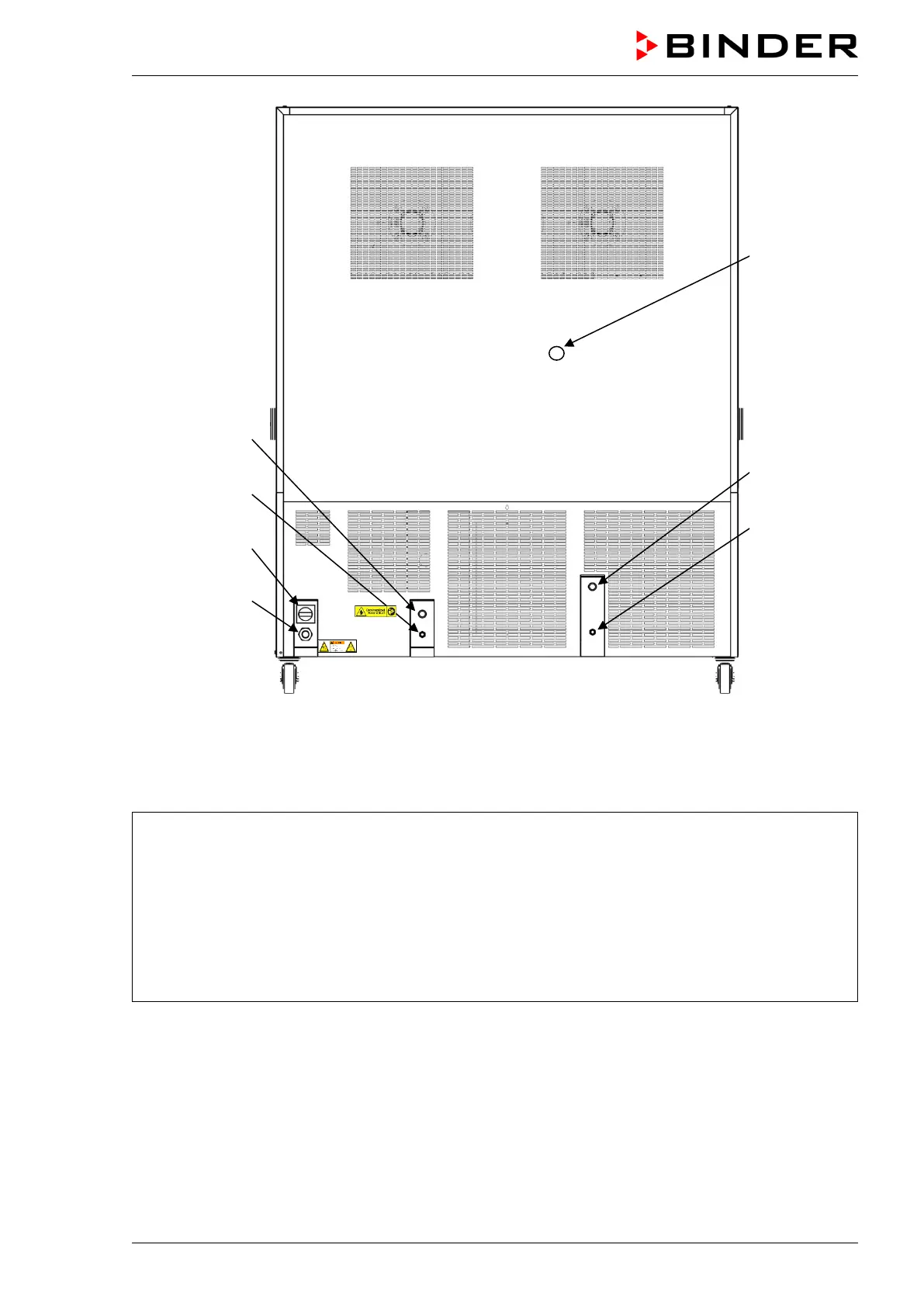

Figure 9: Rear view of MKF/MKFT from size 115 on with water connections
and the options water cooling and compressed air connection (example: MKF 720)
(12) Rear power switch
(13) not used
(14) Wastewater connection “OUT” with hose olive
for hose ½“
(15) Freshwater connection “IN” with screw thread
¾’’ for hose ½“, with union nut
(16) Connection “OUT” for cooling water outlet with
screw thread ¾’’ for hose ½“, with union nut
(water cooling option)
(17) Connection “IN” for cooling water inlet with
screw thread ¾’’ for hose ½“, with union
nut (water cooling option)
(18) not used
(19) Power connection
(20) Compressed air connection (option):
Coupling connector to connect com-
pressed air or the compressed air dryer
(option)
