Binder MKF - Rear Chamber View

MKF / MKFT (E5) 06/2020 page 24/176
2.6 Rear chamber view
(18)
(19)
(20)
(14)
(15)
(16)
(17)

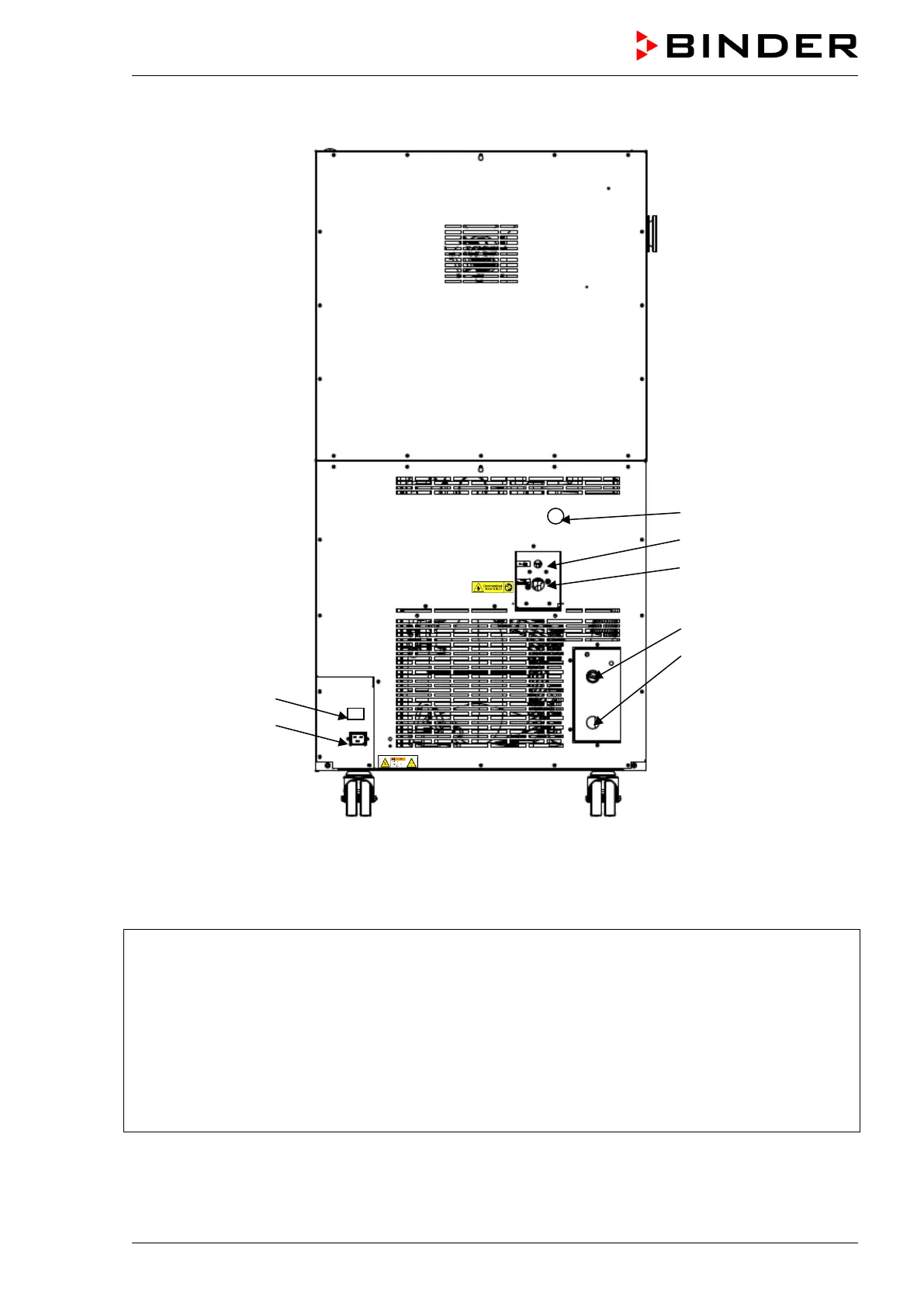

Figure 8: MKF 56 rear view with water connections
and the options water cooling and compressed air connection
(14) Wastewater connection “OUT” with hose olive
for hose ½“
(15) Freshwater connection “IN” with screw thread
¾’’ for hose ½“, with union nut
(16) Connection “OUT” for cooling water outlet with
screw thread ¾’’ for hose ½“, with union nut
(water cooling option)
(17) Connection “IN” for cooling water inlet with
screw thread ¾’’ for hose ½“, with union nut
(water cooling option)
(18) Socket for optional freshwater can (option
for MKF 56, chap. 21.9)
(19) IEC connector plug
(20) Compressed air connection (option): Cou-
pling connector to connect compressed air
or the compressed air dryer (option)
