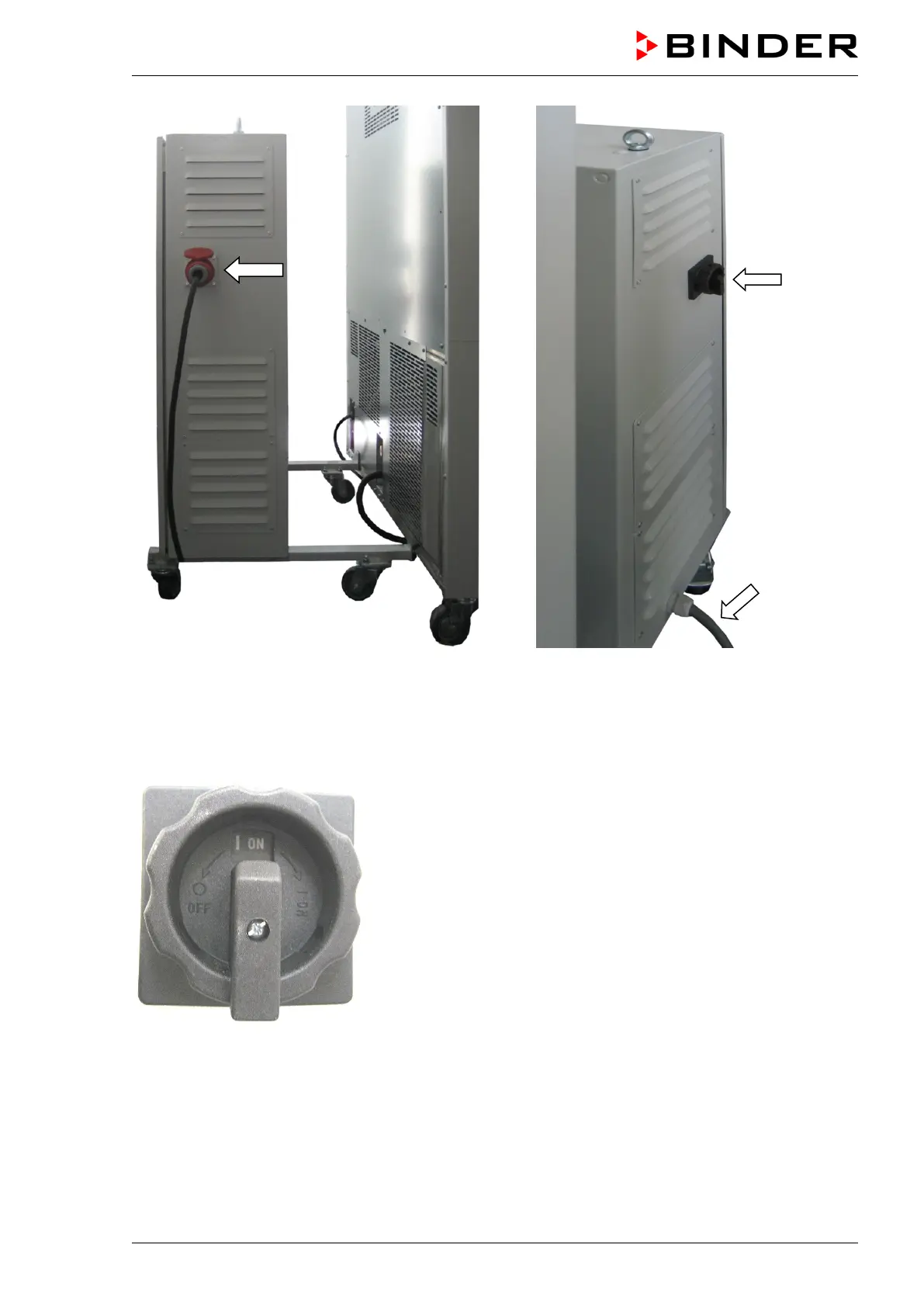

Left side of the voltage and frequency changer
with connection socket (G) for the alternating climate
chamber
Right side of the voltage and frequency changer
with power switch (H) and power cable (I)
Figure 15: Voltage and frequency changer, mounted
Figure 16: Power switch (H) of the voltage and frequency chang-
er in position “ON”
In position “OFF” the switch can be locked, e.g. with a padlock.
