Binder VD 23 - Display on the RD4 Controller; Display on the MB2 Controller; LED Interior Lighting

VD (E3.1) 03/2020 page 143/173

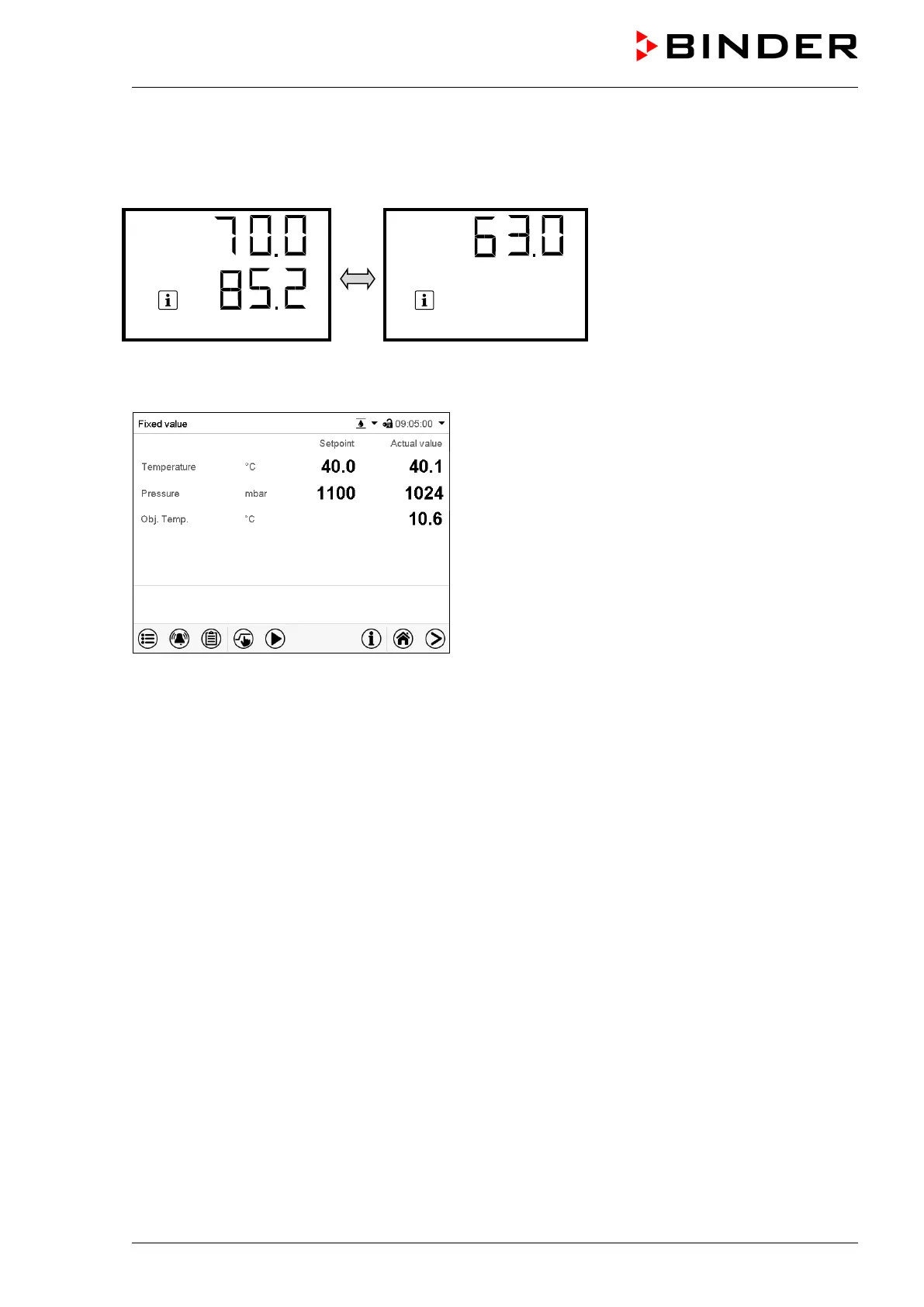

22.4.2 Display on the RD4 controller
In Normal display, the current actual values and the measures object temperature values are shown
alternately:
T / Pressure (mbar)
Obj. Temp.
22.4.3 Display on the MB2 controller
Normal display with object temperature display
(sample values)
The object temperature data are put out together with the data of the temperature controller to the
chamber’s interface and can be documented by the APT-COM™ 4 Multi Management Software (option,
chap. 22.1) developed by BINDER.
22.5 LED interior lighting
The LED interior lighting provides optimal illumination of the interior, regardless of the lighting conditions
in the environment.
It is turned on with a switch located in the triangular instrument panel.
