13. Notification and alarm functions
13.1 Information messages
13.1.1 RD4 controller
Information messages provide information about the settings made or the current controller condition.
In Normal display a text message indicates the condition. The “Information” icon is flashing slowly.

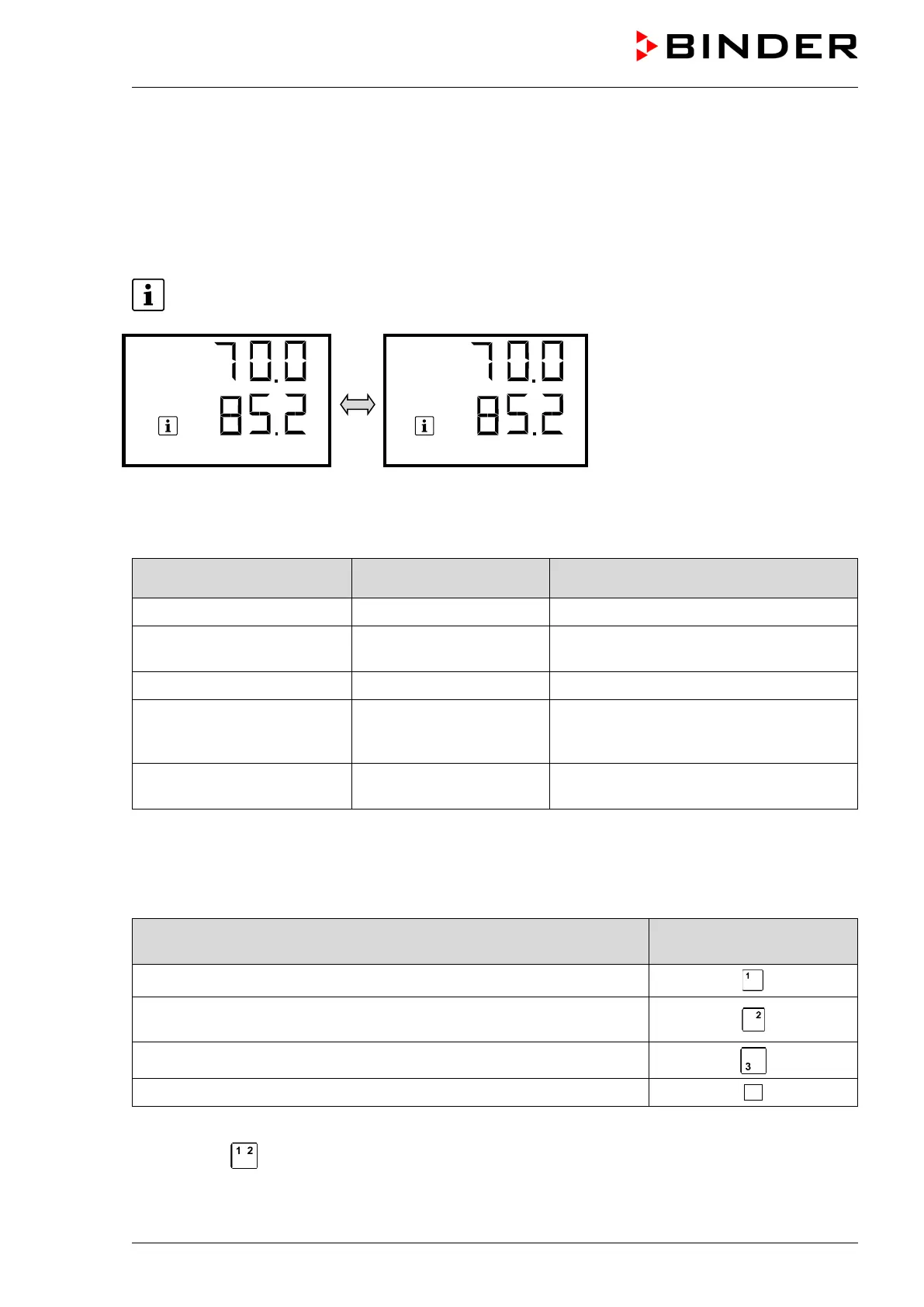

Information message (example:
Pressure control deactivated)
T / pressure (mbar)
Pressure control off
If there are several information messages, they are displayed one after the other.
Information messages overview:
Condition Information message
Moment of information
message
Standby mode activated “Standby” During Standby mode
Temperature control
deactivated
“Temperature control off”
Following deactivation of temperature
control
Pressure control deactivated “Pressure control off” Following deactivation of pressure control
Recommended maintenance
interval (one year of
operation) is over.
“Service due!” “Service due!”
With activated drying
monitoring: Drying finished
“Drying finished” After the solvent has evaporated
Press the OK button to confirm the information message.
Additionally the activated functions are indicated by an icon in Normal display showing the number of the
respective function.
Overview of the information icons of the activated controller functions:
Condition
Information icon in
Normal display
Standby mode
Ventilation via optional connection “GAS/AIR 2” (5).
Regular connection “GAS/AIR” (4) deactivated.
All valves closed
Socket of vacuum module turned off
4
If several functions are simultaneously active, the icon displays a combination of the corresponding
numbers, e.g.
