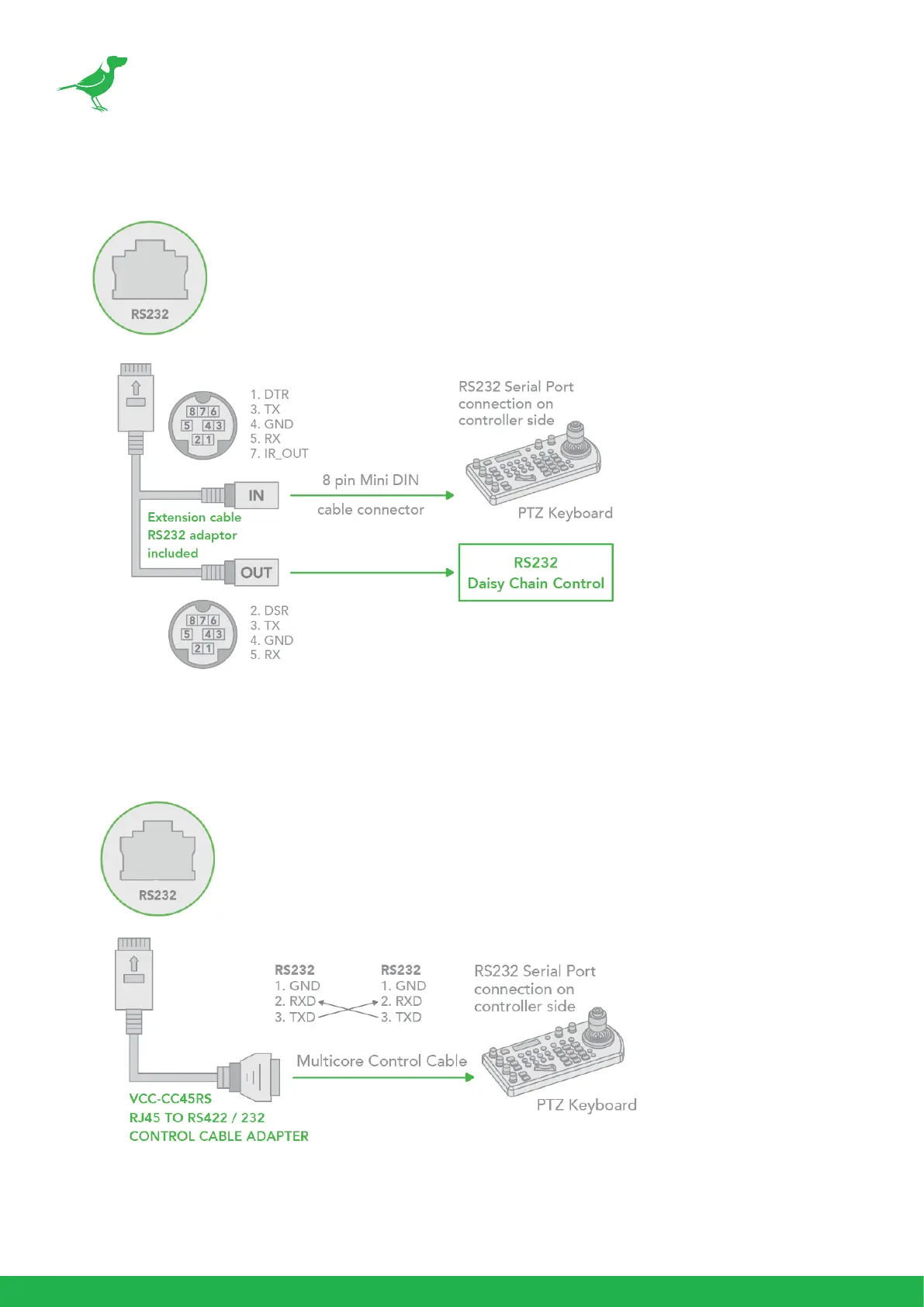

5. Use the included RJ45 to RS232 adaptor cable and an 8 pin Mini Din adaptor to make an RS232 connection for
your control device.
6. Use the included RJ45 to RS422/232 cable with a Phoenix terminal contact adaptor to make an RS232
connection for your control device.
