birddog P240 - RS-232 Daisy-Chain Configuration

To Next Page

To Previous Page

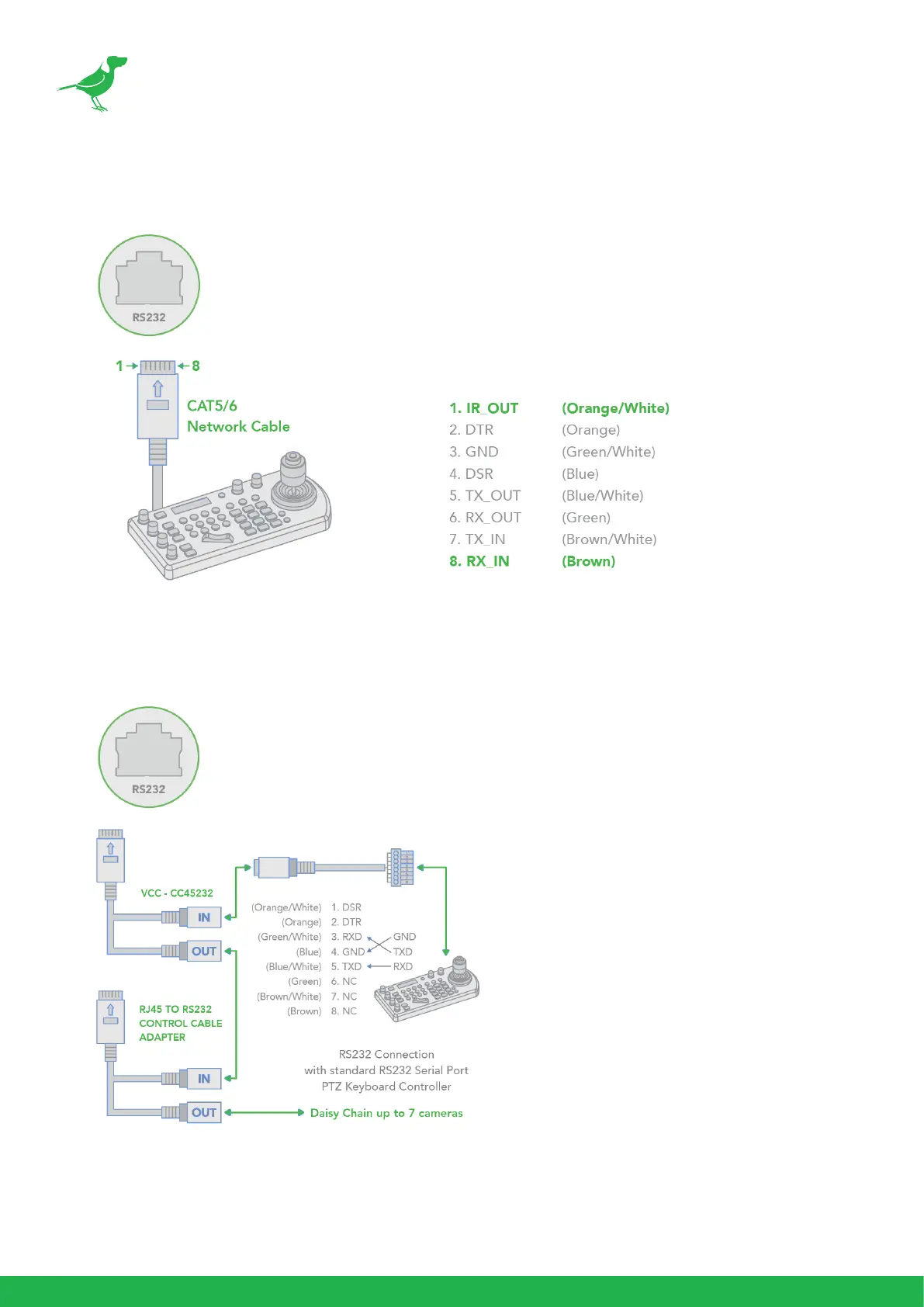

7. Use a CAT5/6 cable (T-568B standard pinout) to make an RS232 connection by following the pin denition

below.

8. Make an RS232 Daisy Chain multiple camera connection with a standard RS232 serial port controller:
