Installation Instruction manual A400 / A400FB
4 - 6 6.054.98.5.10.06 en
4
Adjustment of conveyor belt to the packages running in parallel

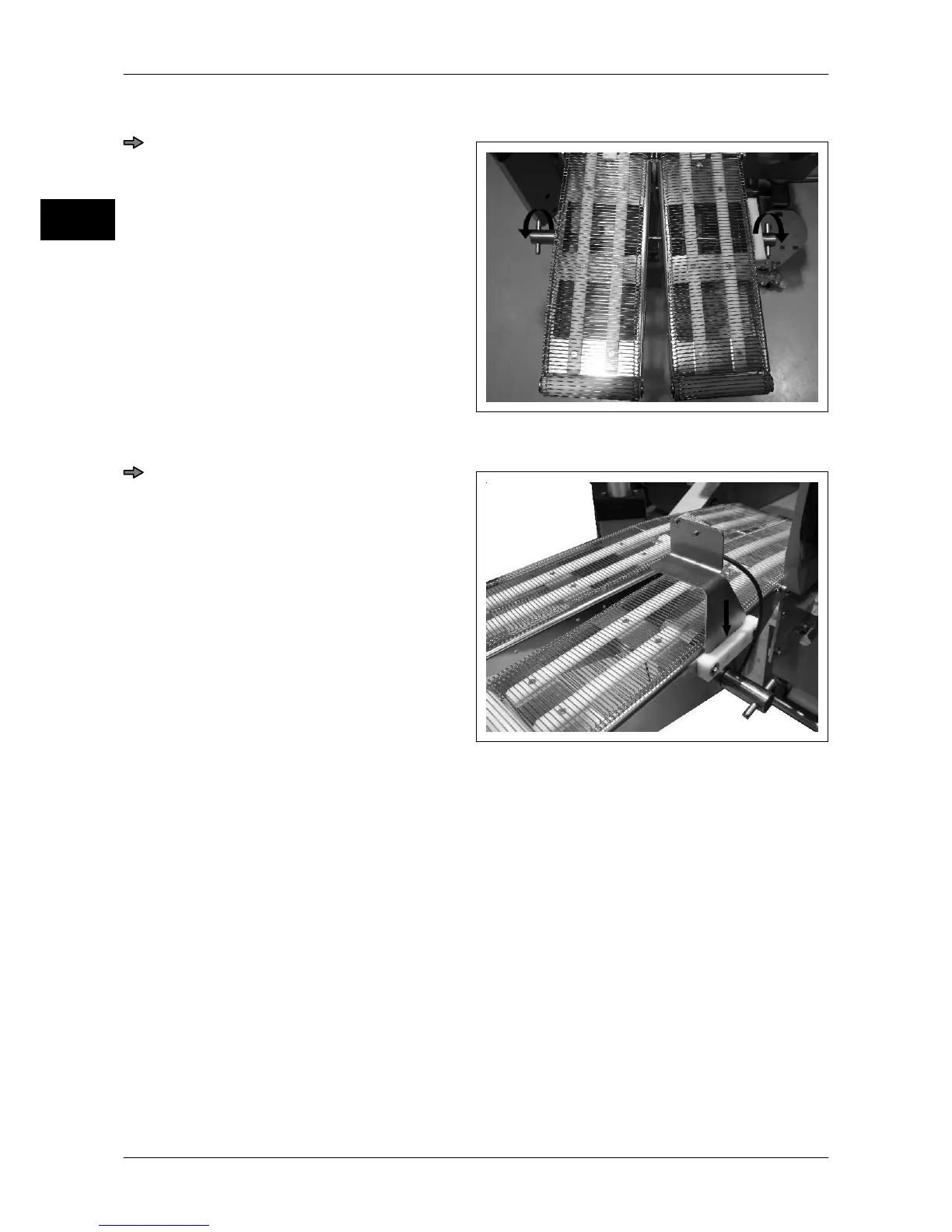

Fig. 13: Bracing of tracks
Turn stop latches at side of conveyor
belt.
A bracing of max. 35 mm with 2-track
conveyor belt and 2x 25°mm with 3-track
conveyor belt in total are possible to ad-
just the tracks to the packages running in
parallel.
Light sensor
Fig. 14: Mount light sensor
Mount the light sensor with view down to
the conveyor belt, as described in the
adjusting guidelines (6.054.46.550.xx).
