Instruction manual A400 / A400FB Installation
6.054.98.5.10.06 en 4 - 7
4
4.5.2 Installation of insertion plate set and remnant holder
Insertion plate set

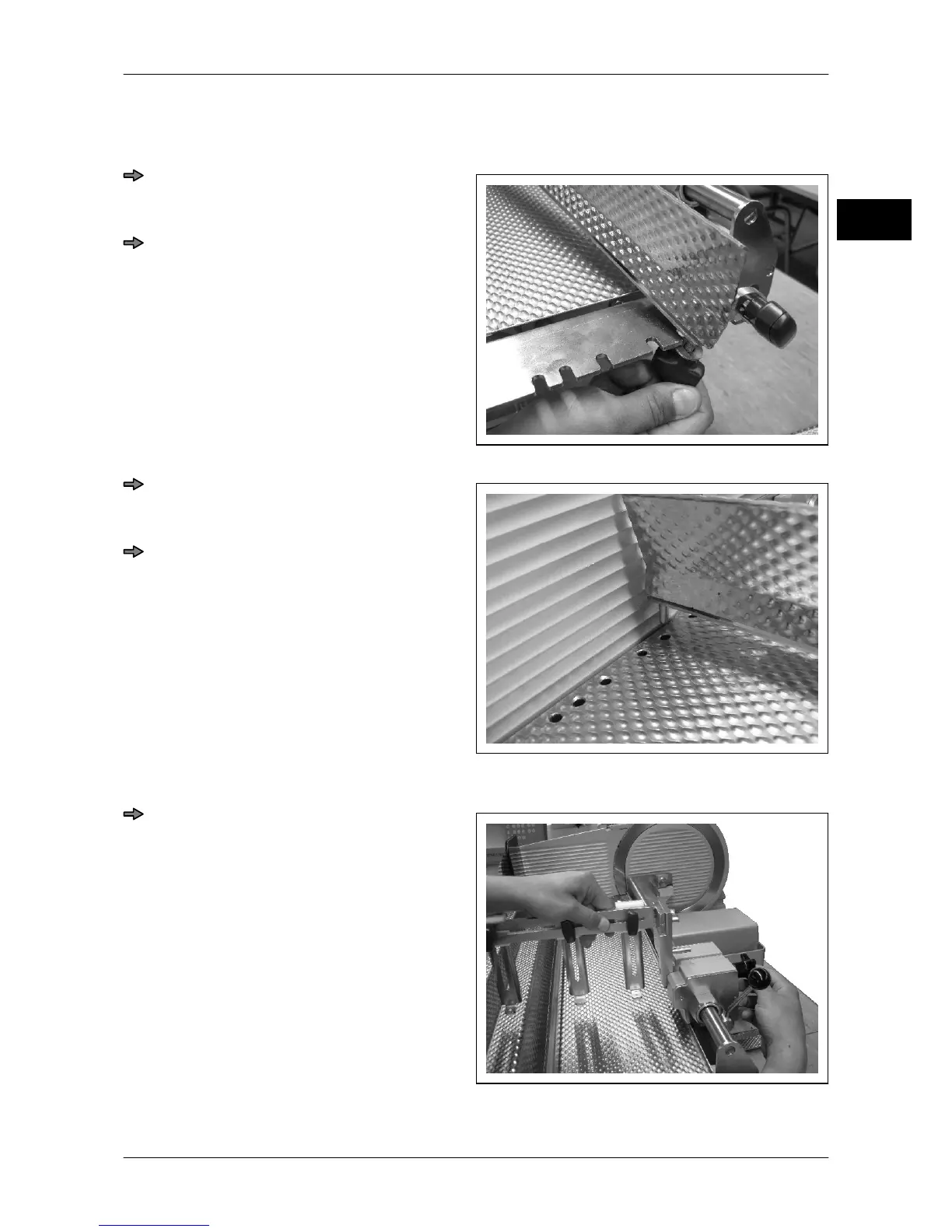

Fig. 15: Mounting of insertion plate
The plates are variable in their use and
can be adjusted to different product and
packaging sizes.
Place the insertion plate with the threa-
ded bolt into the required aperture of the
basset.
Fig. 16: Mounting of insertion plate
Place the insertion plate with the threa-
ded bolt on the other side into the re-
spective drilled hole of the carriage.
Tighten threaded bolt.
Remnant holder
Fig. 17: Mounting of remnant holder
Mount the remnant holder as shown in
the illustration and tighten the star knob.
Make sure that at least one of the three
remnant holder is positioned on the car-
riage.
