3.4 Product Dimensions
All models are designed to t in a standard 19-inch rackmount. The dimensions are shown in table 3.2.
Model Dimensions (W x H x D) Weight
8542B 8500B
8502B
8.5” x 3.5” x 14” (214.5 x 88.2 x 354.6 mm) 10.3 lbs (4.7 kg)
8510B 8.5” x 3.5” x 18.5” (214.5 x 88.2 x 470 mm) 15.8 lbs (7.2 kg)
8514B 17.2” x 3.5” x 18.5” (436.5 x 88.2 x 470 mm) 45 lbs (20.5 kg)
Table 3.2 Dimensions and Weight
3.5 Rackmount Installation
The instrument can be installed in a standard 19 inch rack. For half-rack models, the optional rackmount
kit IT-E151 is required. Figure 3.2 shows one of the half-rack sized units using the IT-E151 rackmount
kit. This rackmount kit also accommodates up to two half-rack models installed side by side. The full
size 8514B includes rack mounting ears.

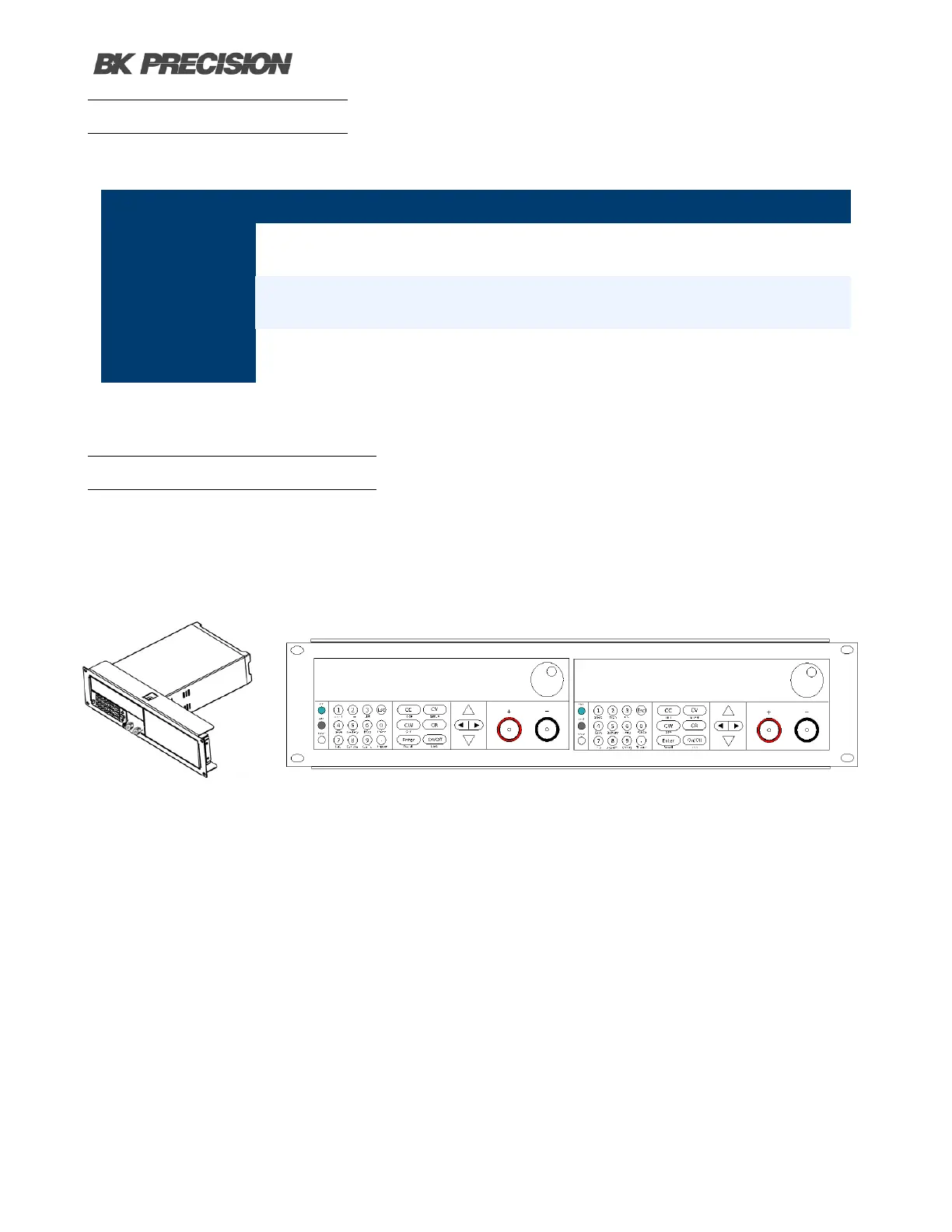

Figure 3.2 Half-Rack sized Unit
