6.1.4 CV Mode
In constant voltage mode the load will sink enough current to control the DUT voltage to the programmed
value. The load acts as a shunt voltage regulator when operating in CV mode.

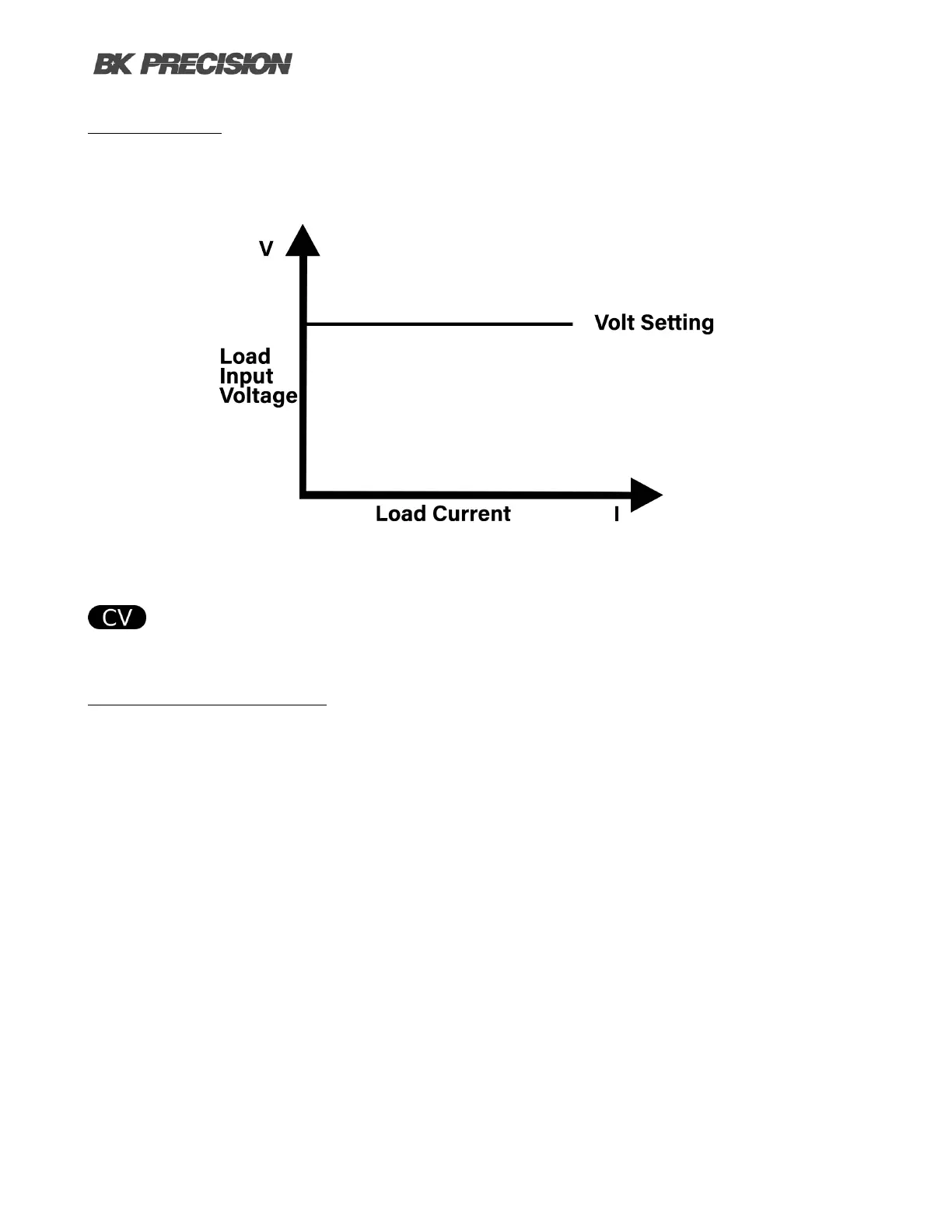

Figure 6.2 Constant Voltage Mode
To run the CV operation RUNMODE must be set to Normal and CV must be selected by pressing the
button. For more information about RUNMODE please refer to section RUNMODE.
Congure CV Parameters
The following parameter is congurable under the Setup menu once CV mode is selected.
Range
Denes the maximum allowed voltage set value. Use this limit to protect against accidentally entering
excessive voltage values either from the keypad or dial. Please refer to section Range Conguration.
