3.8 Display Overview

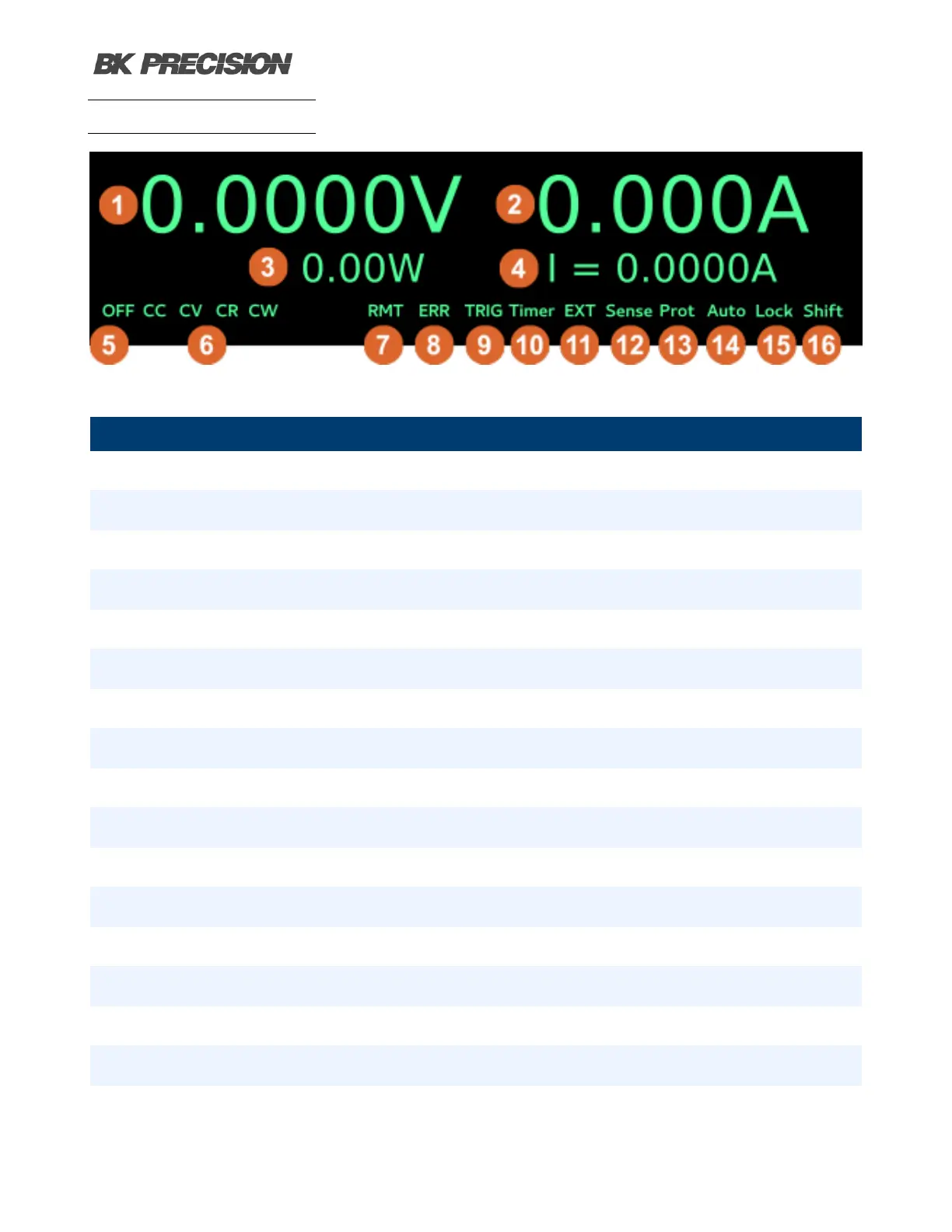

Figure 3.5 Display Overview
Item Description
1 Measured Voltage
2 Measured Current
3 Measured Power
4 Set Value
5 Input O indicator, lit when input is o
6 Operation mode indicators (CC, CV, CW, CR)
12 Remote control active indicator
13 Error indicator
14 Waiting for Trigger indicator
15 Timer indicator
16 External indicator
16 Remote Sense active indicator
17 Protection event indicator
18 Auto range
19 Key Lock indicator
20 Shift indicator
Table 3.5 Display Overview
