Chapter 5: Maintenance
5.4.2 Import Config
This section describes how to import the switch configuration for maintenance needs. Any current configuration files will be
imported as XML format.
Web Interface
To configure an Import Configuration in the Web interface:
1. Click “Browser to select the config file in your device.“
2. Click “Upload.“

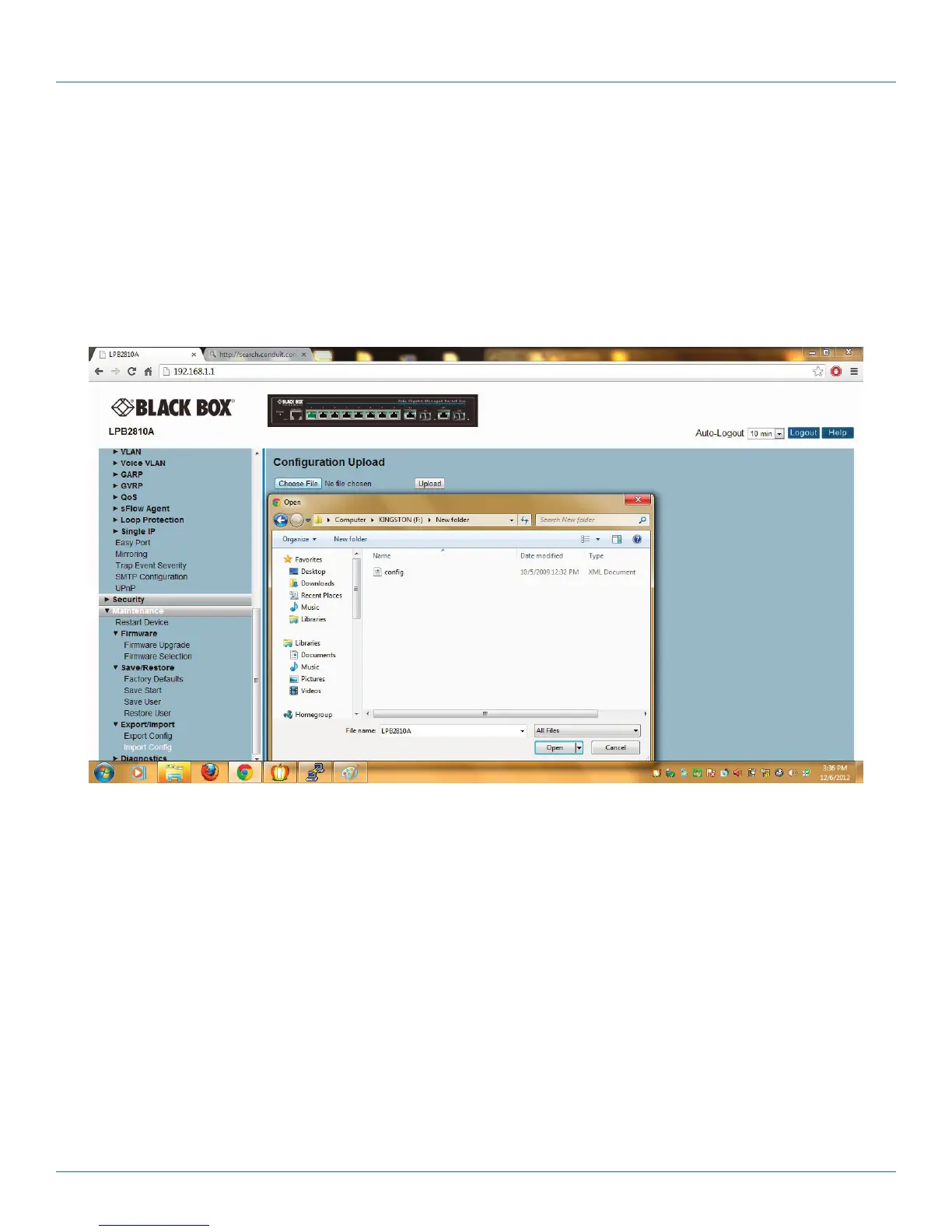

Figure 5-9. The Import Configuration screen.
Parameter Description
• Browse: Click the “Browse...” button to search the Configuration URL and filename.
• Upload: Click the “Upload” button. The switch will start to upload the configuration from the configuration stored locally in
the PC or Server.
LPB2810A

Black Box LPB2848A Specifications

General

Layer	Layer 2
Total PoE Budget	370 W
Rack Mountable	Yes
Switching Capacity	104 Gbps
Forwarding Rate	77.4 Mpps
VLANs	256
Power Supply	Internal
Device Type	Managed Switch
Port Type	Gigabit Ethernet
Uplink Ports	4
Power over Ethernet (PoE)	Yes
PoE Standard	IEEE 802.3af, IEEE 802.3at
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	10 - 90% (non-condensing)
Dimensions (W x D x H)	440 x 260 x 44 mm
Management Type	Web
