Page 141
Chapter 3: Configuration
3.16.4 Port Shaping
This section provides an overview of QoS Egress Port Shaping for all switch ports. Others the user could get all detail information
ot the ports belong to the currently selected unit, as shown in the page header.
Web Interface
To display the QoS Port Shapers screen in the Web interface:
1. Click Configuration, QoS, Port Shapers.
2. Display the QoS Egress Port Shapers.
Click the Port Index to set the QoS
Egress Port Shapers

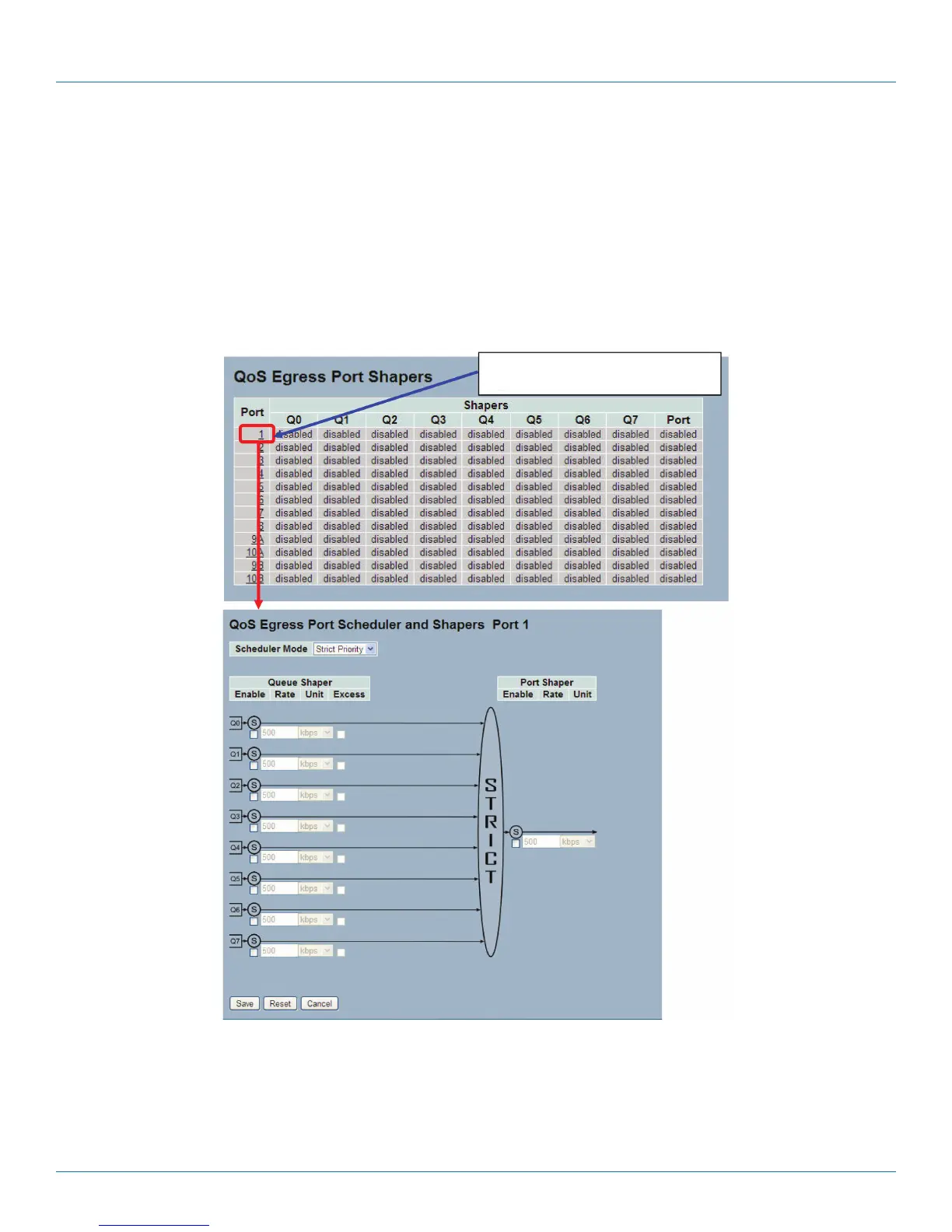

Figure 3-76. The QoS Egress Port Shapers screen, Strict Priority mode.
LPB2810A
