Chapter 3: Configuration
3.16.5 Port Tag Remarking
This section provides an overview of QoS Egress Port Tag Remarking for all switch ports. Others the ports belong to the currently
selected unit, as shown in the screen header.
Web Interface
To display the QoS Port Tag Remarking in the Web interface: Click Configuration, QoS, Port Tag Remarking.
Click the Port Index to set the QoS Port
Tag Remarking.

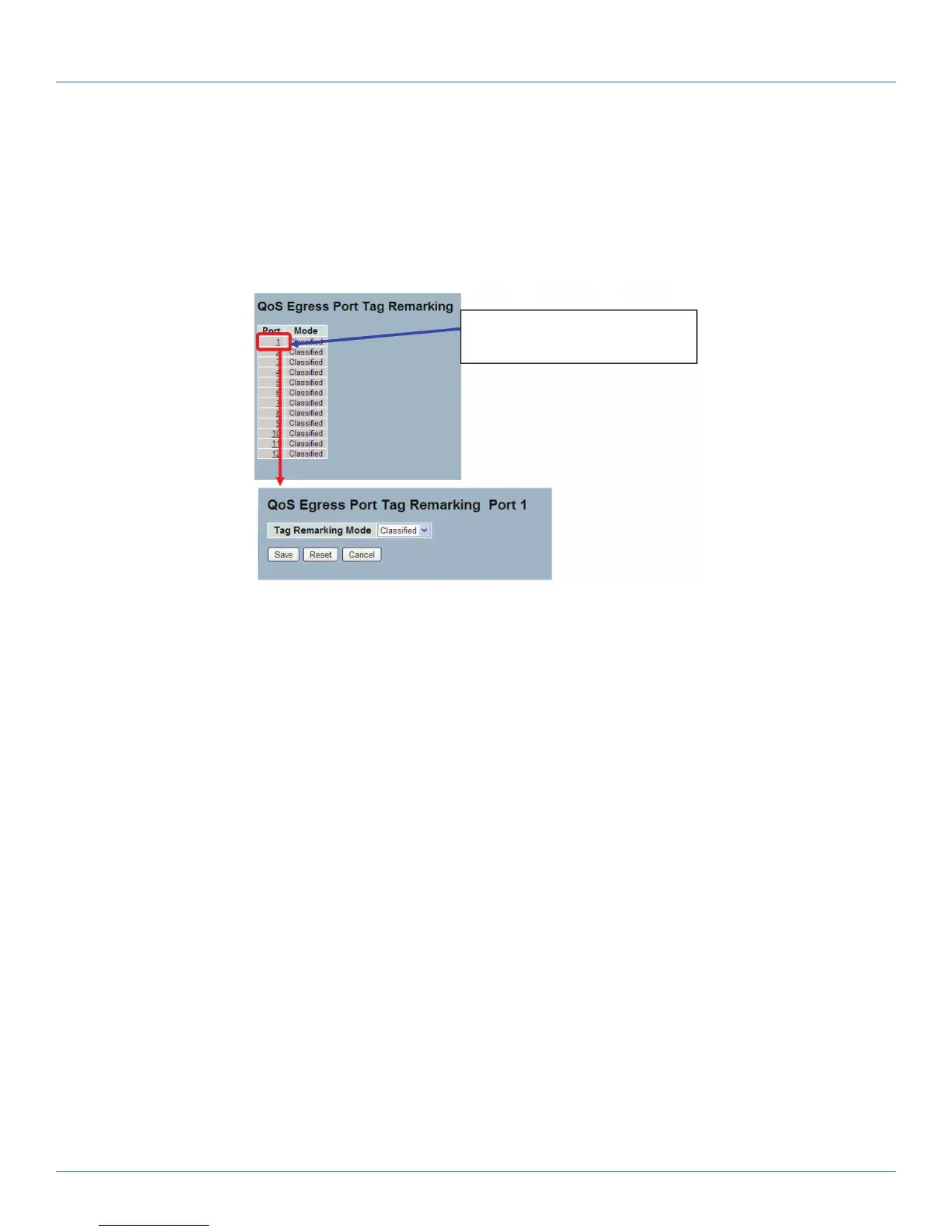

Figure 3-78. The Port Tag Remarking screen.
Parameter Description
• Port: The logical port for the settings contained in the same row. Click on the port number to configure tag remarking.
• Mode: Shows the tag remarking mode for this port.
- Classified: Use classified PCP/DEI values.
- Default: Use default PCP/DEI values.
- Mapped: Use mapped versions of QoS class and DP level.
• Tag Remarking Mode: To scroll to select the tag remarking mode for this port.
- Classified: Use classified PCP/DEI values.
- Default: Use default PCP/DEI values.
- Mapped: Use mapped versions of QoS class and DP level.
• Buttons:
- Save: Click to save changes.
- Reset: Click to undo any changes made locally and revert to previously saved values.
- Cancel: Click to cancel the changes.
LPB2810A

Black Box LPB2848A Specifications

General

Layer	Layer 2
Total PoE Budget	370 W
Rack Mountable	Yes
Switching Capacity	104 Gbps
Forwarding Rate	77.4 Mpps
VLANs	256
Power Supply	Internal
Device Type	Managed Switch
Port Type	Gigabit Ethernet
Uplink Ports	4
Power over Ethernet (PoE)	Yes
PoE Standard	IEEE 802.3af, IEEE 802.3at
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	10 - 90% (non-condensing)
Dimensions (W x D x H)	440 x 260 x 44 mm
Management Type	Web
