Rear Panel
13 Battery Slot
Blackmagic Micro Studio Camera 4K comes with one LP-E6 battery which fits into this
slot. The battery will be trickle charged while the camera is connected to power via its
expansion port.

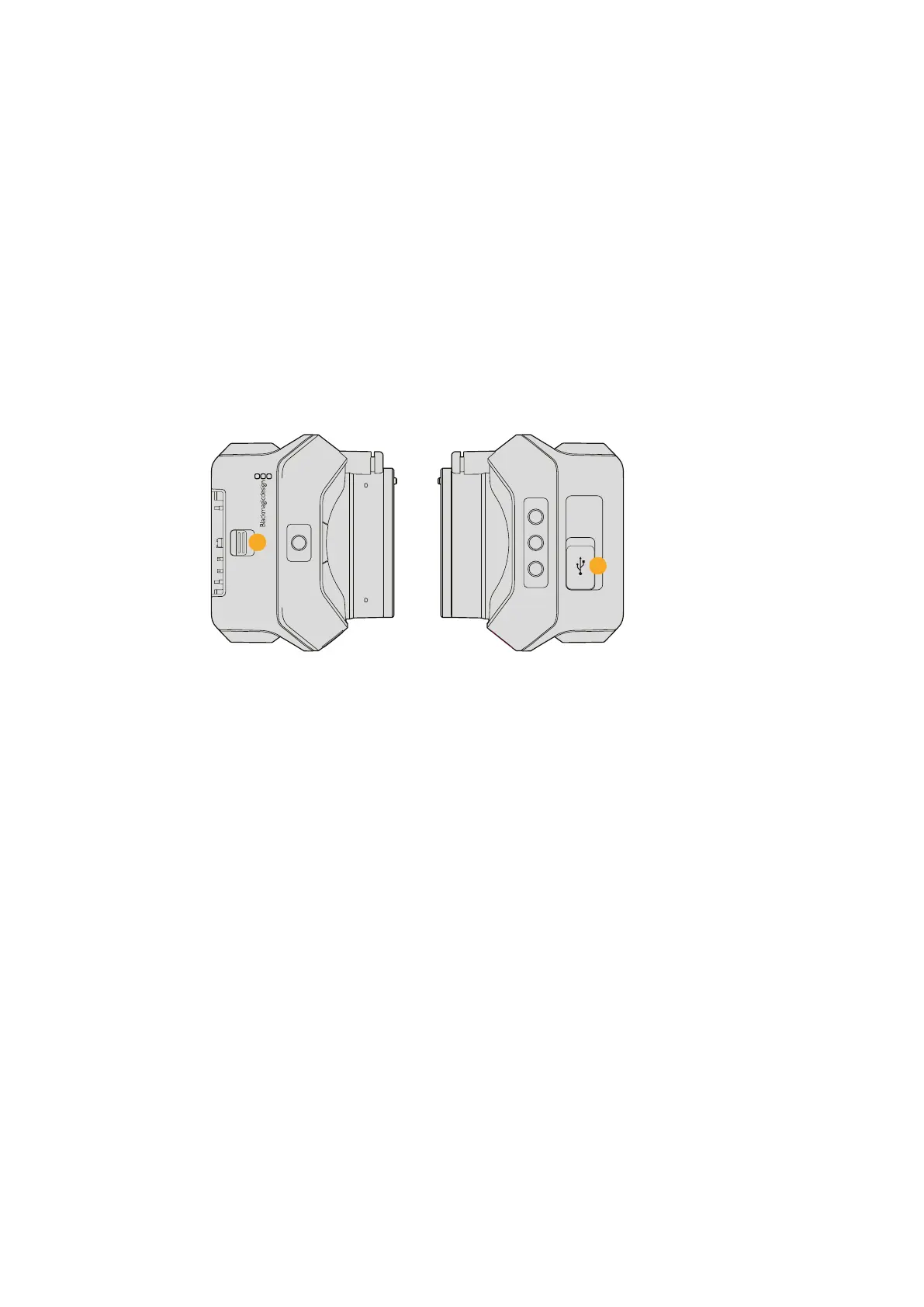

Top Panel
14 Battery Release
Slide forward to release the battery.
Bottom Panel
15 USB Connector
USB port for camera firmware updates. See the ‘Blackmagic Camera Setup’ section in
this manual.
Camera Connections
Blackmagic Studio Camera - Left Side
LANC Remote Control
The remote port on your camera is used to remotely control lens focus, iris and zoom
adjustments when using a compatible lens. The port takes a 2.5 mm stereo jack using the
standard LANC protocol.
Active MFT lenses allow you to control the zoom servo with a LANC controller. The following
lenses are currently supported:
Panasonic Lumix G X Vario PZ 14-42mm f/3.5-5.6 Power O.I.S. Lens
Panasonic Lumix G X Vario PZ 45-175mm f/4.0-5.6 Zoom O.I.S. Lens
Olympus M.Zuiko Digital ED 12-50mm f/3.5-6.3 EZ Micro 4/3 Lens
Olympus M.Zuiko Digital ED 14-42mm f/3.5-5.6 EZ Micro 4/3 Lens
Headphones Output
For monitoring program and control room audio with aviation style headsets with “fixed wing”
connectors. Aviation headsets range from single ear models for use in studio environments to
full size noise cancelling models which are suitable for loud concerts or sporting events. Audio
is taken from channel 15 and 16 of the incoming SDI signal. Channels 15 and 16 are rarely if ever
used during production and so are very suitable to serve for the audio talkback.
14
15
1313Camera Connections
