18 Menu Navigation Buttons
Navigate the menu on the LCD.
19 Set Button
Use this button to confirm your menu selections.
20 Display Button
Press this button to toggle overlays on and off.
21 Menu Button
Access the menu on the LCD.
22 Power Button
Press the power button to turn on the Blackmagic Studio Camera. Press and hold the
button to turn the camera off.
Refer to the ‘button settings’ section in this manual for more details.

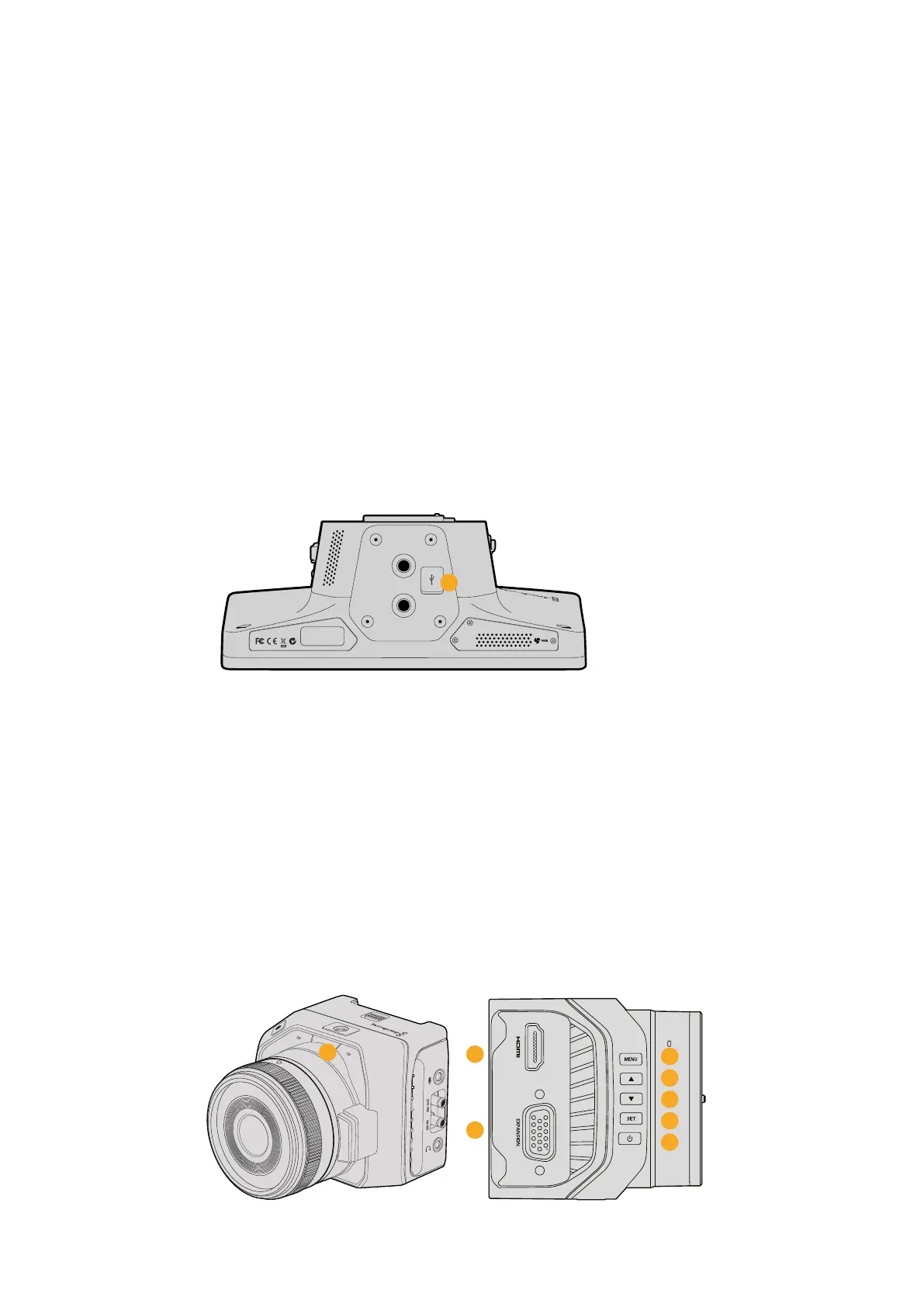

Bottom Panel
23 USB Connector
USB Mini-B port for camera firmware updates. See ‘Blackmagic Camera Setup’ section in
this manual.
Blackmagic Micro Studio Camera 4K Features
Front Panel
1 Tally Light
The Tally light indicates to on-air talent which camera is currently ‘live,’ as well as
alerting the operator to the status of the camera. The following scenarios are possible:
 White - Powered
 Red - Live
 Alternating red and orange - Battery low when live
 Alternating white and orange - Battery low
You can adjust the brightness of the tally light in Micro Studio Camera 4K’s settings.
See the ‘camera settings’ section for more information.
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICA
L OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
23
4
5
2
3
6
7
8
1
1111Camera Features
