Headphones Microphone Input
For talking to the control room with aviation style headsets. Audio is embedded into channel
15and 16 of the SDI signal output.
Audio Inputs
Two channels of professional balanced analog audio is supported via XLR connectors. Use the
audio menu to set the input levels for each channel. The inputs support both mic level inputs
and line level inputs and the input type is also selected from the audio menu. Audio is
embedded into channel 1 and 2 of the SDI stream.

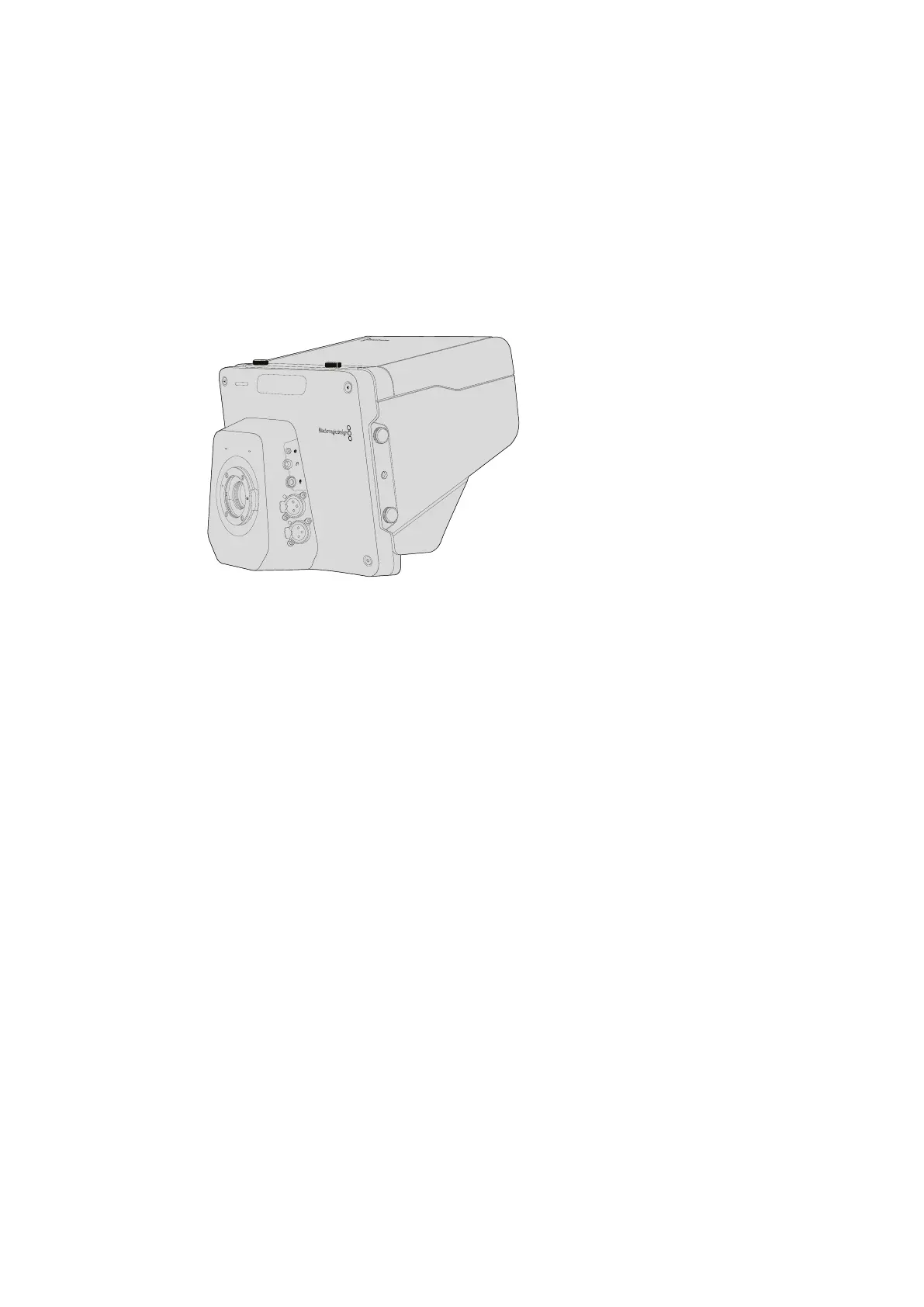

Blackmagic Studio Camera - Right Side
Optical Input/Output
For optical fiber input and output, you will need to install an optional optical fiber SFP module.
This lets you connect industry standard LC connectors, supporting 3G-SDI on Studio Camera
HD, and 6G-SDI on Studio Camera 4K. Optical fiber cable is widely available because it’s the
same cable used in computer networking. Optical fiber allows cable runs of up to 28 miles
which is more than enough for even the most demanding outside broadcast event. If both
optical and SDI inputs are connected, the output from the device which was connected first will
be used. To purchase an optical fiber SFP module for your Blackmagic Studio Camera, contact
your nearest Blackmagic Design reseller. You can find your nearest reseller on our website at
www.blackmagicdesign.com/resellers.
SDI Out
Use the SDI Out connector to output 10-bit 4:2:2 video to professional SDI video equipment
such as routers, monitors, SDI capture devices and broadcast switchers. Blackmagic Studio
Camera HD supports 3G-SDI, and Studio Camera 4K supports 12G-SDI.
SDI In
The SDI input allows the camera operator to view the Program (PGM) output. Simply press the
PGM button to toggle between live camera output and Program output from a switcher
control room.
If both optical and SDI inputs are connected, the output from the device which was connected
first will be used. If you’re using the Studio Camera to record to a device such as the
Blackmagic Hyperdeck Shuttle, the output from the Hyperdeck can be connected to the SDI
input so you can playback what you have just recorded.
1
1
3
PUSH
2
2
1
3
PUSH
2
1414Camera Connections
