Blackmagicdesign Blackmagic Studio Camera - Using ATEM Software Control; Connecting via SDI

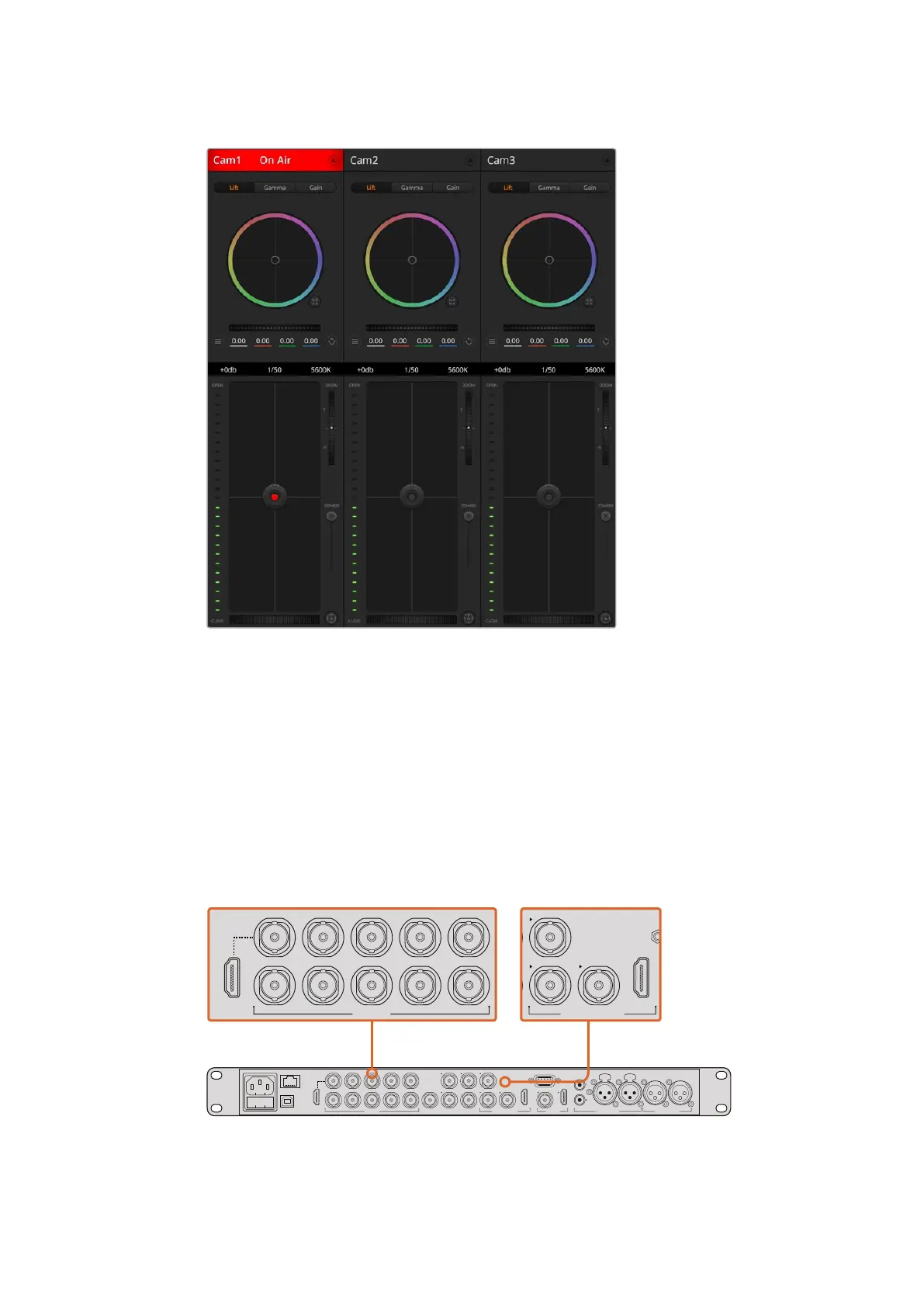

ATEM Camera Control.
Connecting via SDI
1 Connect your Blackmagic Studio Camera’s SDI Out to any SDI In on the ATEM switcher.
2 Connect any one of the ATEM switcher’s SDI outputs, except down converted or multi
view outputs, to your Studio Camera’s SDI In. Camera control signals are not sent via
the multi view and down converted SDI outputs.
3 On your Blackmagic Studio Camera, press Menu. Navigate to Studio Settings>Camera
Number and set it to match the switcher input. For example, if studio camera 1 is
connected to Cam 1 on the ATEM switcher, the camera number must also be set to 1.
This ensures tally is sent to the correct camera.
Connect your Blackmagic Studio Camera to any of the ATEM switcher’s SDI inputs.
