DeckLink HD Pro 4:4:4 PCI-X
2
3
4
5
6
7
8
9
2. Deck Control
HD/SD-SDI Monitoring Output Ch A
HD/SD-SDI Output (to deck) Ch B
HD-SDI Input for 4:4:4 Ch B
HD/SD-SDI Input (from deck) Ch A
3. R-Y/R Monitor Out
4. Y/G Monitor Out
5. B-Y/B Monitor Out
6. Ref In
7. SPDIF/AES Out
8. SPDIF/AES In
9. Wordclock Out

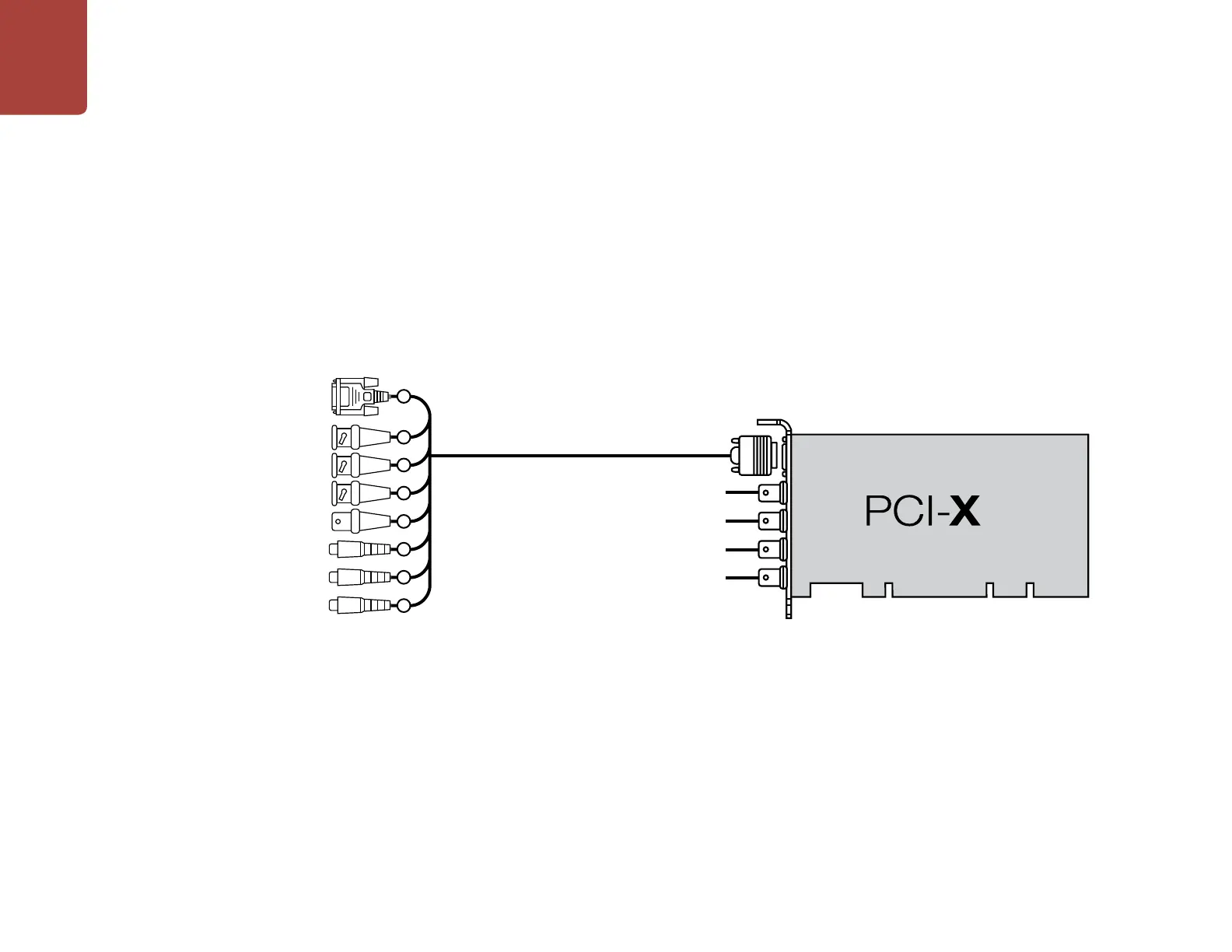

DeckLink HD Pro Breakout Cable
