Blackmagicdesign DeckLink Series User Manual

Previous DeckLink Cards – Connection Diagrams
75
ANALOG VIDEO I/O DIGITAL AUDIO I/O (AES/EBU)
REF VIDEO
IN
IN
IN
IN1
2
3
OUT
CH-1 CH-2 CH-3 CH-4
CH-1 CH-2 CH-3 CH-4
IN
OUT
OUT
OUT
OUT
OUT
VIDEO IN
VIDEO OUT
S VIDEO
MONITOR AUDIO
AUDIO OUT
AUDIO IN
SDI OUTPUT SDI INPUT
TIME CODE
VIDEO CONTROL
CONTROL PANEL
REMOTE - IN
AC IN
REMOTE - OUT
COMPONENT VIDEO
2 3 4 5 6 7 8 9 10 11 12 13 14 15
2 3 4 5 6 7 8 9 10 11 12 13 14 15
DeckLink HD Extreme
Professional Breakout Cable
Connecting to an SDI digital deck

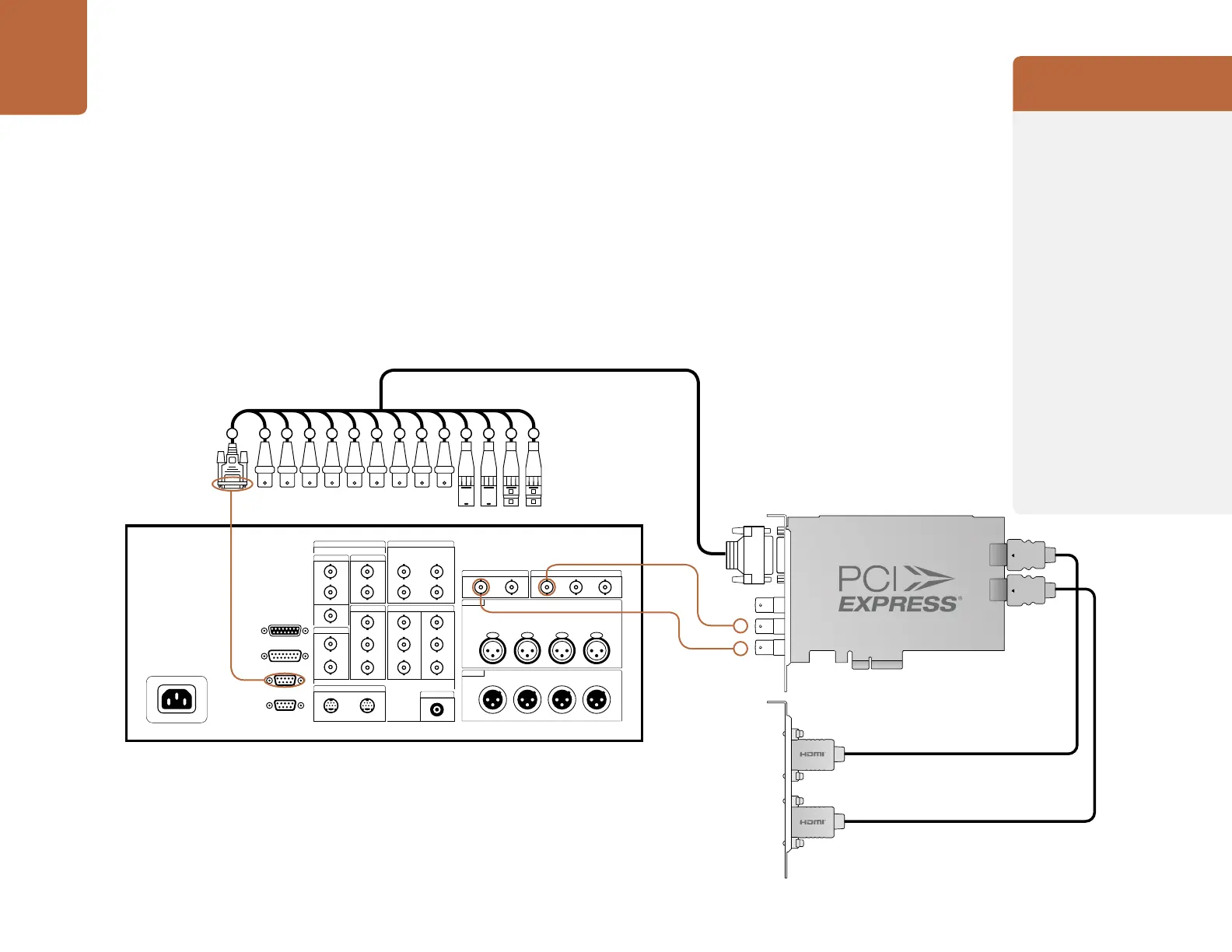

This example shows DeckLink HD Extreme 2 connected to a digital deck in 4:2:2 SD mode for
capture and playback to the SDI deck. The HDMI, spare SDI and analog outputs can be used for
local monitoring.
Cards which can be used in
this workflow...
DeckLink HD Extreme 3D+
DeckLink Optical Fiber
DeckLink SDI
DeckLink Studio 2
Previous DeckLink cards
DeckLink
DeckLink Extreme
DeckLink Extreme PCIe
DeckLink HD
DeckLink HD Extreme
DeckLink HD Extreme 2
DeckLink HD Extreme 3
DeckLink HD Extreme 3D
DeckLink HD Plus
DeckLink HD Pro 4:2:2 PCI-X
DeckLink HD Pro 4:4:4 PCI-X
DeckLink HD Pro PCIe
DeckLink Plus
DeckLink Pro
DeckLink Studio

Blackmagicdesign DeckLink Series Specifications

General

Interface	PCIe
Bit Depth	8-bit, 10-bit, 12-bit (Varies by model)
Chroma Sampling	4:2:2, 4:4:4 (Varies by model)
Category	Video Capture & Playback Card
Video Inputs	SDI, HDMI (varies by model)
Video Outputs	SDI, HDMI (varies by model)
Audio Inputs	Embedded in SDI/HDMI, Analog (varies by model)
Audio Outputs	Embedded in SDI/HDMI, Analog (varies by model)
Supported Resolutions	4K (varies by model)
Operating System Support	macOS, Windows, Linux
