Blackmagicdesign DeckLink Series User Manual

Previous DeckLink Cards – Product Diagrams
89

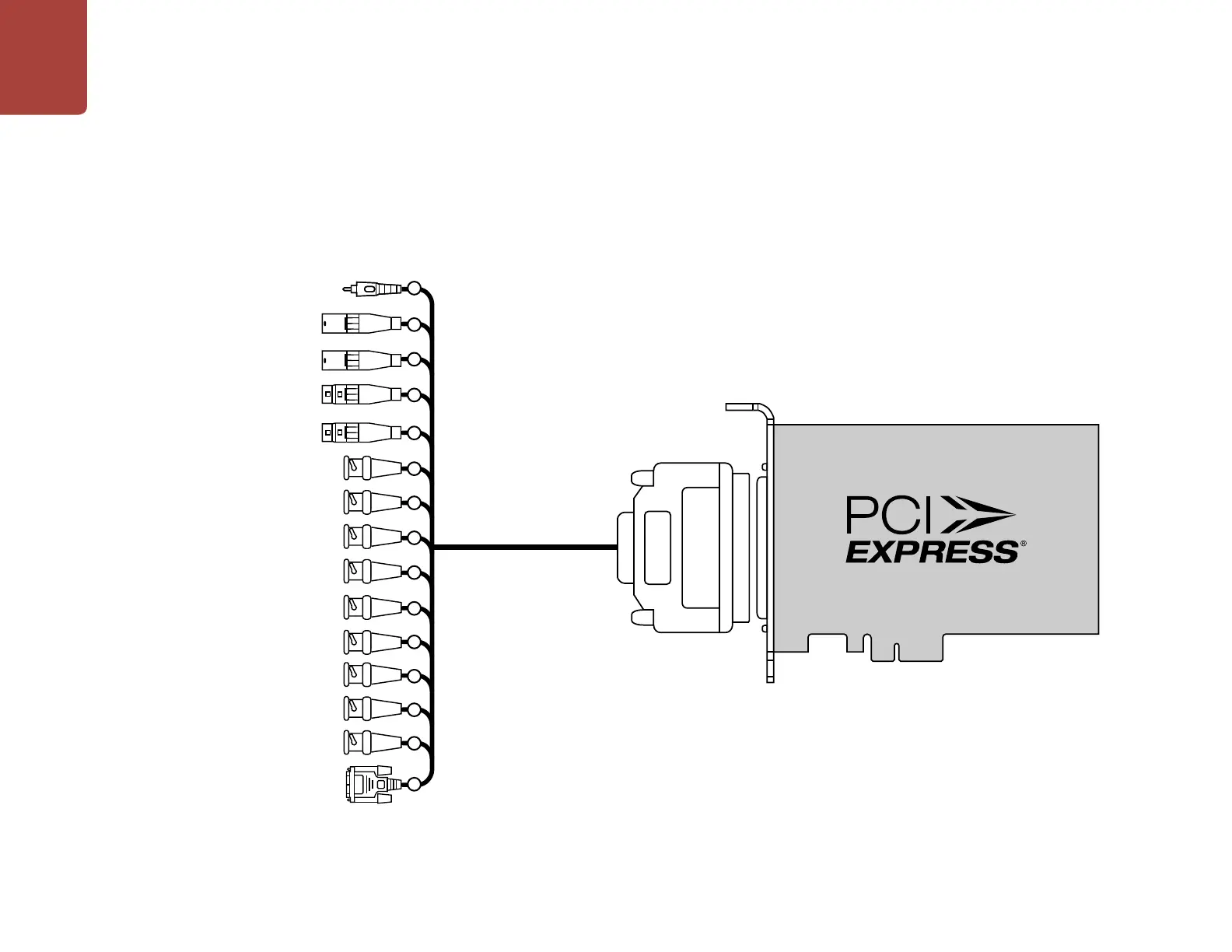

DeckLink Extreme PCIe
16
Y Input
R-Y Output
B-Y Output
Y Output
(composite monitoring)
SD-SDI Input
SD-SDI Output
Genlock Input
Deck Control RS-422
7ft break-out cable
B-Y Input
R-Y Input
SPDIF/AES Output
(monitoring)
(L) Audio Input
(balanced analog)
(L) Audio Output
(balanced analog)
(R) Audio Input
(balanced analog)
(R) Audio Output
(balanced analog)
2
3
4
5
7
6
8
9
10
11
12
13
14
15
2. AES-S/PDIF Output
(monitoring)
3. (L) Audio Output
(balanced analog)
6. (R) Audio Input
(balanced analog)
9. R-Y Input
4. (R) Audio Output
(balanced analog)
7. Y Input
10. Y Output
(composite monitoring)
5. (L) Audio Input
(balanced analog)
8. B-Y Input
11. B-Y Output
12. R-Y Output
13. SD-SDI Output
14. Genlock Input
15. SD-SDI Input
DeckLink Extreme
Breakout Cable
16. Deck Control RS-422

Blackmagicdesign DeckLink Series Specifications

General

Interface	PCIe
Bit Depth	8-bit, 10-bit, 12-bit (Varies by model)
Chroma Sampling	4:2:2, 4:4:4 (Varies by model)
Category	Video Capture & Playback Card
Video Inputs	SDI, HDMI (varies by model)
Video Outputs	SDI, HDMI (varies by model)
Audio Inputs	Embedded in SDI/HDMI, Analog (varies by model)
Audio Outputs	Embedded in SDI/HDMI, Analog (varies by model)
Supported Resolutions	4K (varies by model)
Operating System Support	macOS, Windows, Linux
