Blackmagicdesign DeckLink Series User Manual

Product Diagrams
59

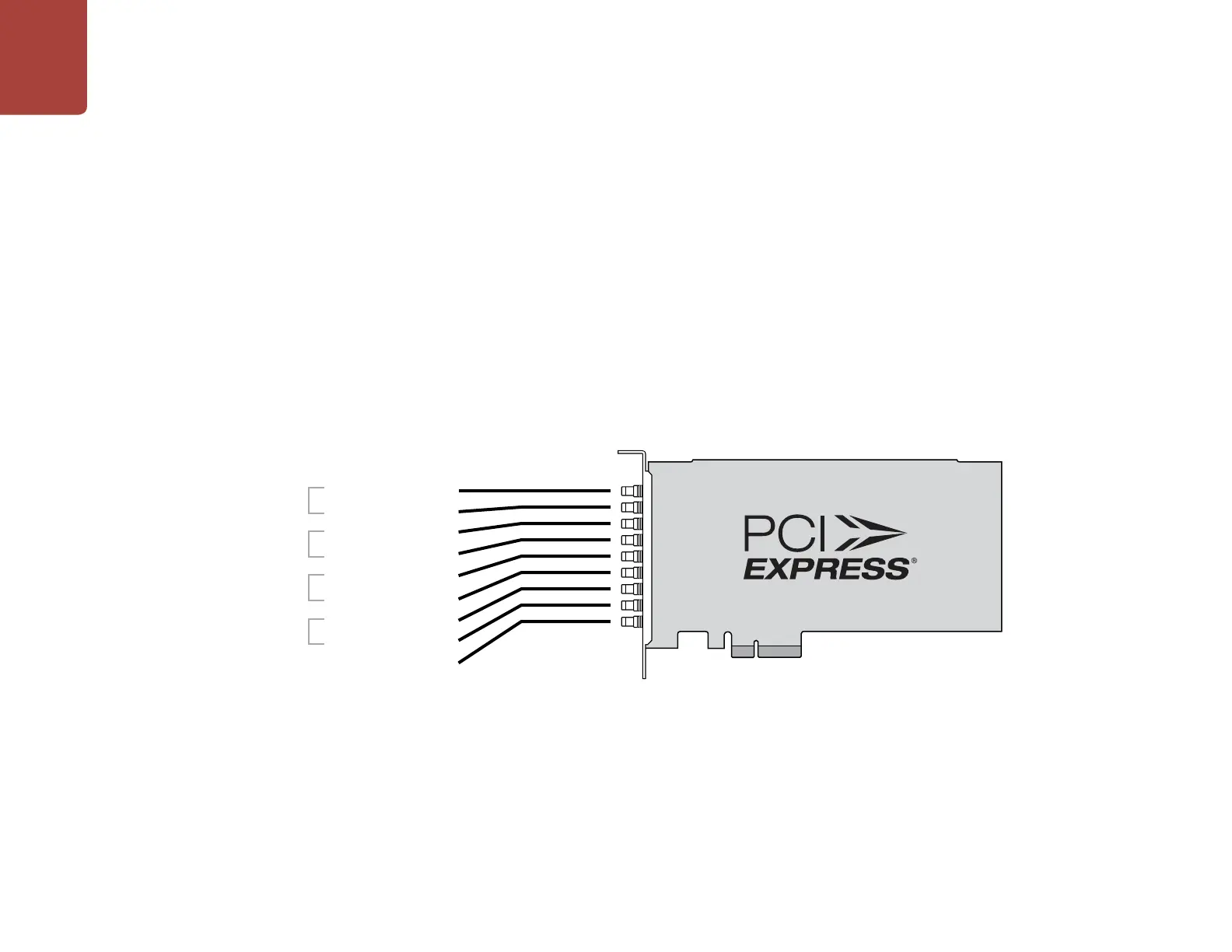

DeckLink Quad
DeckLink Quad is identified as four DeckLink SDI cards by the computer. The bottom
connector is a common reference input which is shared by all DeckLink SDI cards.
The pair of connectors immediately above the reference input belong to DeckLink SDI 1.
The next pairs of connectors above belong to DeckLink SDI 2, 3 and 4 respectively. If a
second DeckLink Quad is installed in the same computer, the lowest pair of connectors
belong to DeckLink SDI 5 and the top pair belong to DeckLink SDI 8. DeckLink Quad
exclusively uses DIN 1.0/2.3 rather than larger BNC type connectors. The settings for each
DeckLink SDI card can be selected from the Blackmagic Design preference pane in the
System Preferences of Mac OS X.
HD/SD-SDI Out
HD/SD-SDI Out
HD/SD-SDI In
HD/SD-SDI In
HD/SD-SDI In
HD/SD-SDI Out
HD/SD-SDI Out
HD/SD-SDI In
Ref In
DeckLink SDI 4
DeckLink SDI 3
DeckLink SDI 2
DeckLink SDI 1

Blackmagicdesign DeckLink Series Specifications

General

Interface	PCIe
Bit Depth	8-bit, 10-bit, 12-bit (Varies by model)
Chroma Sampling	4:2:2, 4:4:4 (Varies by model)
Category	Video Capture & Playback Card
Video Inputs	SDI, HDMI (varies by model)
Video Outputs	SDI, HDMI (varies by model)
Audio Inputs	Embedded in SDI/HDMI, Analog (varies by model)
Audio Outputs	Embedded in SDI/HDMI, Analog (varies by model)
Supported Resolutions	4K (varies by model)
Operating System Support	macOS, Windows, Linux
