Blackmagicdesign DeckLink Series User Manual

Previous DeckLink Cards – Product Diagrams
101

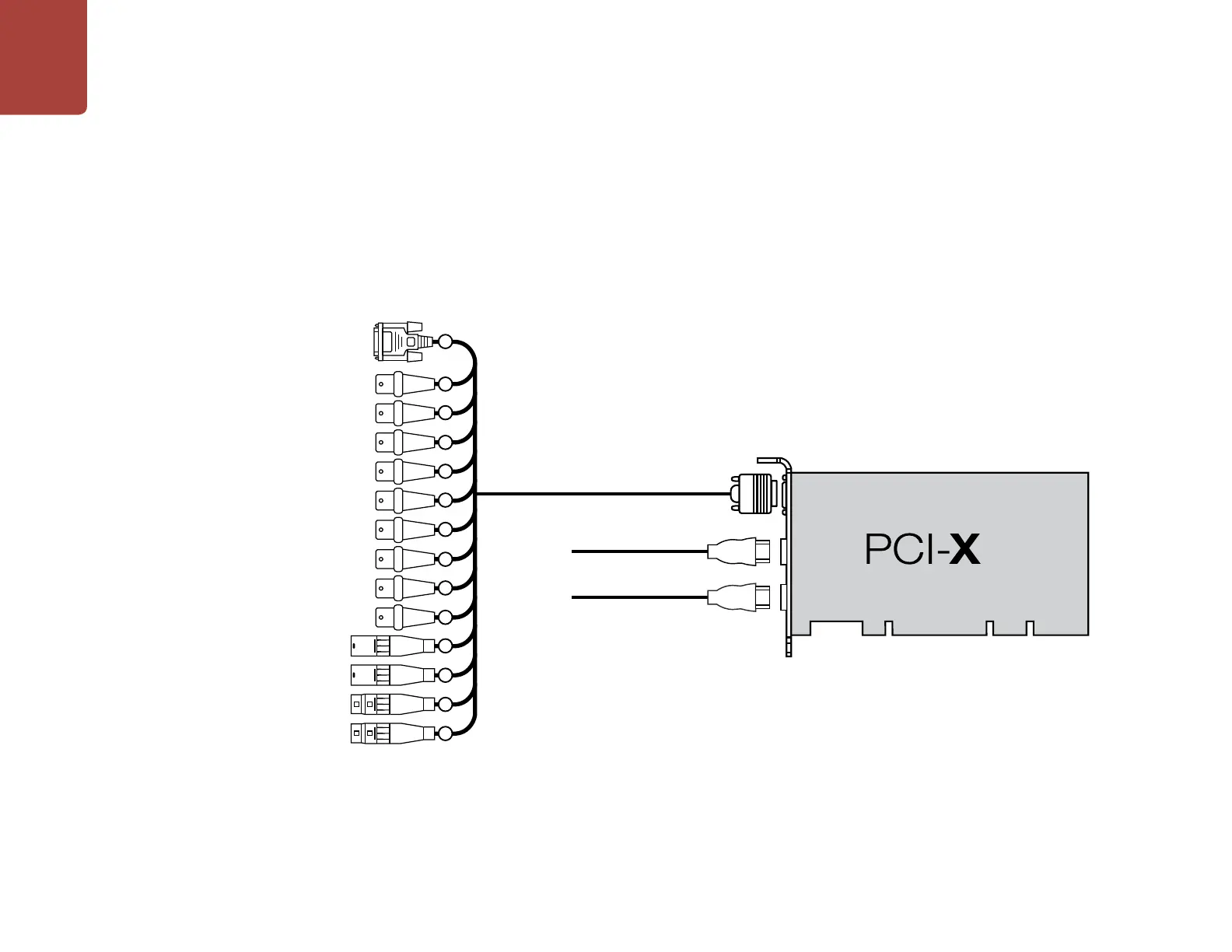

DeckLink HD Studio
The Professional Breakout Cable provided with the DeckLink HD Studio is the same as that provided
with the DeckLink HD Extreme and DeckLink HD Extreme 2 cards. The label “DeckLink HD Extreme
Professional Breakout Cable” has been intentionally applied to the illustration on this page to avoid
suggesting that a different breakout cable must be used with DeckLink HD Studio.
DeckLink HD Extreme
Professional Breakout Cable
2 3 4 5 6 7 8 9 10 11 12 13 14 15
2
3
4
5
6
7
8
9
10
11
12
13
14
15
2. Deck Control
3. R-Y Out
4. Y Out
5. B-Y Out
6. Ref In
7. R-Y In
8. Y In
9. B-Y In
10. SPDIF/AES Out
11. SPDIF/AES In
12. Audio Out Left
13. Audio Out Right
14. Audio In Left
15. Audio In Right
HDMI 4:2:2 Output
HDMI 4:2:2 Input
