Blackmagicdesign DeckLink Series User Manual

Previous DeckLink Cards – Product Diagrams
94
2 3 4 5 6 7 8 9 10 11 12 13 14 15
DeckLink HD Extreme
Consumer Breakout Cable
3
4
5
7
8
9
10
12
13
14
15
3. R-Y Out
2K/HD/SD-SDI Monitoring Output
2K/HD/SD-SDI Output (to deck)
2K/HD/SD-SDI Input (from deck)
HDMI Output
HDMI Input
4. Y Out
5. B-Y Out
7. R-Y In
8. Y In
9. B-Y In
10. AES/EBU Out
12. Audio Out Left
13. Audio Out Right
14. Audio In Left
15. Audio In Right

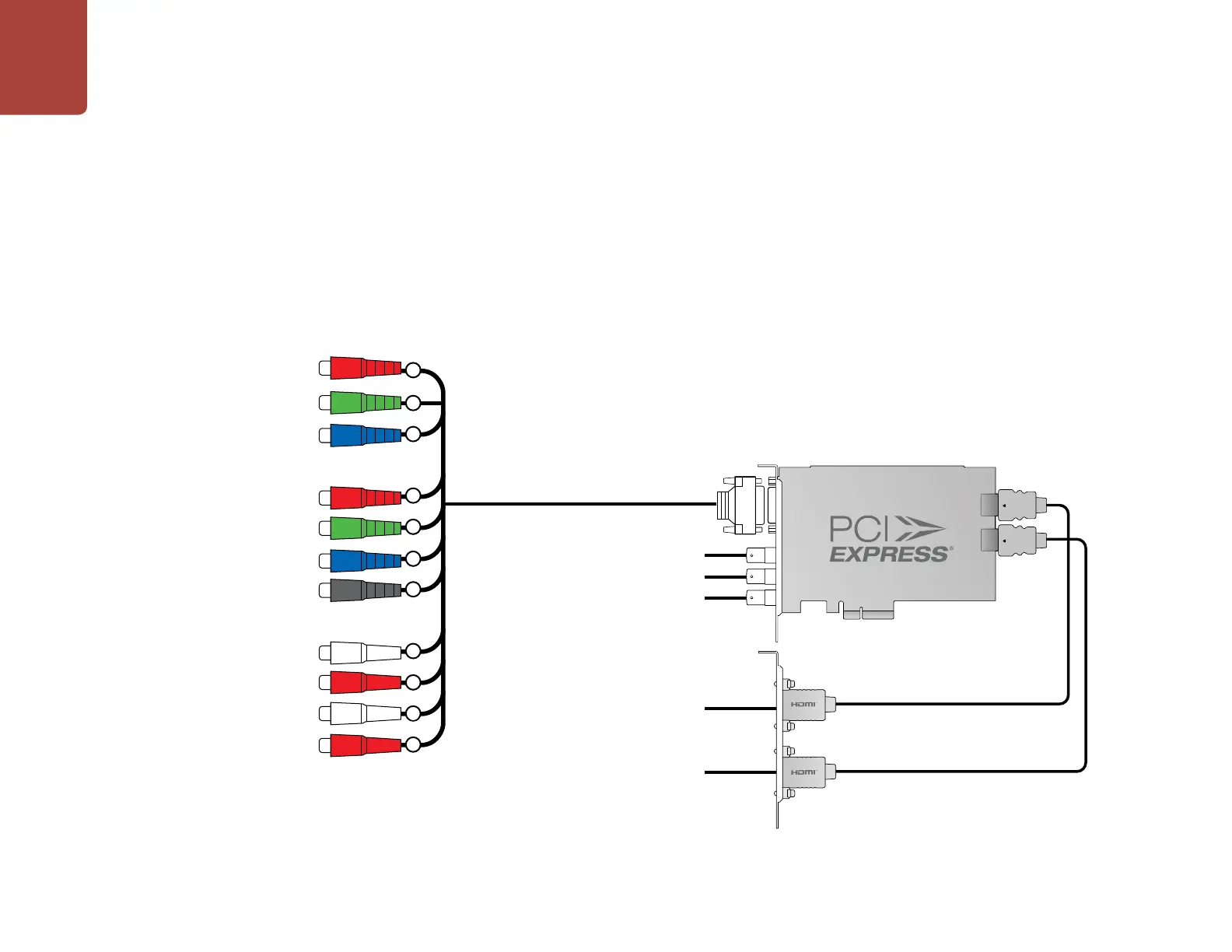

DeckLink HD Extreme 2 and Consumer Breakout Cable
The cable numbering is the same on both the Professional and Consumer Breakout Cables so it’s
easy to use either cable. For example, component video output uses cables 3, 4 and 5 on both
breakout cables.

Blackmagicdesign DeckLink Series Specifications

General

Interface	PCIe
Bit Depth	8-bit, 10-bit, 12-bit (Varies by model)
Chroma Sampling	4:2:2, 4:4:4 (Varies by model)
Category	Video Capture & Playback Card
Video Inputs	SDI, HDMI (varies by model)
Video Outputs	SDI, HDMI (varies by model)
Audio Inputs	Embedded in SDI/HDMI, Analog (varies by model)
Audio Outputs	Embedded in SDI/HDMI, Analog (varies by model)
Supported Resolutions	4K (varies by model)
Operating System Support	macOS, Windows, Linux
