Blackmagicdesign DeckLink Series User Manual

Previous DeckLink Cards – Product Diagrams
93
2 3 4 5 6 7 8 9 10 11 12 13 14 15

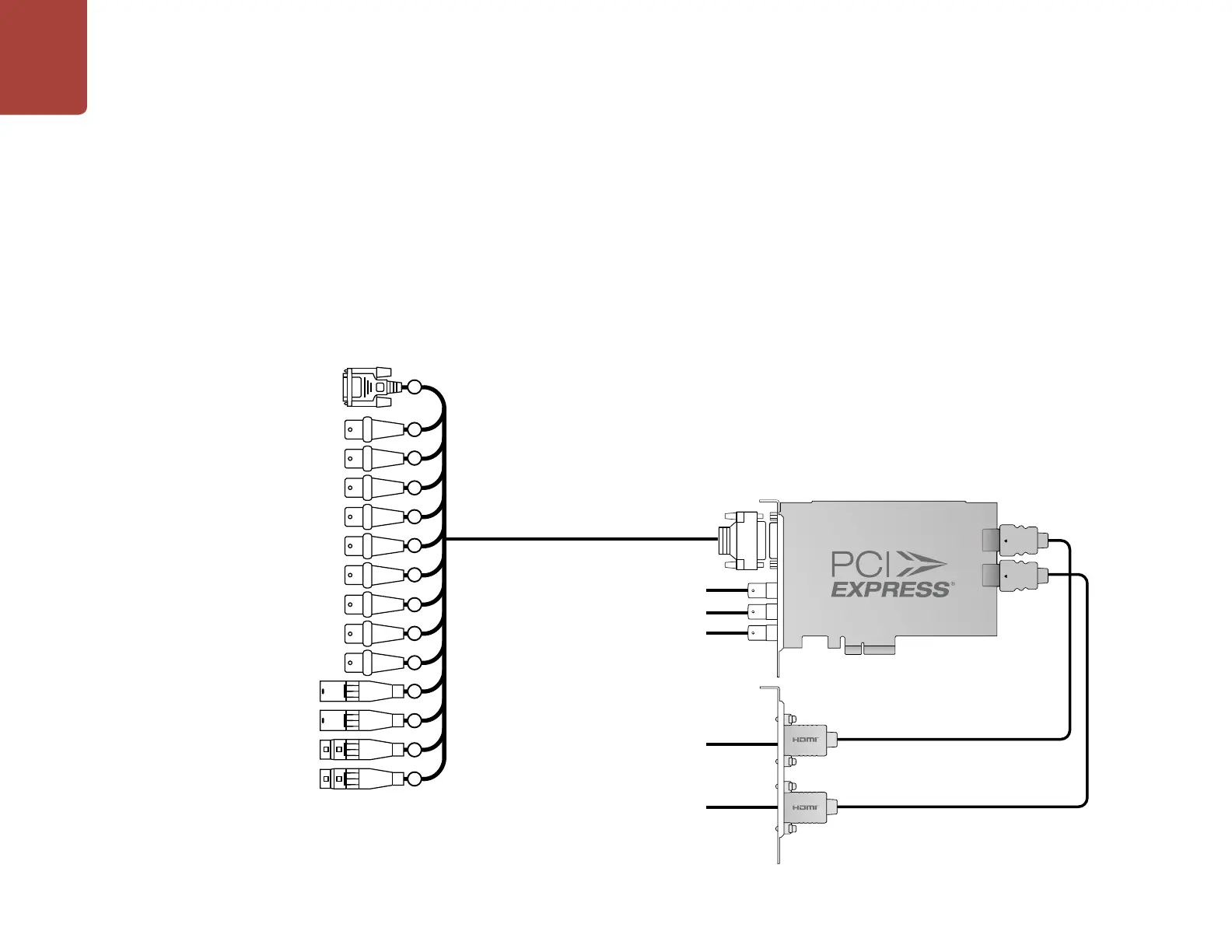

DeckLink HD Extreme
Professional Breakout Cable
2 3 4 5 6 7 8 9 10 11 12 13 14 15
2
3
4
5
6
7
8
9
10
11
12
13
14
15
2. Deck Control
3. R-Y Out
2K/HD/SD-SDI Monitoring Output
2K/HD/SD-SDI Output (to deck)
2K/HD/SD-SDI Input (from deck)
HDMI Output
HDMI Input
4. Y Out
5. B-Y Out
6. Ref In
7. R-Y In
8. Y In
9. B-Y In
10. AES/EBU Out
11. AES/EBU In
12. Audio Out Left
13. Audio Out Right
14. Audio In Left
15. Audio In Right
DeckLink HD Extreme 2 and Professional Breakout Cable
DeckLink HD Extreme 2 can use HDMI for connecting video cameras, televisions and projectors to
your computer for use with popular editing and design applications. DeckLink HD Extreme 2 captures
video in real-time directly from the HDMI output on HDV cameras, and will play back directly to large
screen HDTVs or HD projectors for client-monitoring and editing.

Blackmagicdesign DeckLink Series Specifications

General

Interface	PCIe
Bit Depth	8-bit, 10-bit, 12-bit (Varies by model)
Chroma Sampling	4:2:2, 4:4:4 (Varies by model)
Category	Video Capture & Playback Card
Video Inputs	SDI, HDMI (varies by model)
Video Outputs	SDI, HDMI (varies by model)
Audio Inputs	Embedded in SDI/HDMI, Analog (varies by model)
Audio Outputs	Embedded in SDI/HDMI, Analog (varies by model)
Supported Resolutions	4K (varies by model)
Operating System Support	macOS, Windows, Linux
