Blackmagicdesign DeckLink Series User Manual

Previous DeckLink Cards – Product Diagrams
106
7ft break-out cable
R-Y Input
B-Y Input
Y Input
R-Y Output
Genlock Input
Deck Control RS-422
SD-SDI Output
(monitoring)
SPDIF Output
(monitoring)
(L) Audio Input
(balanced analog)
(L) Audio Output
(balanced analog)
B-Y Output
Y Output
(composite monitoring)
(R) Audio Input
(balanced analog)
(R) Audio Output
(balanced analog)
2
3
4
5
7
6
8
9
10
11
12
13
14
2. AES-S/PDIF Output
(monitoring)
3. (L) Audio Output
(balanced analog)
6. (R) Audio Input
(balanced analog)
9. R-Y Input
4. (R) Audio Output
(balanced analog)
7. Y Input
10. Y Output
(composite monitoring)
5. (L) Audio Input
(balanced analog)
8. B-Y Input
11. B-Y Output
12. R-Y Output
13. SD-SDI Output
(Monitoring)
14. Genlock Input
15. Deck Control RS-422

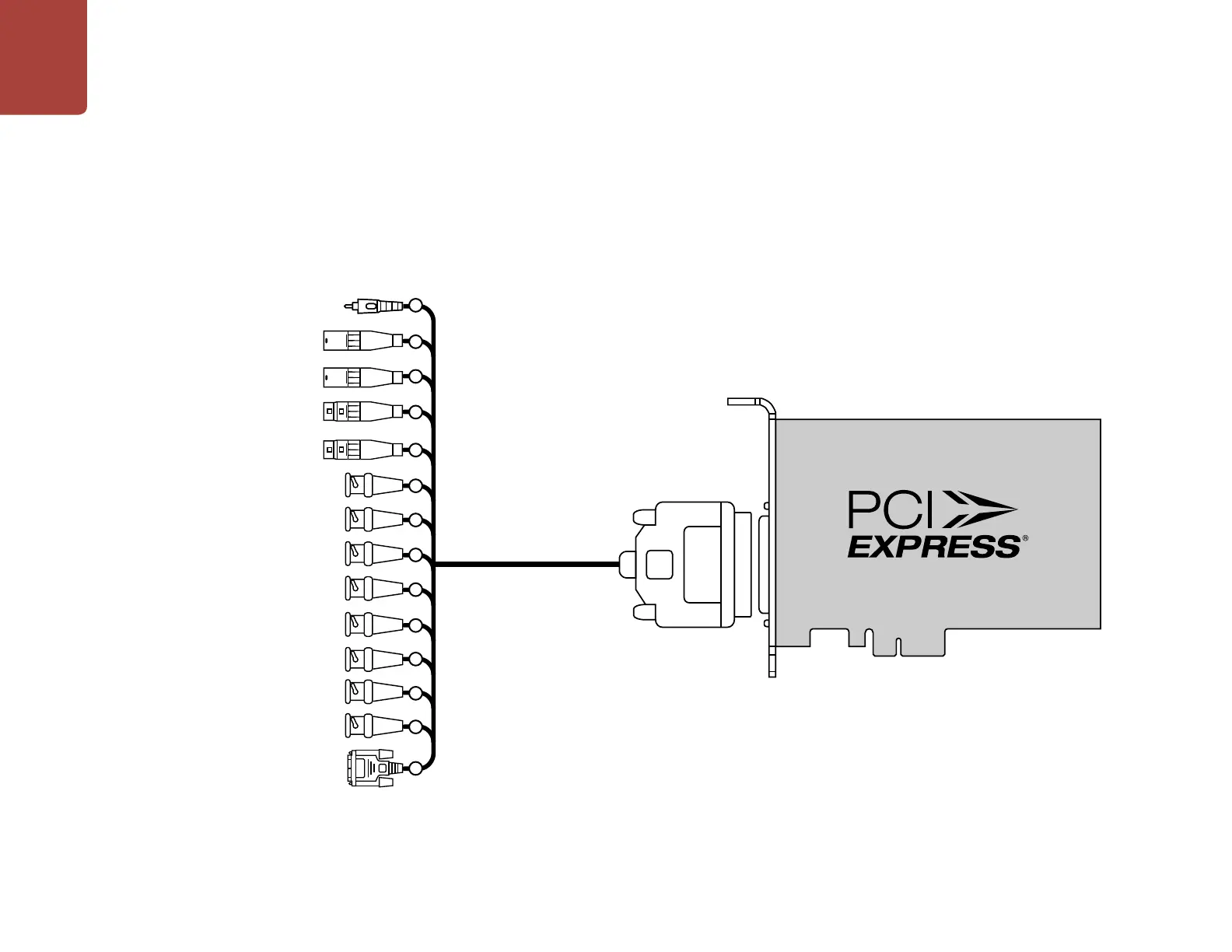

DeckLink SP
Breakout Cable
15
DeckLink SP PCIe
