Blackmagicdesign DeckLink Series User Manual

Product Diagrams
61

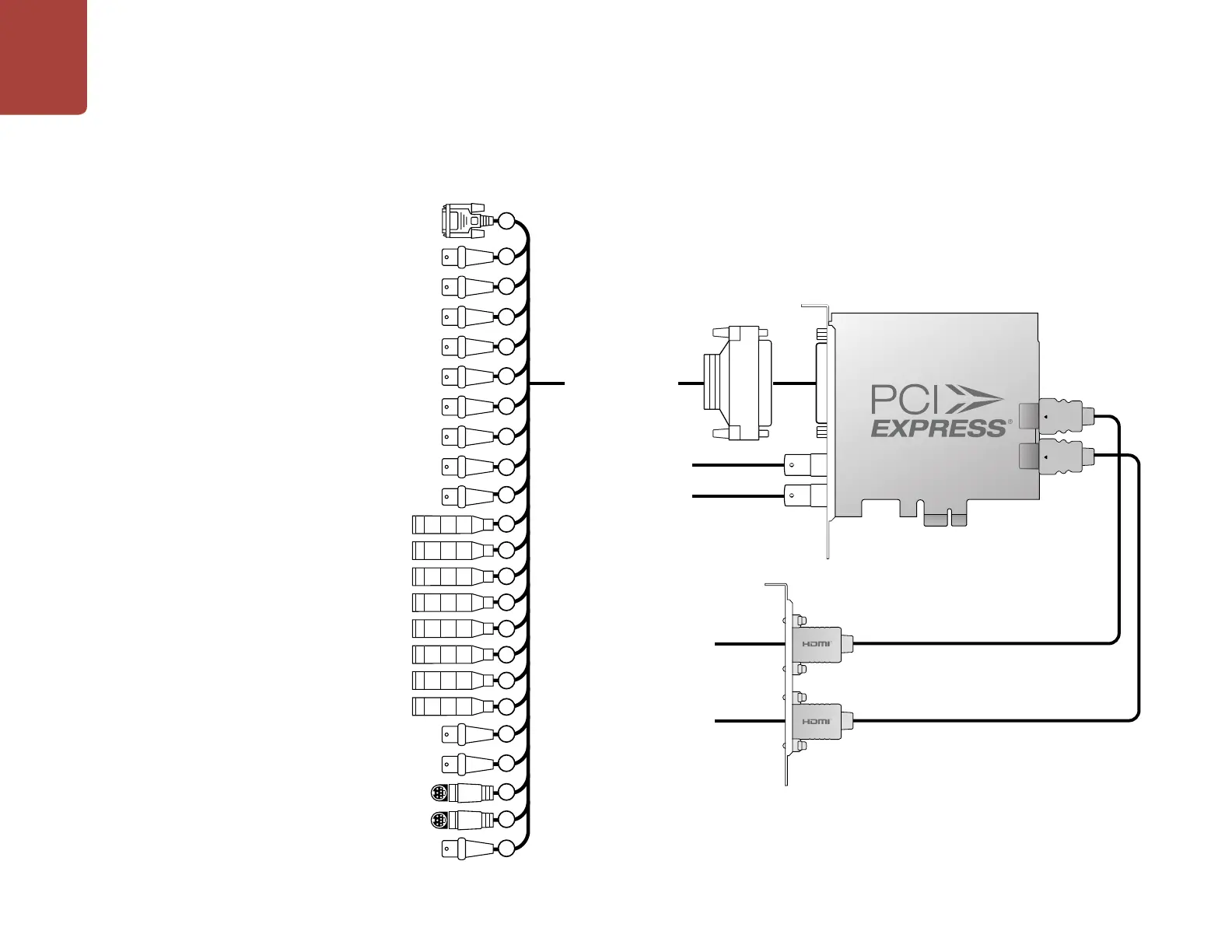

DeckLink Studio
Breakout Cable
HD/SD-SDI Output
HD/SD-SDI Input
19
18
17
16
15
14
13
12
11
10
09
08
07
06
05
04
03
02
20
21
22
23
24
2. RS-422 Deck Control
3. R-Y Out
4. Y Out
5. B-Y Out
6. Ref In
7. R-Y In
8. Y In
9. B-Y In
10. AES / EBU Out CH1&2
11. AES / EBU In CH1&2
12. Analog Audio Out 1
16. Analog Audio In 3
14. Analog Audio In 1
18. Analog Audio Out 3 or AES/EBU CH3&4 Out
20. Composite In
22. S-Video In
13. Analog Audio Out 2
17. Analog Audio In 4
15. Analog Audio In 2
19. Analog Audio Out 4 or AES/EBU CH5&6 Out
21. Composite Out
23. S-Video Out
24. Standard Definition SDI Out
DeckLink Studio 2
HDMI Output
HDMI Input

Blackmagicdesign DeckLink Series Specifications

General

Interface	PCIe
Bit Depth	8-bit, 10-bit, 12-bit (Varies by model)
Chroma Sampling	4:2:2, 4:4:4 (Varies by model)
Category	Video Capture & Playback Card
Video Inputs	SDI, HDMI (varies by model)
Video Outputs	SDI, HDMI (varies by model)
Audio Inputs	Embedded in SDI/HDMI, Analog (varies by model)
Audio Outputs	Embedded in SDI/HDMI, Analog (varies by model)
Supported Resolutions	4K (varies by model)
Operating System Support	macOS, Windows, Linux
