Connecting to a Sony HDCAM SR deck in 4:2:2

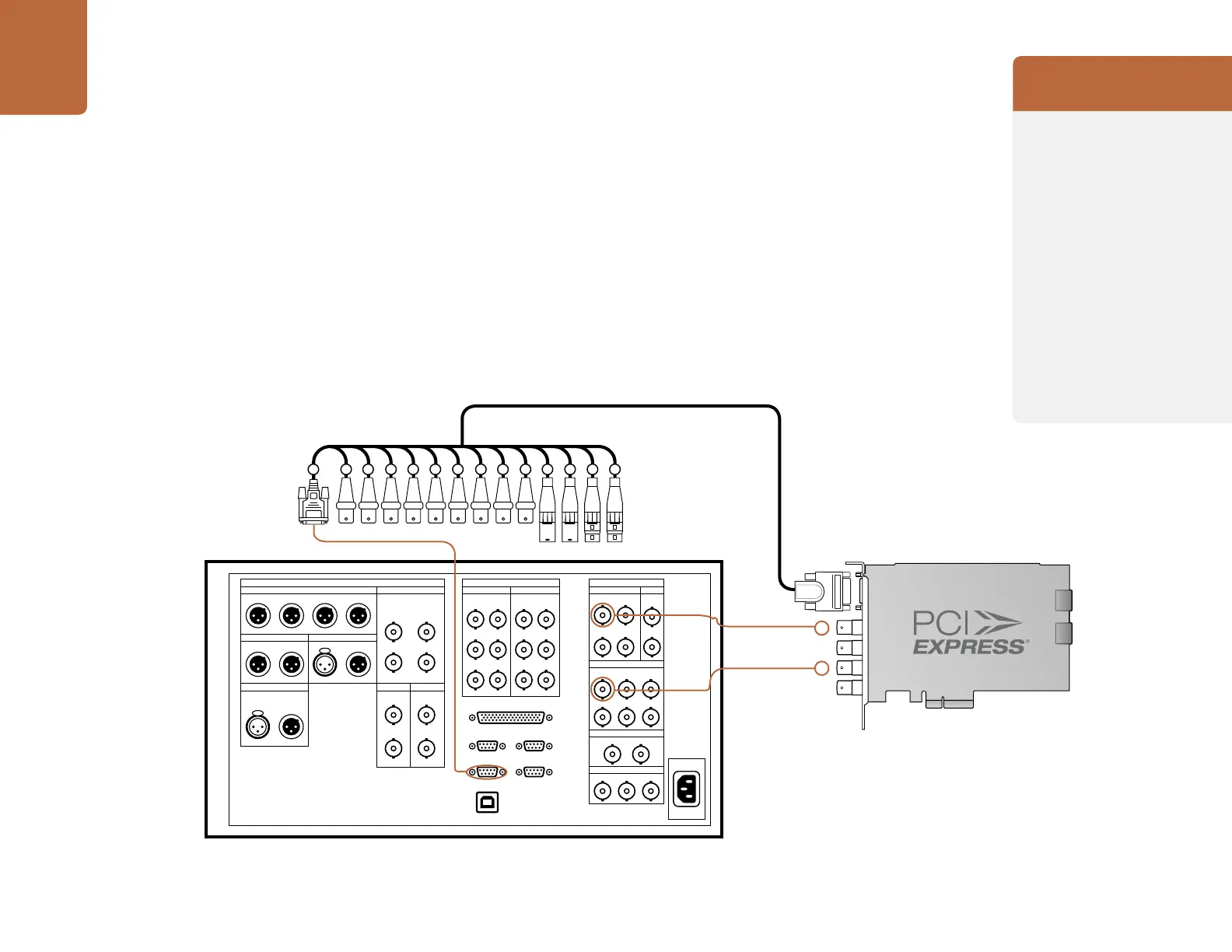

This example shows DeckLink HD Extreme 3D+ connected to a Sony HDCAM SR
™
series digital
deck in 4:2:2 HD mode for capture and playback to the HD-SDI deck. The HDMI, spare SDI and
component analog outputs can be used for local monitoring of 4:2:2 HD video.
