Previous DeckLink Cards – Product Diagrams
95

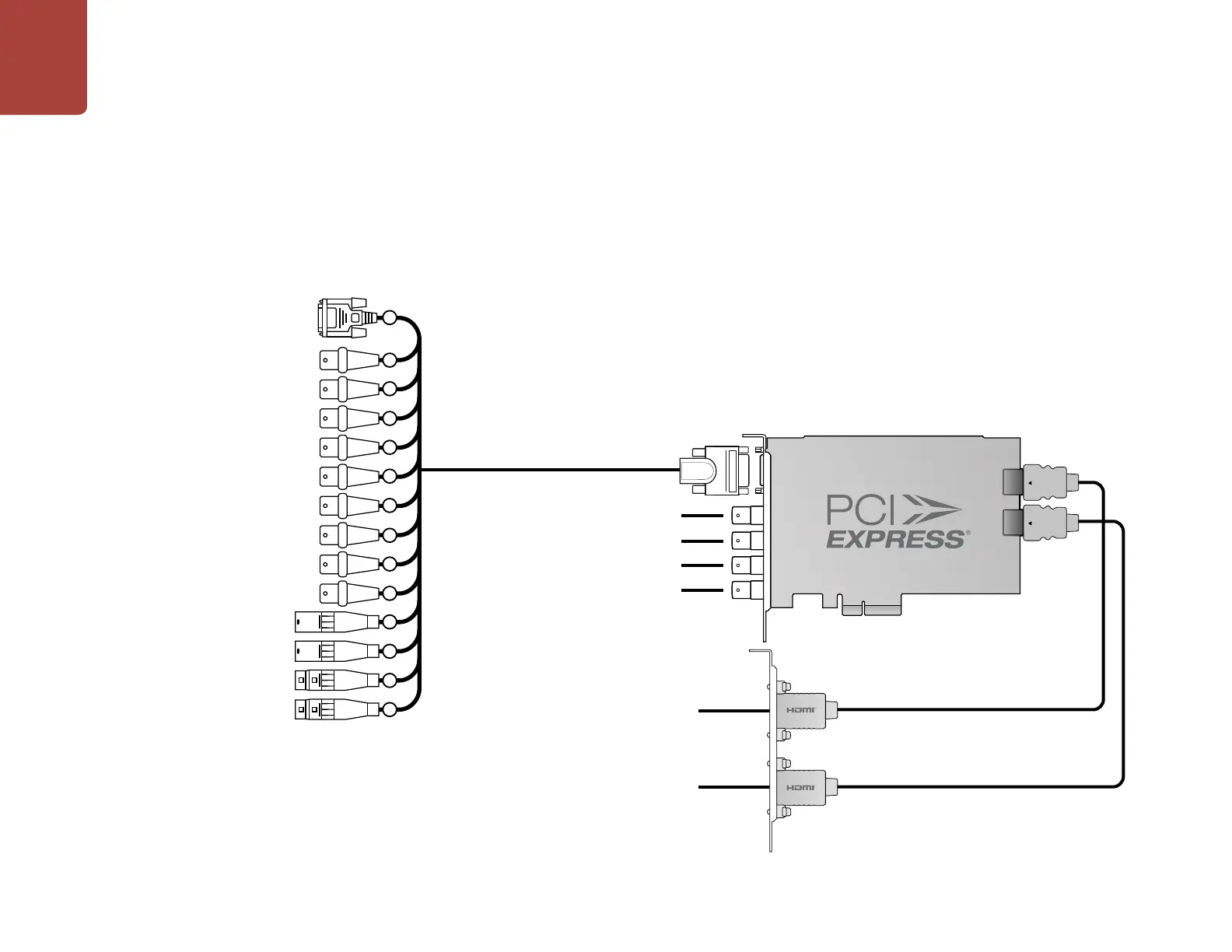

DeckLink HD Extreme 3
Breakout Cable
2 3 4 5 6 7 8 9 10 11 12 13 14 15
2
3
4
5
6
7
8
9
10
11
12
13
14
15
2. Deck Control
3. R-Y In
SD/HD-SDI Out Ch B
Downconverted HD, external key out
SD/HD-SDI Out Ch A
SD/HD-SDI In Ch A
4. Y In
5. B-Y In
6. Ref In
7. R-Y Out
8. Y Out
9. B-Y Out
10. AES/EBU Out
11. AES/EBU In
12. Audio Out Left
13. Audio Out Right
14. Audio In Left
15. Audio In Right
HDMI Output
HDMI Input
HD-SDI In Ch B
DeckLink HD Extreme 3
All SDI inputs and outputs support 3 Gb/s SDI and 2K.
