Blackmagic Media Express – Media List
23
Adding Stereoscopic 3D clips
Media Express supports stereoscopic playback of 2 individual movie clips when a DeckLink HD Extreme 3D+
card is installed in your system.
To add a stereoscopic 3D clip to the Media List:
 select a 3D project video format that is the same frame rate as your 3D media
 add the ‘Left eye’ file into the Media List
 right-click on the ‘Left eye’ file and select ‘Set right eye clip’ from the contextual menu
The film strip icon on the left of the list will change into a 3D film strip icon, indicating that the item is a now
a 3D clip comprising of 2 seperate video files.
The left and right eye clips will be displayed side by side in the Video Preview window to indicate you are
working with a 3D video project.
If you find the left and right eyes of a 3D stereo clip have been loaded the wrong way around:
 right-click the 3D clip in the Media List
 select ‘Swap eyes’ from the contextual menu

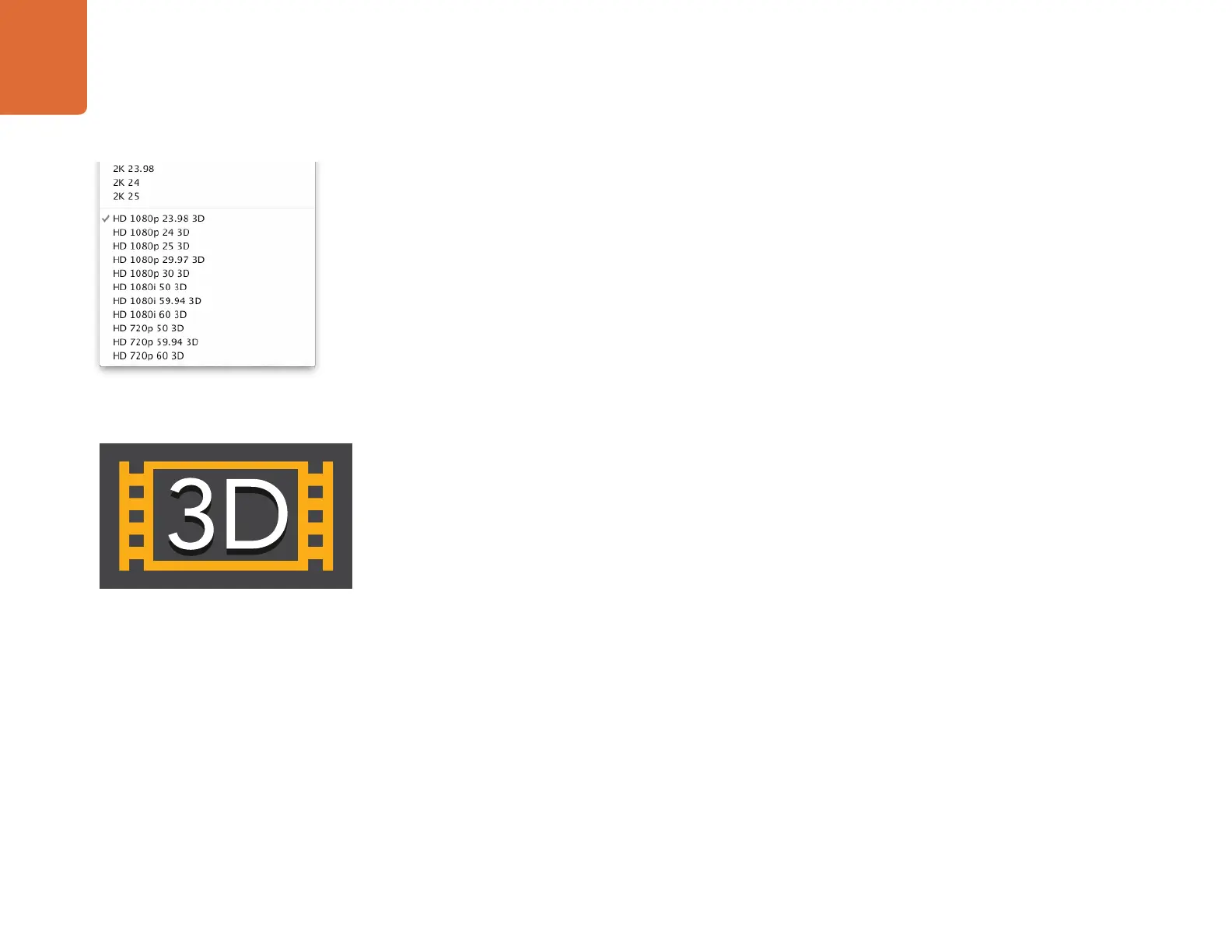

Select a 3D project video format that is the
same frame rate as your 3D media
The film strip icon on the left of the list will
change into a 3D film strip icon

Blackmagicdesign DeckLink Series Specifications

General

Interface	PCIe
Bit Depth	8-bit, 10-bit, 12-bit (Varies by model)
Chroma Sampling	4:2:2, 4:4:4 (Varies by model)
Category	Video Capture & Playback Card
Video Inputs	SDI, HDMI (varies by model)
Video Outputs	SDI, HDMI (varies by model)
Audio Inputs	Embedded in SDI/HDMI, Analog (varies by model)
Audio Outputs	Embedded in SDI/HDMI, Analog (varies by model)
Supported Resolutions	4K (varies by model)
Operating System Support	macOS, Windows, Linux
