Blackmagicdesign HyperDeck Extreme 8K HDR User Manual

3 To control the record deck, press ‘recorder’. The timecode and status indicators will now
match those of your HyperDeck recorder. Turn the search dial to confirm control or press
one of the transport buttons.
Now that you have established control over your HyperDeck recorder and Digi Beta deck,
youcan use the search dial or transport buttons to locate your ‘in’ and ‘out’ points.

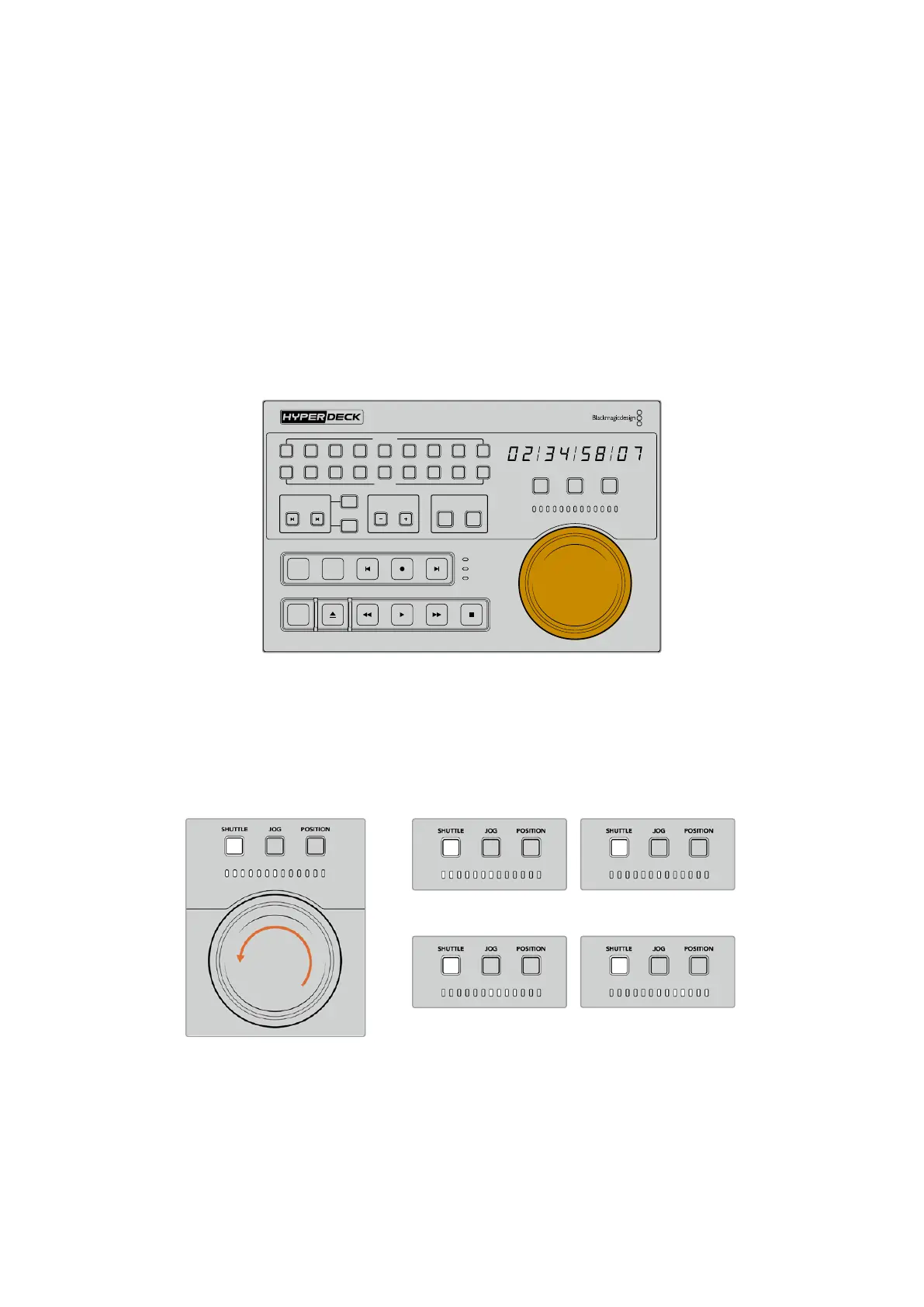

Finding your Timecode Point using the Search Dial
The HyperDeck Extreme Control search dial has three modes; shuttle, jog and position.
The selected button will illuminate when you choose your mode. The search direction indicators
will illuminate to show you which direction your are moving and at what speed. Onceyou are
spooled to your desired location, you can set your in and out points.
PLAYBACK
RECORD
TRIM PLAYER
REF
SERVO
REMOTE
RECORDER
HOURS MINUTES SECONDS FRAMES
IN
INPUT PREROLL SKIP REC SKIP
SHUTTLE JOG POSITION
EDIT EJECT REW PLAY F FWD STOP
OUT
ENTRY
DELETE
M
M
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
Shuttle
When you are in shuttle mode you can turn the dial to the left or right up to a maximum of
120 degrees to rewind or fast forward your tape or file based media. The further you turn the
dial, the faster the media will spool until the clutch engages to let you know you are at full
speed. To stop spooling, return the dial to the center position. You will feel a tap on the knob
when you reach the center.
Full reverse Stop position
Forward Full speed forward
Light indicators above the search
dialwill indicate the direction and
speed you are traveling inshuttle mode.
73HyperDeck Extreme Control Workflow
