PROCEdURE 7. ATTACH THE INSTRUMENT TO A MEdICAL CART (OPTIONAL)
The BladderScan BVI9400 is completely portable and can be easily moved and positioned for convenient
use. Installing the instrument on the optional mobile cart will allow you to move it, along with related
accessories, to the patient examining area or bedside.

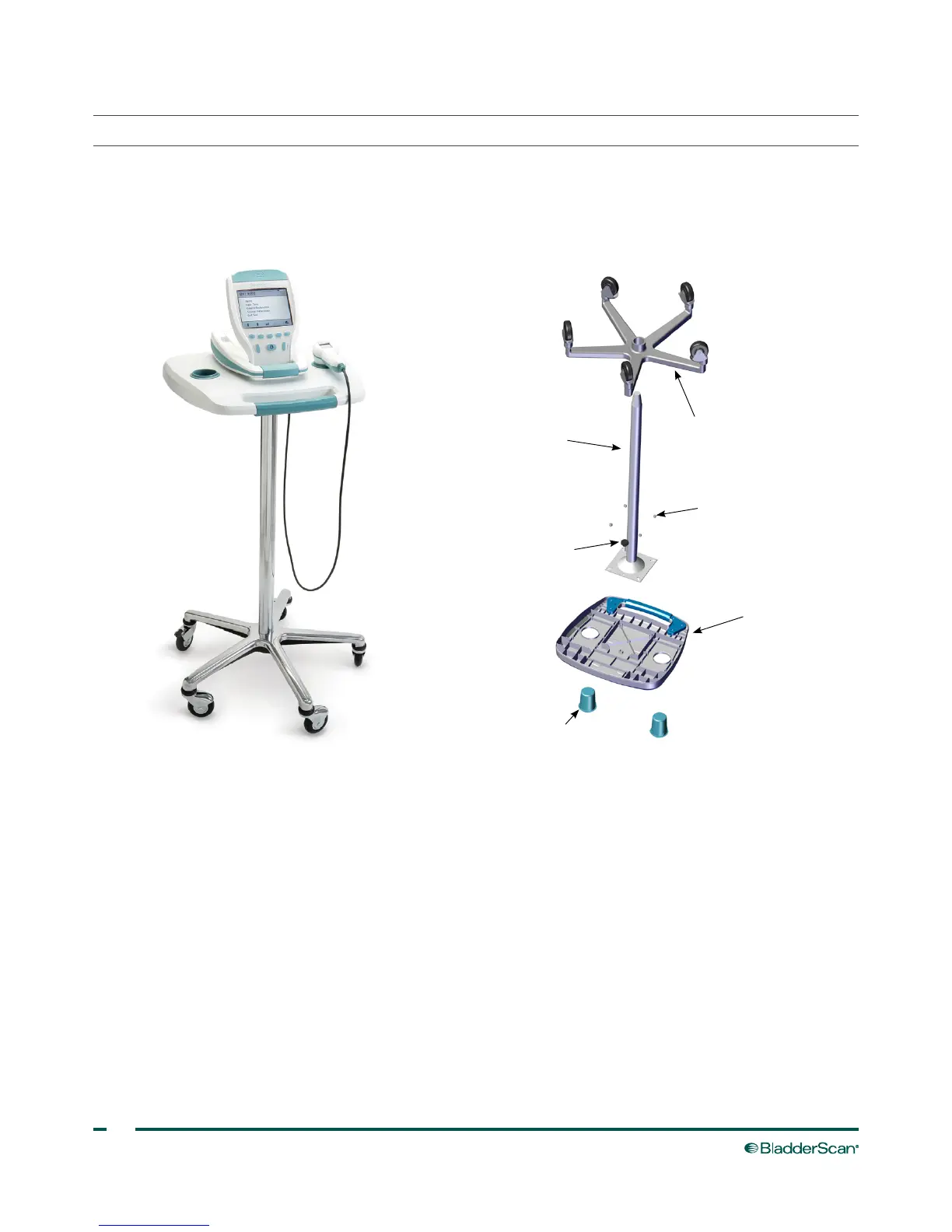

Figure 10. Assembled Medical Cart Figure 11. Medical Cart Assembly
Medical tray
Fluted knob
Post bracket screw
Cup insert
Post
Wheeled base
ASSEMBLE THE MEdICAL CART
1. Insert the post into the square relief on the underside of the medical tray.
2. Insert the four screws through the bracket on the top of the post into the molded inserts in the medical
tray and tighten securely.
3. If you want to permanently attach the post to the wheeled base, refer to Step 5 through Step 10.
If you want the ability to disassemble the medical cart at a later date, place the tray and post assembly
into the wheeled medical cart base.
4. Place the BVI9400 on the cart, aligning the rubber pads on the bottom of the device to the
corresponding indentations on the tray.
If you want to secure the instrument to the medical cart, refer to Step 12 through Step 13.
