Blodgett HV-100EM User Manual

6
Installation
Oven Assembly
POSSIBLE LEG BOLTING PATTERNS

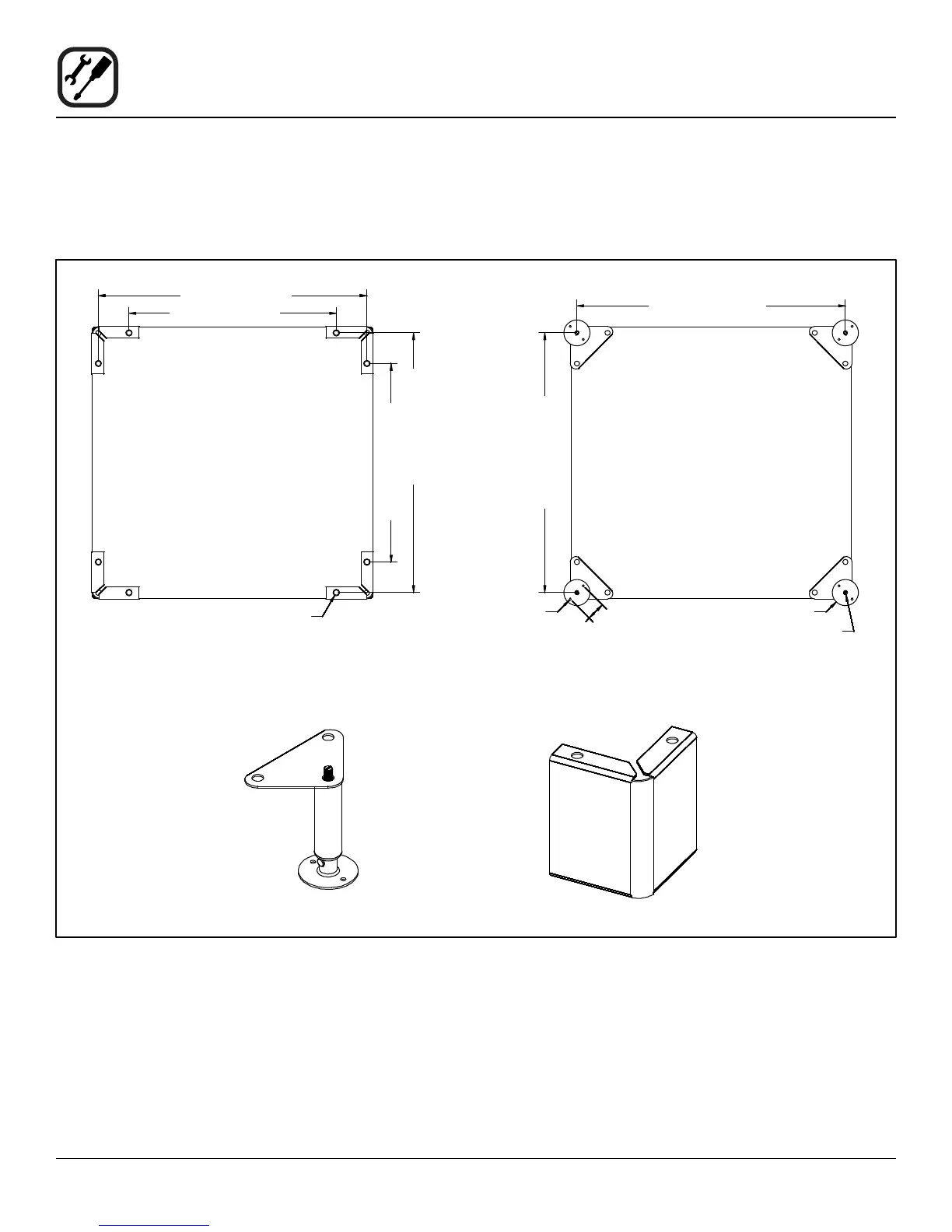

There are two leg mounting options. See Figure 1.
Figure 1
36.19 (2 PLACES)
27.94 (2 PLACES)
26.75 (2 PLACES)
35.00 (2 PLACES)
.875 (8 PLACES)
35.00 (2 PLACES)
36.19 (2 PLACES)
.313 (8 PLACES)
2.50
(4 PLACES)
3.50 (4 PLACES)
.56 HOLE (4 PLACES)
See page 4 for
part numbers

Blodgett HV-100EM Specifications

General

Brand	Blodgett
Model	HV-100EM
Category	Convection Oven
Language	English
