7
Installation
Oven Assembly

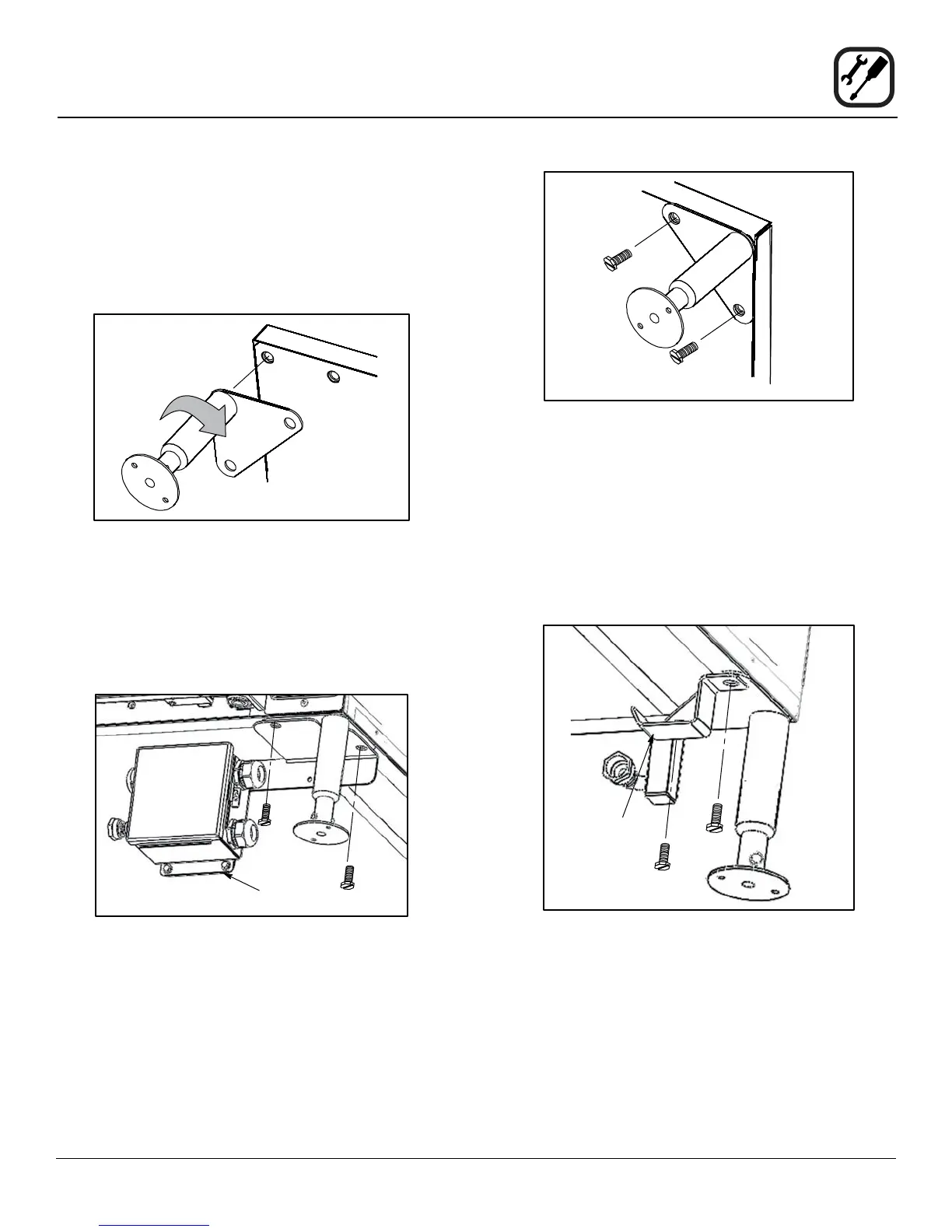

LEG ATTACHMENT
1. Align the threaded stud on the right front leg to the
bolt hole located in the bottom corner of the oven.
Turn the leg clockwise and tighten to the nearest full
turn.
2. Align the leg plate holes with the bolt holes.
Figure 2
3. Install the utility box before securing the right front
leg. Align the holes in the utility box bracket to the
holes in the leg plate. See Figure 3.
4. Secure the leg and utility box with the two 3/4” bolts
provided.
Utility Box
Figure 3
5. Repeat steps 1, 2 and 4 with the left front leg.
Figure 4
6. Tip the oven up on the newly installed front legs.
7. Repeat the above steps for the right rear leg.
Install the retainer bracket before securing the right
rear leg. Align the holes in the retainer bracket to the
holes in the right leg plate. See Figure 5.
8. Secure the leg and retainer bracket with the two 3/4”
bolts provided.
Retainer
Bracket
Figure 5
9. Install the left rear leg.
10. Tip the oven onto the feet and place in position. Level
the oven by screwing the adjustable feet in or out as
necessary.
