Blodgett Mark V Series User Manual

MARK V
5-1
DOOR ASSEMBLY
DOOR
1. Open the door. Remove the handle from the
left hand door.
2. Remove the three (3) machine screws located
along the bottom edge of the door.
3. Lift the door slightly. Pull forward until it clears
the support.
4. To remove from the oven, pull the door down
until the hinge pin is clear.
5. Reverse steps 1-4 to replace.
DOOR ARM SUPPORT ASSEMBLY
Replacement
1. Remove the trim cover.
2. Remove the doors as described.
3. Remove the five bolts holding the door arm
support to the oven frame.
4. Remove and replace the door arm assembly.
Rebuilding
The door arm support assembly contains five reĆ
placeable parts.
D Chain and Turnbuckle
D Left Hand Door Arm
D Right Hand Door Arm
D Sprockets
D Door Switch Cam
Use the following steps to rebuild a door arm supĆ
port assembly.
1. Remove the assembly from the oven as deĆ
scribed.
2. Remove the spiral pins from the left hand door
arm support and sprocket assembly. Remove
the left hand door arm support from the
sprocket assembly.
Repeat for the right hand door.
3. Install the new parts as needed.
4. Reverse this procedure to install the assembly.

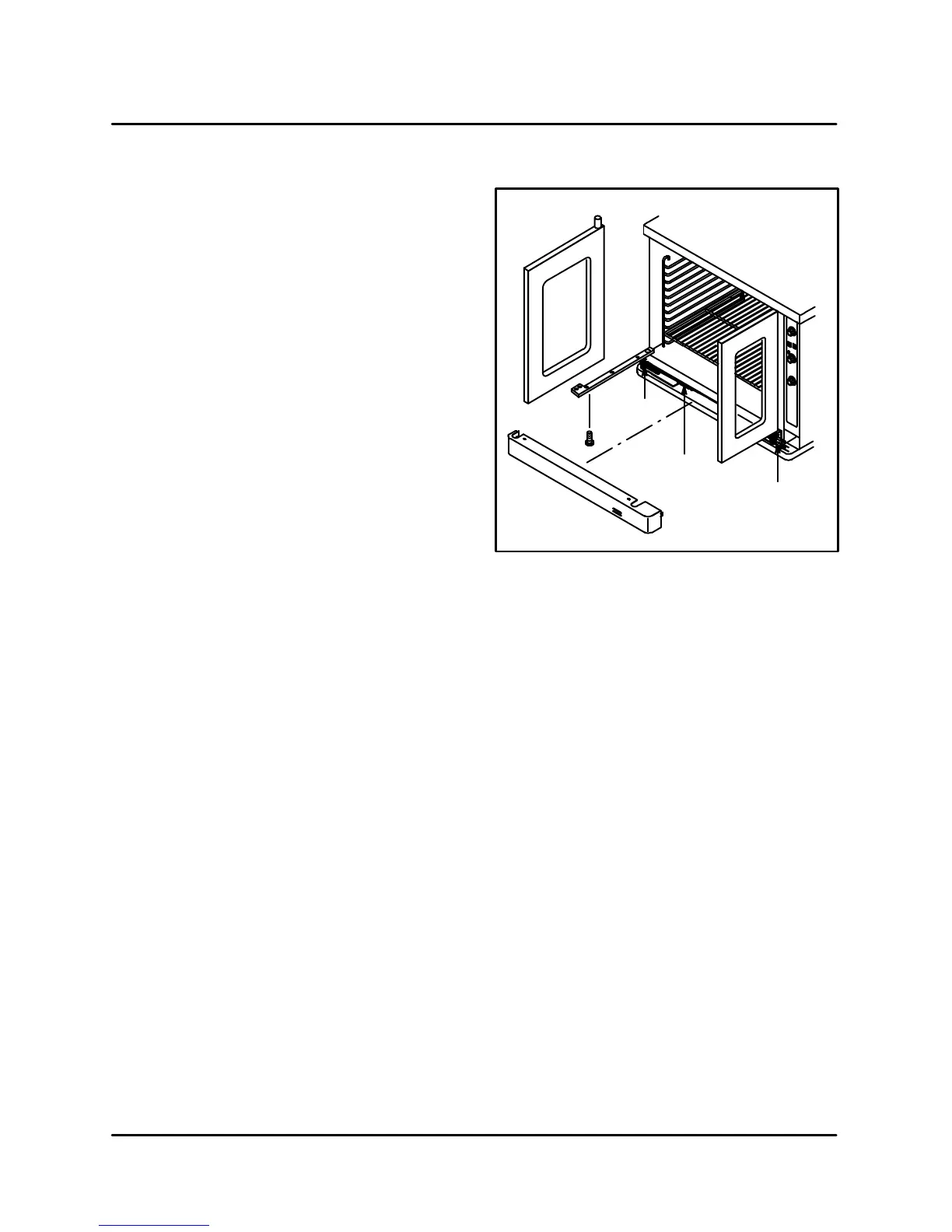

Turnbuckle
Sprocket
Sprocket
FIGURE 1

Blodgett Mark V Series Specifications

General

Model	Mark V Series
Type	Convection Oven
Configuration	Single or double deck
Gas Type	Natural Gas or Propane
Power	Gas or Electric
Temperature Range	200 - 500°F (93 - 260°C)
Dimensions	Varies by model
Weight	Varies by model
Construction	Stainless steel front, top, and sides
Pan Size	18"x26"
BTU	Varies by model
Voltage	Varies by model
Warranty	1 year parts and labor
Control Type	Solid state controls
