CALIBRATION AND ADJUSTMENT
3-4
SOLID STATE MANUAL
1. Place a pyrometer in the center of the oven.
2. Turn the mode selector switch to cook.
3. Turn the thermostat to 350_F (177_C).
4. When the red indicator light goes out, check
the pyrometer to determine oven temperature.
5. If this reading is within 10_ (6_C) of the thermoĆ
stat setting no adjustment is needed.
If the reading is greater than 10_ (6_C) adjust
as follows:
A.) Locate the trim pot on the solid state temĆ
perature board.
B.) Turn the adjustment screw to raise or lower
the setting.
LIGHT OFF
OVEN READY
THERMOSTAT
TIMER

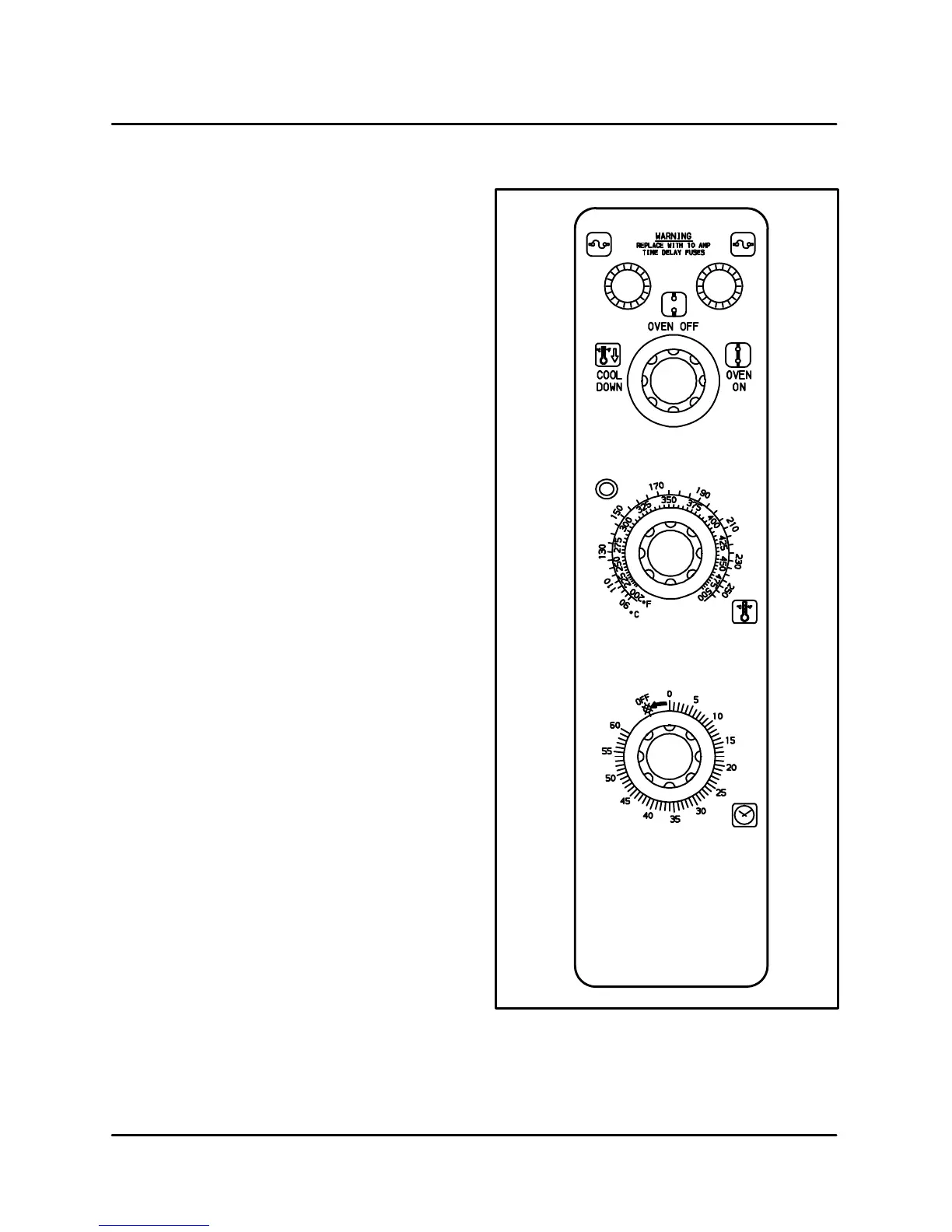

FIGURE 7
