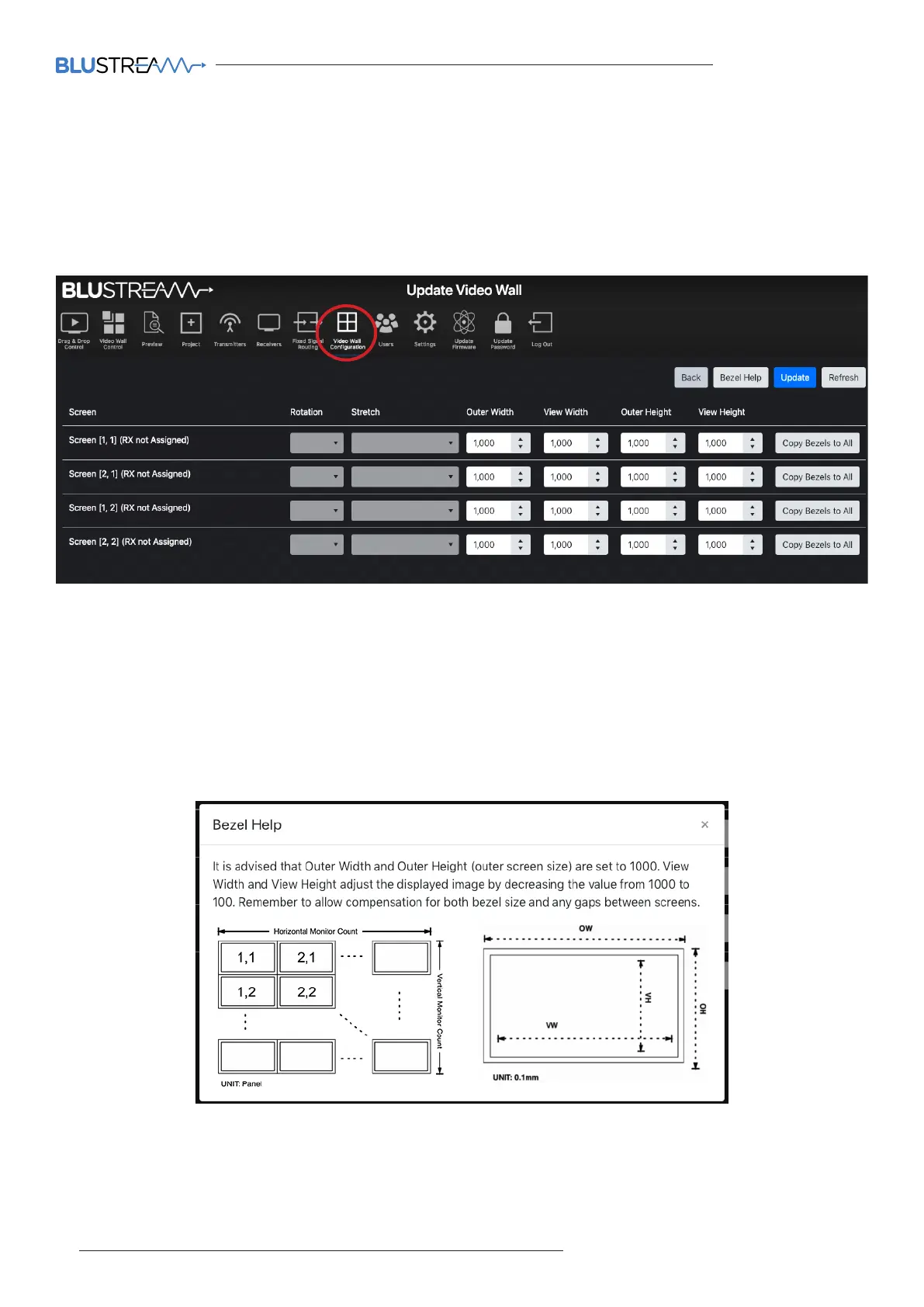

Web-GUI - New Video Wall Configuration - Bezel Settings
This page allows for the compensation for the size of each screen bezel within the Video Wall, or alternatively for any
gaps inbetween screens. By default, the Multicast system will insert the bezels of the Video Wall screens “inbetween”
the overall image (splitting the image). This will mean that the bezels of the screens do not sit “over” any part of the
image. By adjusting the Outer Width (OW) vs View Width (VW), and the Outer Height (OH) vs View Height (VH), the
screen bezels can be adjusted to sit “on top” of the image that is being displayed.
All units are by default: 1,000 - this is an arbitary number. To compensate for bezel size of the screens being used,
reduce the View Width and View Height accordingly to compensate for the size of the bezels. Once the outcome of
the corrections required has been obtained, the 'Copy Bezels to All' button can be used to copy the settings to each
display. Click 'Update' to confirm settings, and 'Back' to return to the previous Update Video Wall screen.
The 'Bezel Help' button opens a pop-up window with guidance to the correction and adjustment of these settings.
