BONFIGLIOLI active cube 201 Quick Start Guide

09/08 33

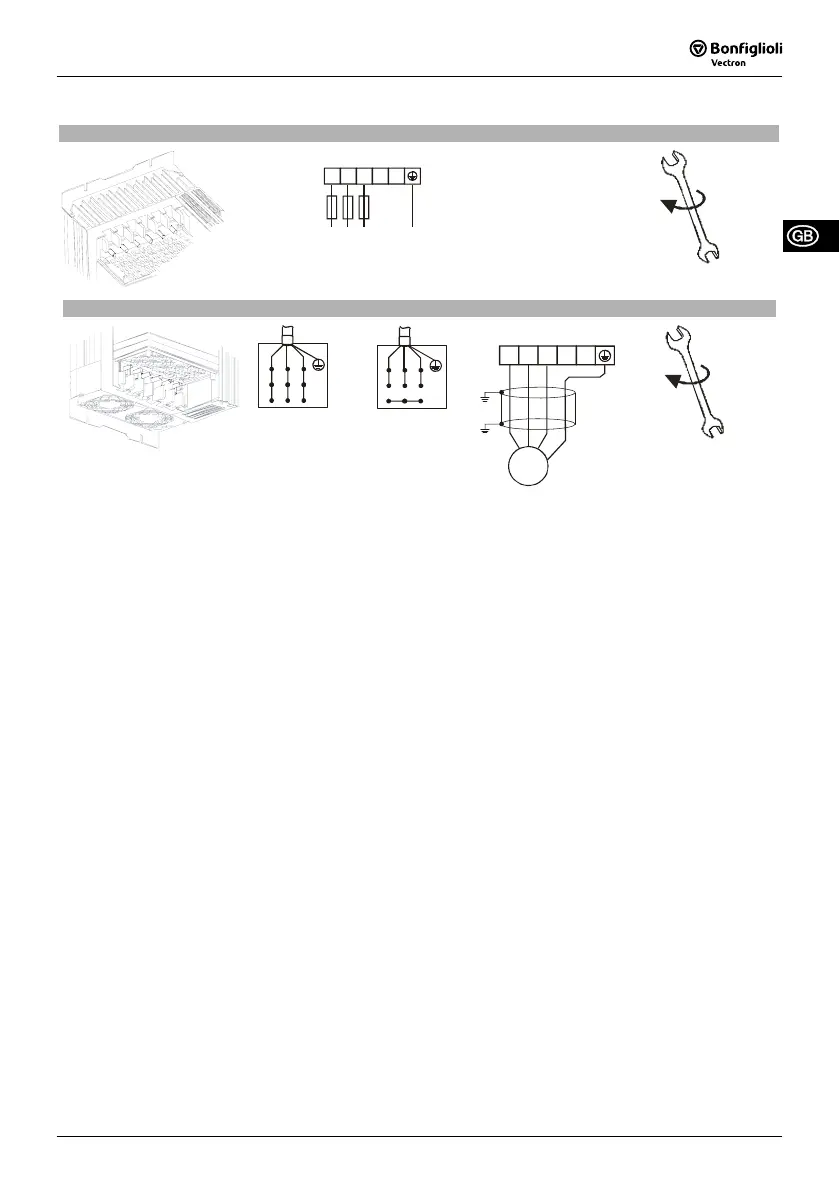

3.5 ACTIVE Cube 401 (37.0 to 65.0 kW)
Mains power connection, X1
X1
+
-
L1
L2
L3
L1
L2
L3
PE
3ph / 400V AC
X1
8 Nm
70.8 lb-in
Motor power connection, X2
X2
Star connection
VW
U
Delta connection
V
W
U
X2
V
W
U
Rb2
Rb1
M
3~
8 Nm
70.8 lb-in
Use the terminals R
b1
and R
b2
to connect a brake resistor.
Note: Optional, the inverters in this size can be purchased without brake chopper and are then not provided with
the terminal Rb2 for a brake resistor connection.
