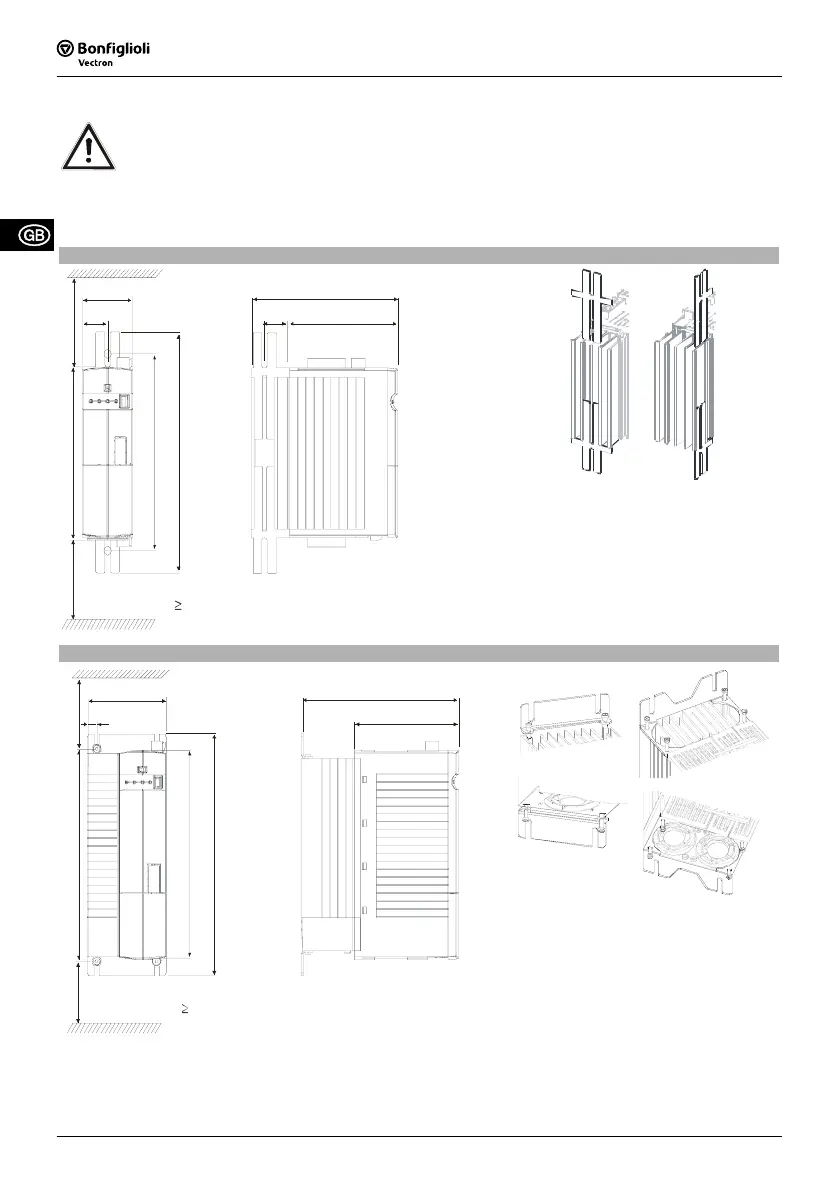

2 Mechanical Installation
Warning!
• During installation the following installation and safety instructions as well as the instructions in the
additional manuals on CD must be complied with.
• During assembly, make sure that no foreign particles (e.g. filings, dust, wires, screws, tools) can
get inside the frequency inverter.
• Mount the devices with sufficient clearance to other components so that the cooling air can circu-
late freely. Avoid soiling by grease and air pollution by dust, aggressive gases, etc.
ACTIVE Cube 201 (up to 3.0 kW) und ACTIVE Cube 401 (up to 4.0 KW)
b
b1
a1
a
a2
c
c1
x
x
b1
x
100
mm
Insert the long side of the fixing plate in
the heat sink.
Screw the fixing plate to the mounting
plate.
ACTIVE Cube 201 (4.0 to 9.2 kW) und ACTIVE Cube 401 (5.5 to 15.0 kW)
bottom M4x60
top M4x20
b
b1
a
a1
a2
c
x
x
c1
x
100
mm
Screw the fixing brackets to the heat sink
of the frequency inverter and the assembly
panel.
09/0828
