BONFIGLIOLI active cube 201 Quick Start Guide

09/08 29

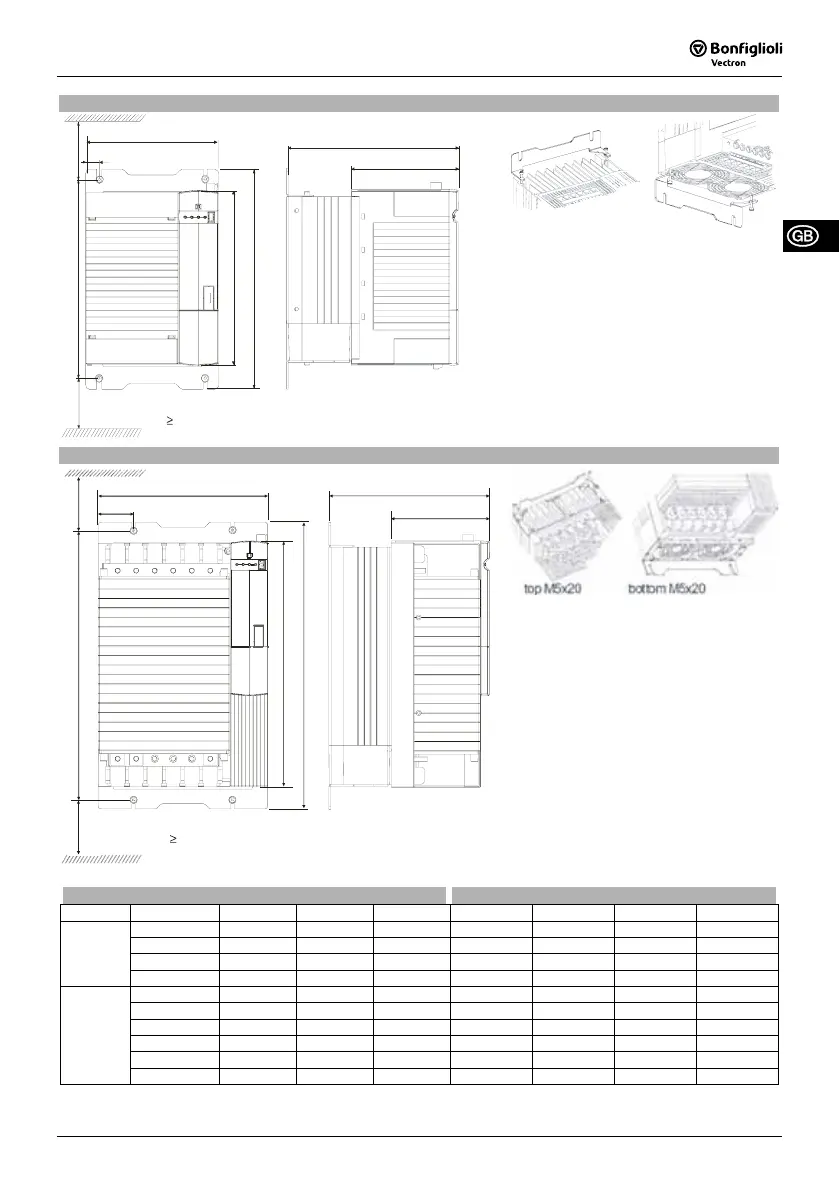

ACTIVE Cube 401 (18.5 to 30.0 kW)
top M4x20
bottom M4x70
c
c1
a
a1
a2
x
b
b1
x
x
100
mm
Screw the fixing brackets to the heat sink
of the frequency inverter and the assembly
panel.
ACTIVE Cube 401 (37.0 to 65.0 kW)
a
a1
a2
x
b
b1
x
c
c1
x
100
mm
Screw the fixing brackets to the heat sink
of the frequency inverter and the assembly
panel.
Dimensions without optional components:
Dimensions in mm
Installation dimensions in mm
kW a b c a1 a2 b1 c1
0.25...1.1 190 60 178 210...230 260 30 133
1.5...3.0 250 60 178 270...290 315 30 133
4.0…5.5 250 100 200 270...290 315 12 133
ACTIVE
Cube 201
7.5…9.2 250 125 200 270...290 315 17.5 133
0.55...1.5 190 60 178 210...230 260 30 133
1.85...4.0 250 60 178 270...290 315 30 133
5.5...9.2 250 100 200 270...290 315 12 133
11.0...15.0 250 125 200 270...290 315 17.5 133
18.5...30.0 250 200 260 270…290 315 20 160
ACTIVE
Cube 401
37.0…65.0 400 275 260 425…445 470 20 160
