BONFIGLIOLI active cube 201 Quick Start Guide

30 09/08
ACTIVE Cube 401 (75.0 to 132.0 kW)
a
b
c
c1
c2
c3
b1
b2
b3
a1
x
x
x
300 mm
x
300 mm
The diameter of the mounting holes is 9 mm.
Screw the heat sink back panel of the frequency inverter to the assembly panel.

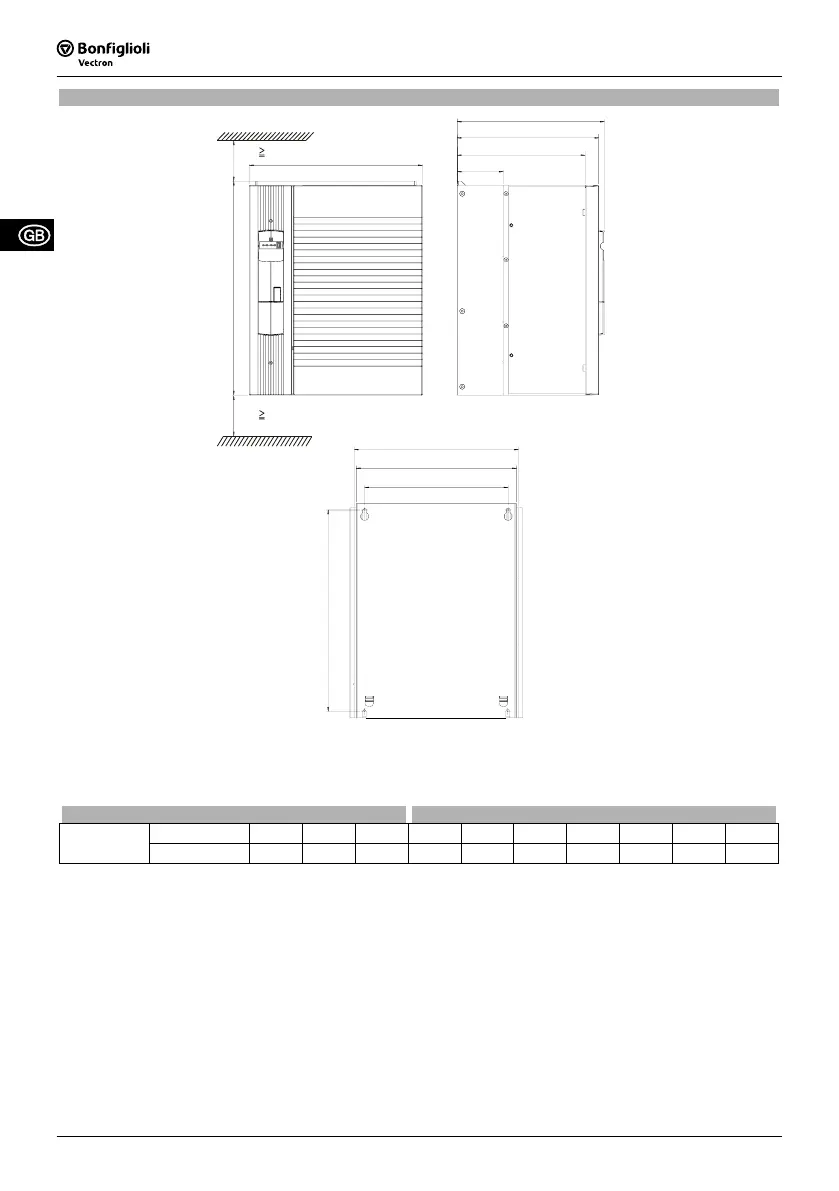

Dimensions without optional components:
Dimensions in mm
Installation dimensions in mm
kW
a b c a1 b1 b2 b3 c1 c2 c3
ACTIVE
Cube 401
75.0…132.0
510 412 351 480 392 382 342 338 305 110
09/0830
