Bosch Access Modular Controller 2 User Manual

12 en | Introduction Access Modular Controller 2
2022-11 | V04 |
Guide d'installation
Bosch Security Systems B.V.
3.2.2 Status display

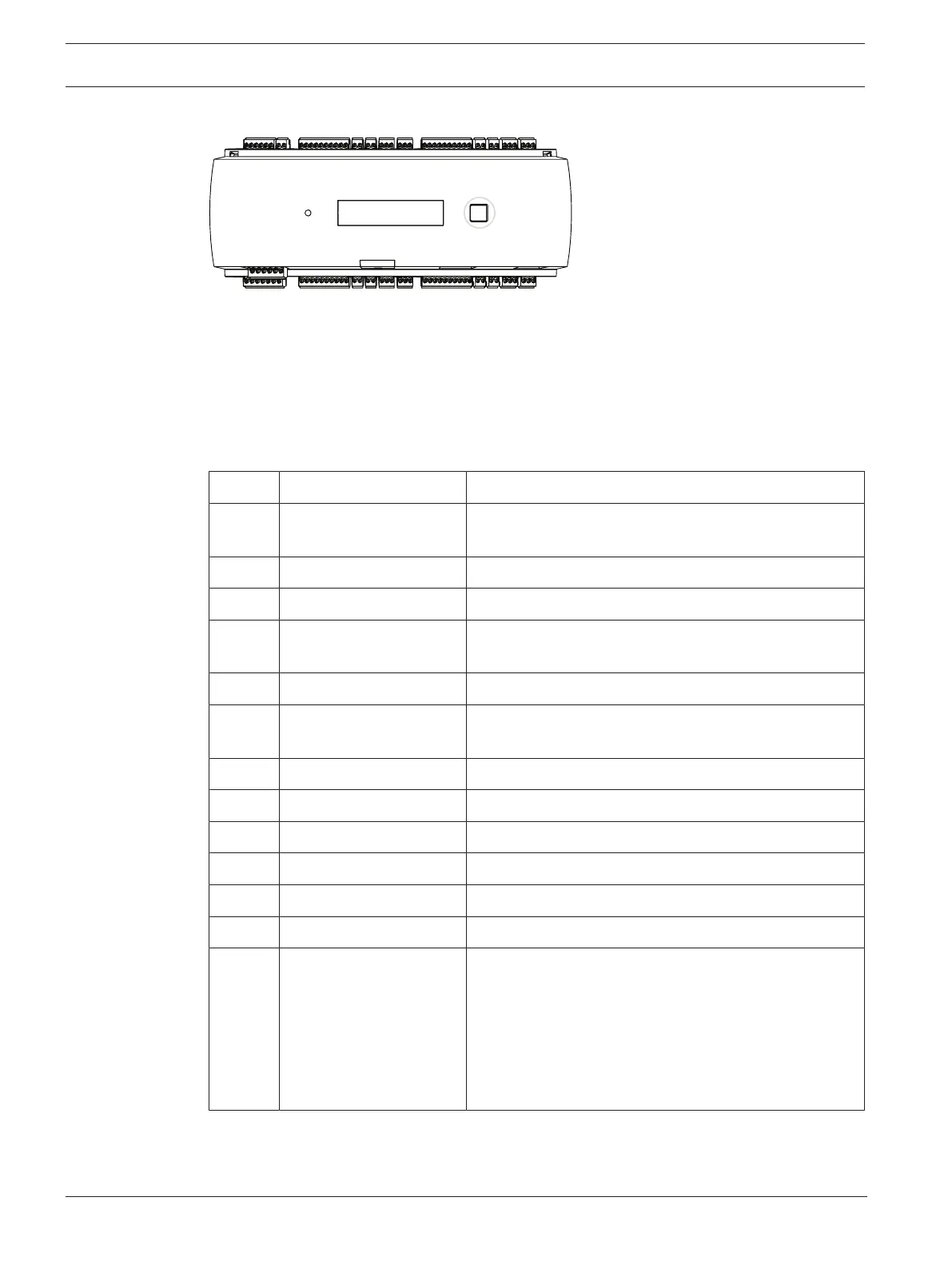

Figure3.6: Dialog button of the controller
The liquid crystal display delivers status information about the controller. Push the dialog
button to switch between different modes.
The selected display mode remains set until the next time the button is pressed.
The display pages depend on the firmware loaded into the controller. The order of the display
pages available on delivery (Bootloader V00.49) is shown in the following table.
For information on display pages available for the different firmware (FW) variants, refer to
Status display, page 48 .
Push Display (Example) Description
0 V00.49 dd.mm.yy Bootloader version by factory
dd.mm.yy release date of the firmware
1 S/N1: 0910024419 Serial number 18 digits - Part1 10 digits
2 S/N2: 22850034 Part 2 - 8 digits
3 11.18 12:24:18 S Current date and time (MM.DD hh:mm:ss)
(S) = daylight saving
4 MAC 001B860012AB Network device address (MAC)
5 N AMC-1234-5678 Network name of the controller (max. 14 char.)
See Configuring Ethernet interface, page 34 .
6 I 192.168.10.18 IP-address of the controller
7 G 192.168.10.255 IP-address of the gateway
8 M 255.255.255.0 Subnetmask
9 H 192.168.10.10 IP-address of the host computer
10 DHCP 1 DHCP-status: 1 = on; 0 = off
11 D 192.168.10.1 IP-address of the DNS server
12 Host: + "C" Host activity:
+ = online
- = offline
"C" = Counter (0 to 9) of the received data
packages from the host interface.
RS 485 Bus connection:
A = Address 1 … H = Address 8
