Bosch Access Modular Controller 2 User Manual

Access Modular Controller 2 Installing | en 23
Bosch Security Systems B.V.
Guide d'installation
2022-11 | V04 |

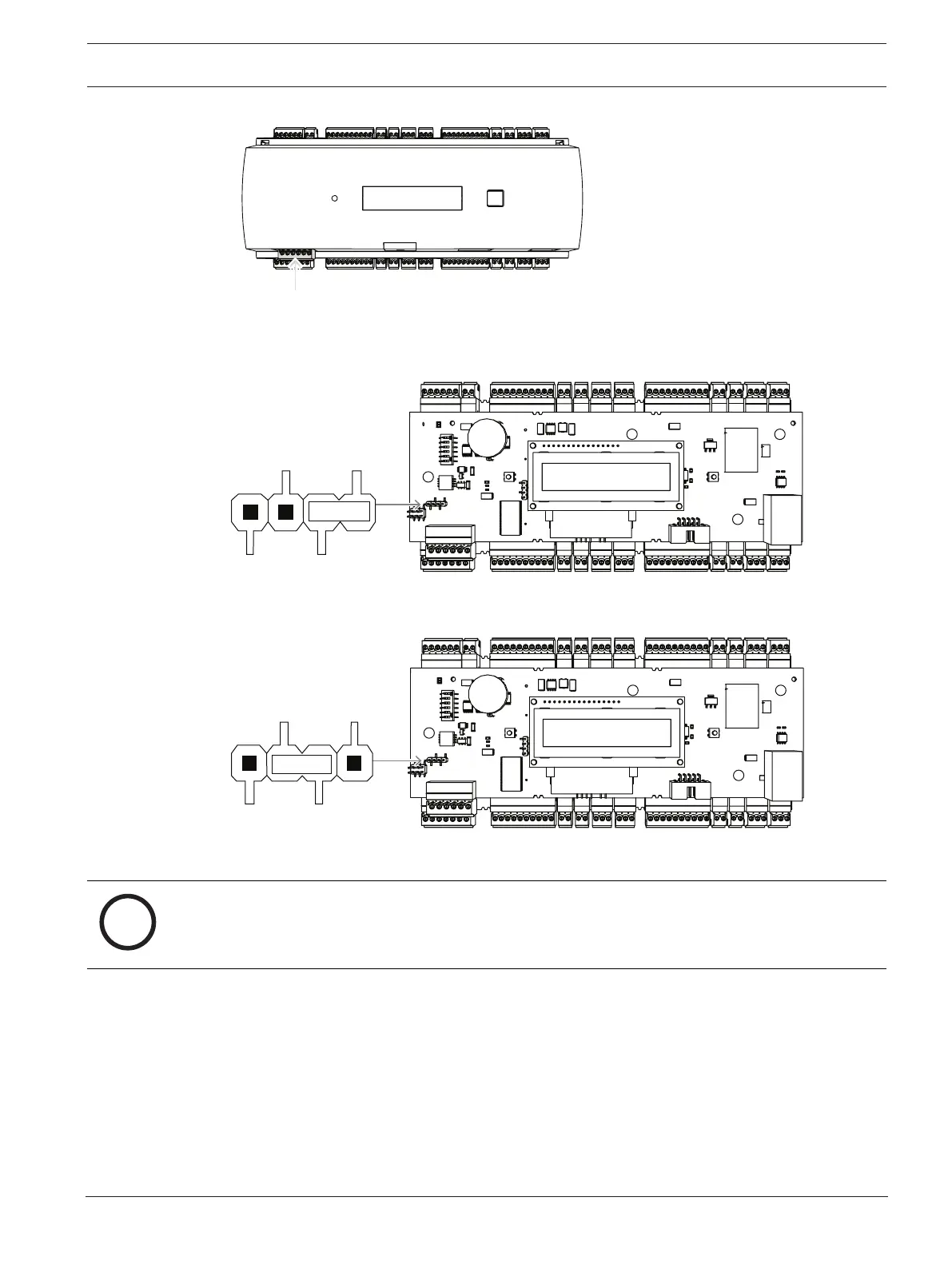

Figure4.11: RS-485 host interface
4.9.1 RS-485 Two Wire Connection
Figure4.12: Setting of the jumpers for RS-485 two wire connections
4.9.2 RS-485 Four Wire Connection
Figure4.13: Settings for RS-485 four wire connection
Select the RS-485 address of the AMC2 controller using the DIP switch.
i
Notice!
If a four-wire connection is used the interface must be set up as a crosslink.
4.9.3 DIP switch selector
DIP switches are used to configure the host settings.
The first four DIP switches for address selection, define the RS-485 address of the AMC2 in an
RS-485 bus system.
Switch 5 selects one of the two different protocols, SDEB and BPA (according to DIN6619).
Switch 6 sets the connection to the host system to either RS-485 or the Project-specific
interface (PI).
