Bosch Access Modular Controller 2 User Manual

48 en | Appendices Access Modular Controller 2
2022-11 | V04 |
Guide d'installation
Bosch Security Systems B.V.

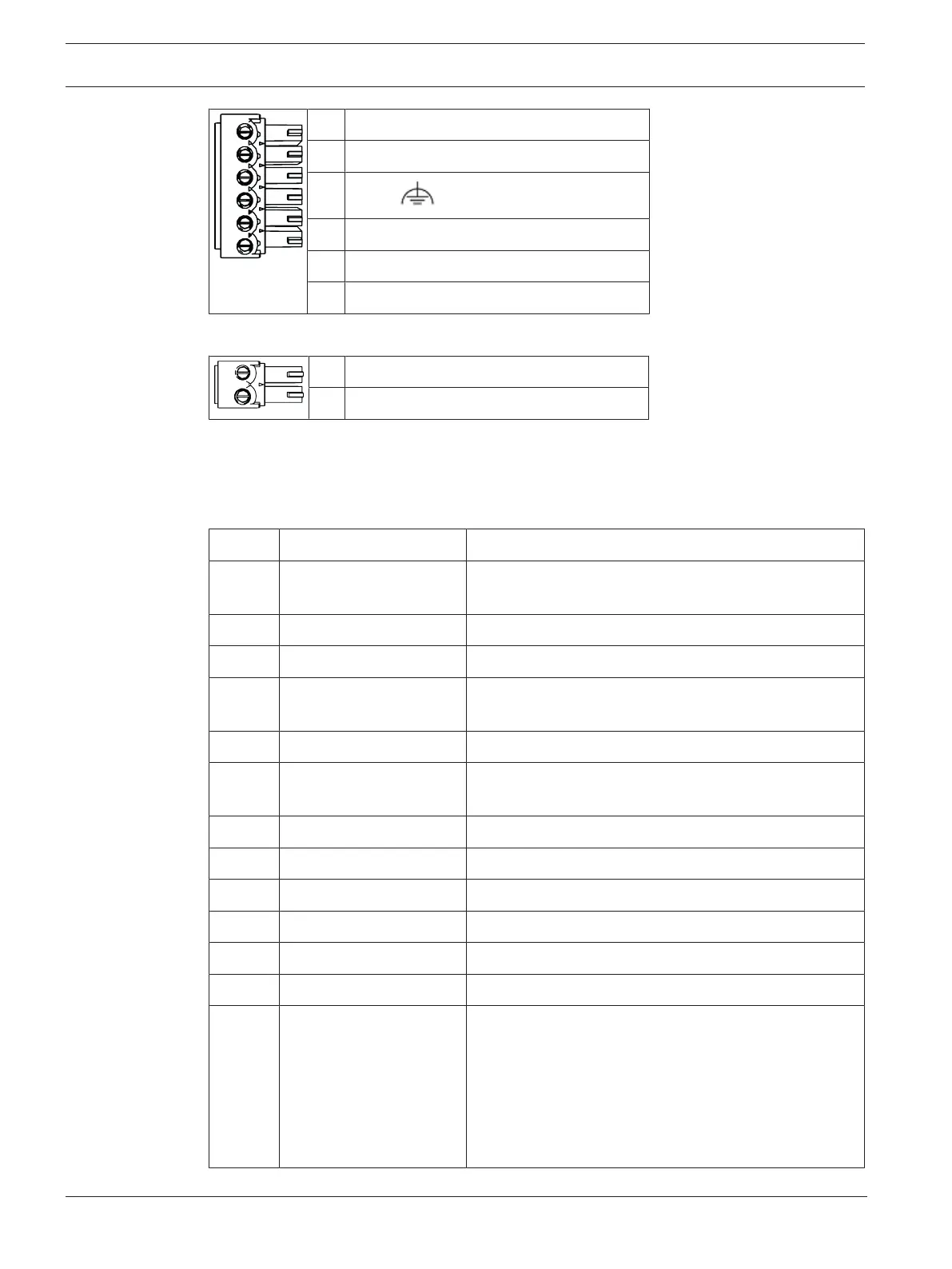

1 Power supply (10V - 30V)
2 Power supply GND
3
Shield
4 Data RxTx+
5 Data RxTx-
6 PAG
Table11.10: Host / Extension interface
1 Tamper Contact, in
2 Tamper Contact, out
Table11.11: External tamper contact
11.2 Status display
11.2.1 Bootloader V00.49
Push Display (Example) Description
0 V00.49 dd.mm.yy Bootloader version by factory
dd.mm.yy release date of the firmware
1 S/N1: 0910024419 Serial number 18 digits - Part1 10 digits
2 S/N2: 22850034 Part 2 - 8 digits
3 11.18 12:24:18 S Current date and time (MM.DD hh:mm:ss)
(S) = daylight saving
4 MAC 001B860012AB Network device address (MAC)
5 N AMC-1234-5678 Network name of the controller (max. 14 char.)
See Configuring Ethernet interface, page 34 .
6 I 192.168.10.18 IP-address of the controller
7 G 192.168.10.255 IP-address of the gateway
8 M 255.255.255.0 Subnetmask
9 H 192.168.10.10 IP-address of the host computer
10 DHCP 1 DHCP-status: 1 = on; 0 = off
11 D 192.168.10.1 IP-address of the DNS server
12 Host: + "C" Host activity:
+ = online
- = offline
"C" = Counter (0 to 9) of the received data
packages from the host interface.
RS 485 Bus connection:
A = Address 1 … H = Address 8
