22 | BEA 460 | Description of uniten
3.4 Special accessories
Information on special accessories can be obtained
from your Bosch dealer.
3.5 Components
3.5.1 BEA 460
NO
cal
AF 1
GF 3
GF 2
O
2
459830-11
Ko
1
2
1
6
5
4
3

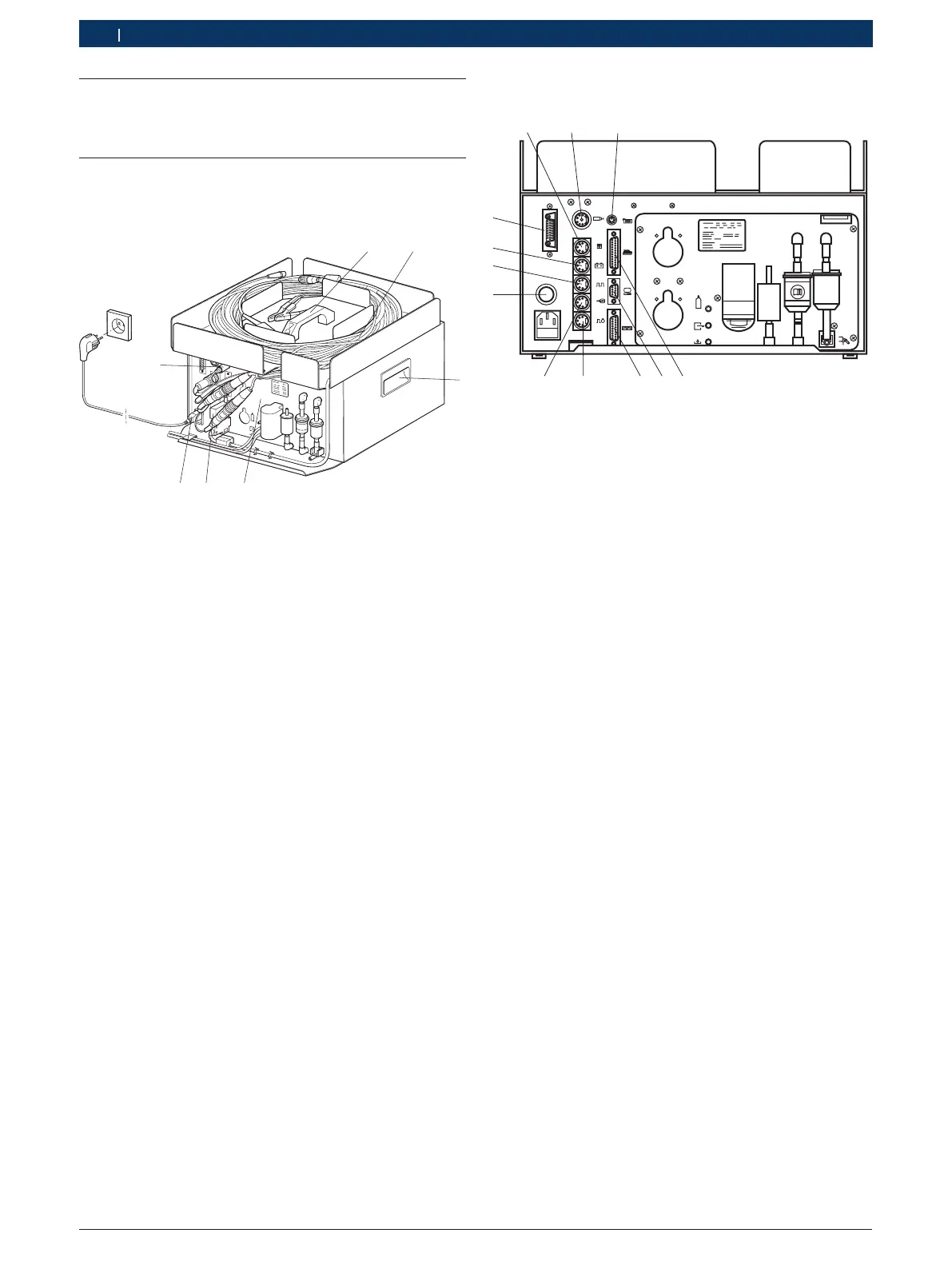

Fig. 1: General view of BEA 460
1 Handles
2 Sensor compartment
3 AMM (gasoline exhaust gas module)
4 Bluetooth serial adapter
5 Power cord
6 PS2 power supply for Bluetooth serial adapter
3.5.2 BEA 460 connections
NO
cal
NO
2
AF 1
GF 3 GF 2
O
2
459830-1Ko
I
0
OBD
1
12
11
10
9
8
7
6
5
4
3
2
Fig. 2: BEA 460 connections
1 Jack (no function)
2 Bluetooth serial adapter or serial connecting cable
3 Jack for RTM 430
4 Jack for TDC sensor or optical sensor
5 Jack for clip-on sensor
6 Power supply On/Off switch
7 Jack for clip-on trigger adapter cable
and term. 1/TD/TN/EST
8 Jack for connecting cable B+/B–
9 Jack for OBD diagnosis cable
*)
10 Jack for oil temperature sensor
11 Jack for timing light (special accessory)
12 PS2 power supply for Bluetooth serial adapter
*)
Depending on version ordered
