Appendix
Control 8313 – 6720859567 (2017/03)
52
Measured
temperature
Display of measured
temperature
Reset Restoring changed values to
the default setting
Measured
flow temperature
Display of measured flow
temperature
Back Return to previous level
Heating circuit data Display data of the system
components and functions
incorporated into the system
Fault Display the status of a function
or a system component
Heating curve Selection or display of the
heating curve.
System information Display of system information.
Boiler characteristics Selection or display of
general boiler data.
DHW cylinder Selection or display of cylinder
data
Module selection Selection or display of modules Set room temperature Shows the set room
temperature
Monitor data Shows set values and actual
values of the system
Holiday Interrupts the heating mode.
The heating circuit operates for
the specified period in setback
mode.
Pause Interrupts the heating mode.
The heating circuit operates for
the specified period in setback
mode.
Party Interruption of setback mode.
The heating circuit operates for
the specified period in heating
mode.
Function test Check of connected system
components
Manual operation via mode Operation of function
(e.g. heating circuit DHW)
via manual settings.
Automatic mode Operation of system according
to the set parameters
Heating Limit (Summer from /
Outdoor Setback)
Selection or display of outside
temperature at which the
heating circuit or function is
switched off
Retro mode
(old/new display version)
Changeover of display view to
the display of the CSM/CFB
control (only possible for
functions that were available in
the CSM/CFB control)
Setback mode
Reduction of set temperature
by an adjustable value
(e.g. if 20 °C is set as the
required room temperature,
with a reduction of 4 °C (K) the
room is only heated up to 16 °C)
Frost protection Function that prevents freezing
of the system
Information menu Display of current parameters
Operation Display the status of a function
or a system component
Off System, system component or
function is switched off.
Burner starts Display number of burner
starts
Advanced functions Additional setting options for
the heating circuit, DHW, etc.
Max. boiler temperature Display of temperature set as
the maximum value
Actuator Status display of mixing valve

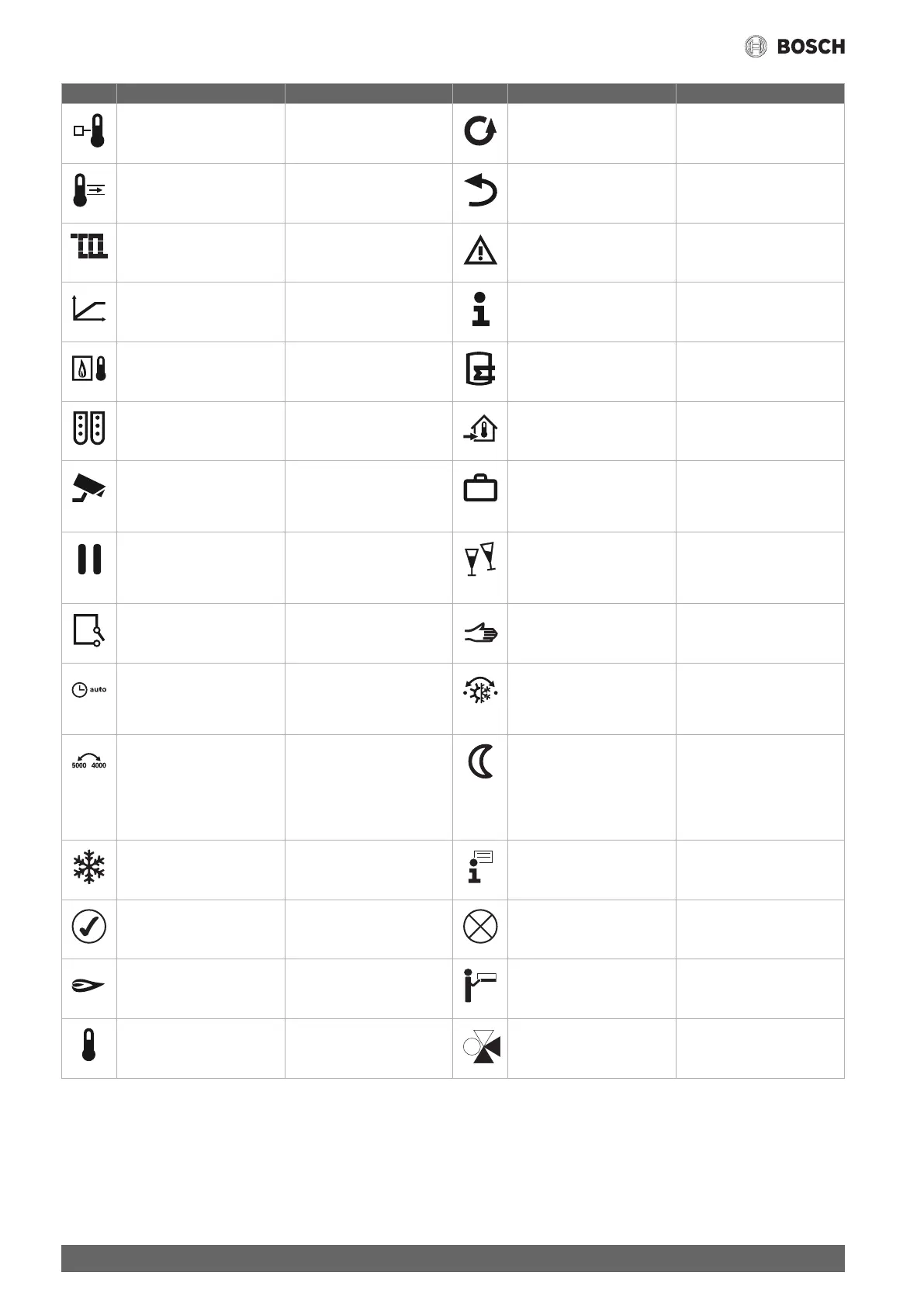

Symbol Name Explanation Symbol Name Explanation
