Pipework connections
11
Compress 5800i AW – 6721862724 (2023/06)

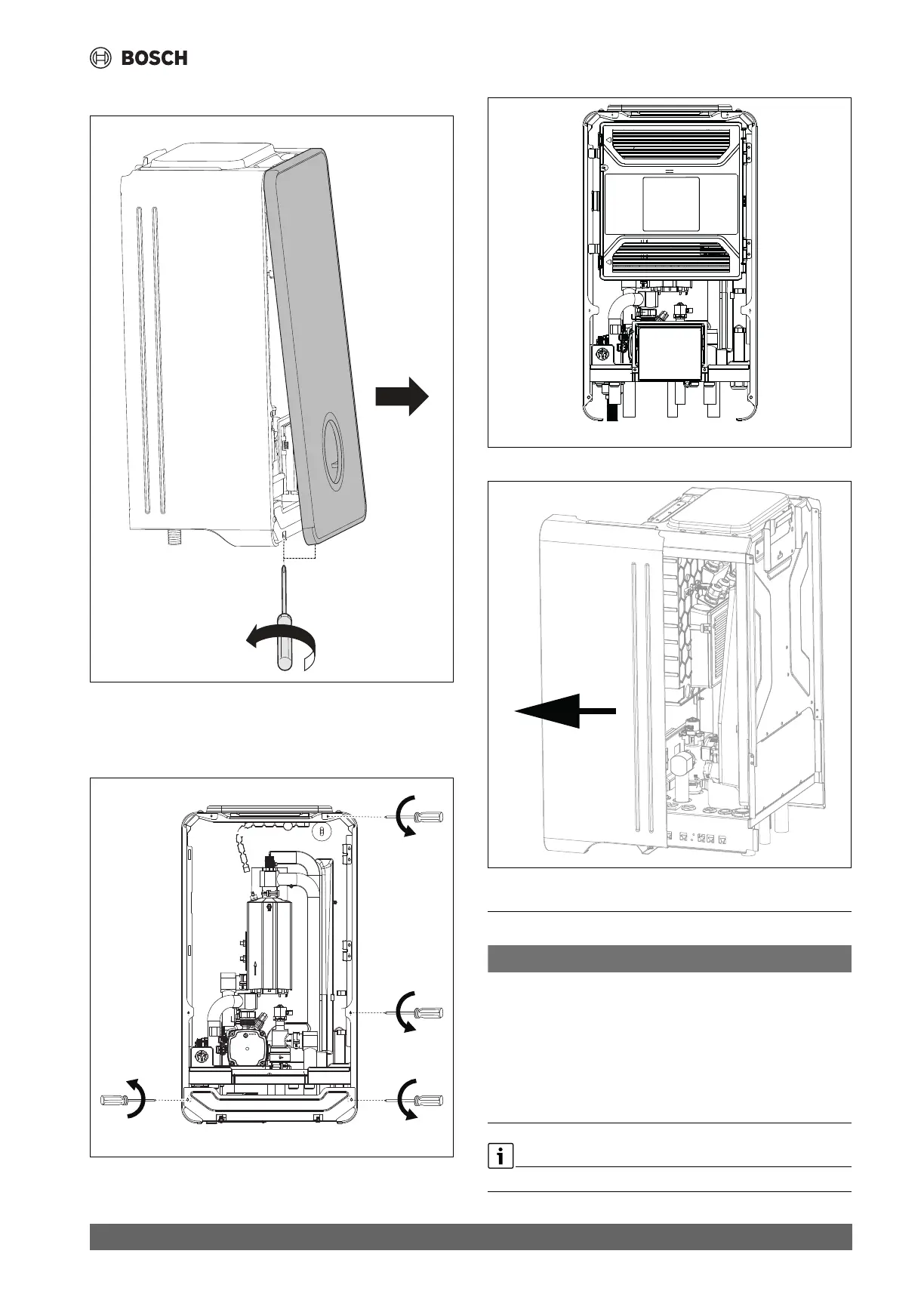

4.6 Remove the front
Fig. 10 Remove the front
4.7 Remove the side cover and lower plate
For easier access to the piping, the lower plate can be detached. Please
note the cable on the back of the plate.
Fig. 11
Fig. 12
Fig. 13 Remove the side cover
5 Pipework connections
NOTICE
Residue in the pipework can damage the system.
Solids, metal/plastic filings, flux and thread tape residue and similar
material can get stuck in pumps, valves and heat exchangers.
▶ Keep foreign bodies from entering the pipework.
▶ Do not leave pipe parts and connections directly on the ground.
▶ When deburring, make sure that no residue remains in the pipe.
▶ Before connecting the heat pump and indoor unit, rinse the pipe
system to remove any foreign bodies.
For easier access, it is recommended to connect the rear pipes first.
0010047323-002
0010049188-001
0010046947-001
