Product description
Compress 5800i AW – 6721862724 (2023/06)
6

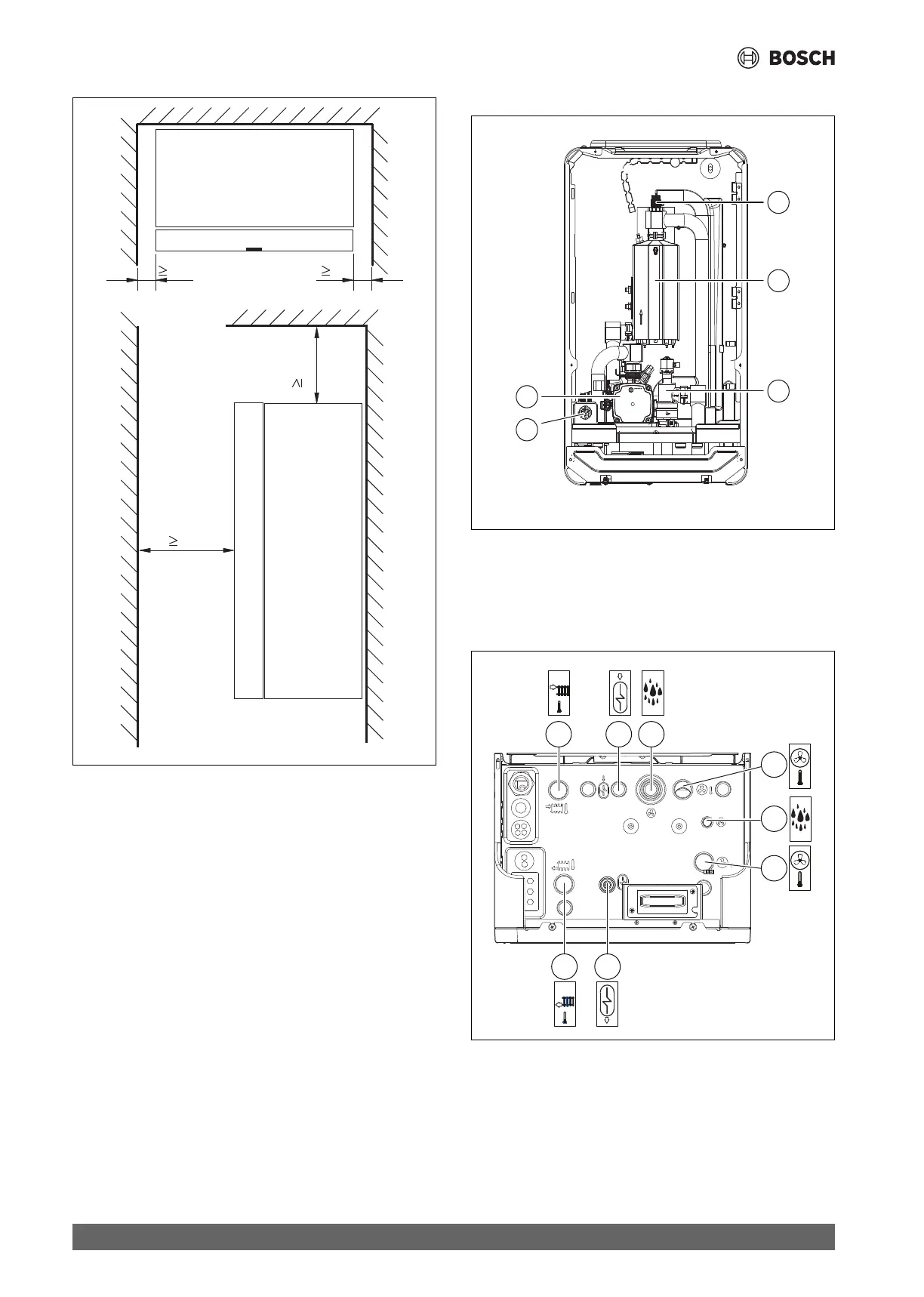

Fig. 4 Minimum clearances to surrounding walls or parts (mm)
2.7 Product Overview
Fig. 5 Component parts
[1] Manual purge valve
[2] Electric heater
[3] Heating/DHW 3-way valve
[4] Compound gauge
[5] Circulation pump
Fig. 6 Pipework connections
[1] Return line from water heater
[2] Return line from the heating system
[3] Flow line to the heating system
[4] Flow line to the water heater
[5] Condensation drain
[6] Heat transfer medium in from heat pump
[7] Overpressure discharge of the pressure relief valve
[8] Heat transfer medium out to heat pump
800
50 50
0010045256-001
550
1
2
5
4
3
0010038947-003
0010049172-001
12
3 4 5
6
8
7
